REAR LICENSE PLATE LAMP

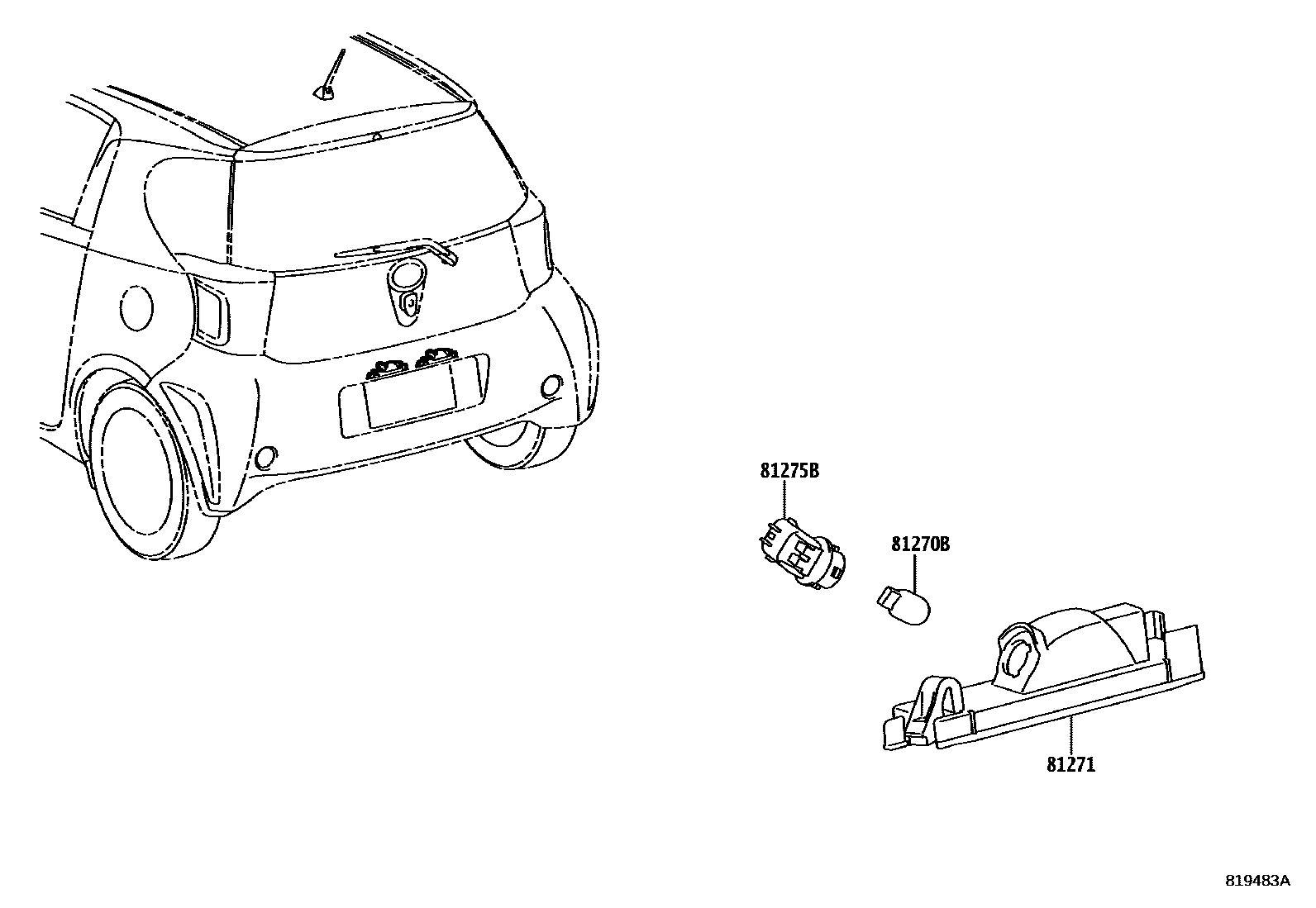

Parts diagram

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2i201209

81271LENS, LICENSE PLATE LAMP

main81271-52020×2i201209-201212

81275BSOCKET PLUG, LICENSE PLATE LAMP

main90075-60005×2i201209

3 parts on this diagram · 1 diagram in section
