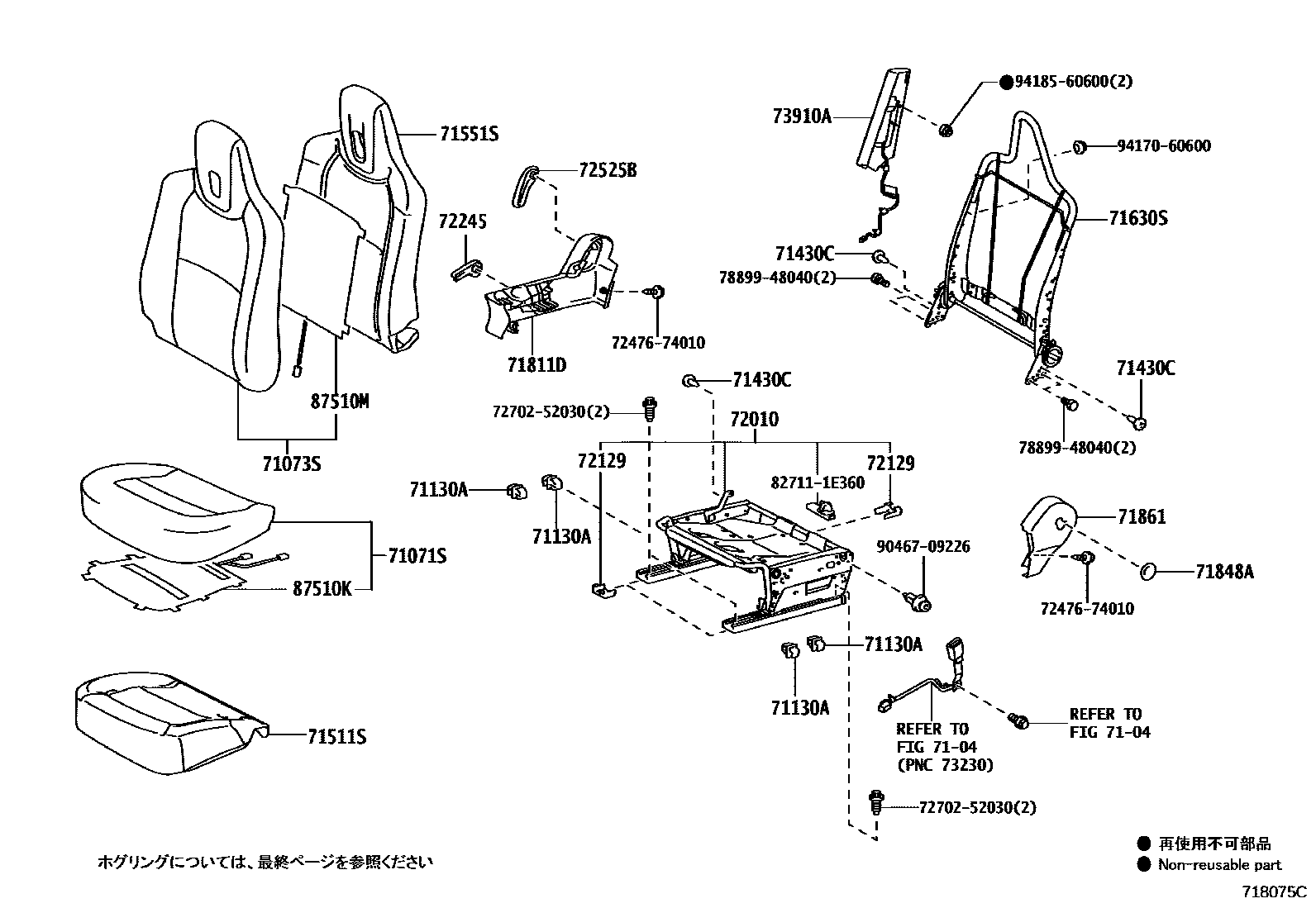

FRONT SEAT & SEAT TRACK

0001 1������ 0002 1������� 0003 1�������

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-74230-A0iKPJ10201209-201212

BLACK/WHITE,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-74050-C0iKPJ10201209-201212

BLACK/WHITE,TRIM2#

71130ACLIP, FRONT SEAT LEG

main90467-12036×8iKPJ10201209

71430CCLIP

main90467-08188×6iKPJ10201209

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-74010iKPJ10201209-201212

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-74010iKPJ10201209

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-74080iKPJ10201209

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-74050-C0iKPJ10201209-201212

BLACK,TRIM2#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-74020-C0iKPJ10201209-201212

BLACK,TRIM2#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-74050-C0iKPJ10201209-201212

BLACK,TRIM2#

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-74050iKPJ10201209

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-74010×6iKPJ10201209

72245LEVER, SEAT TRACK LOCK OPEN, RH

main72245-74020-C0iKPJ10201209-201212

BLACK,TRIM2#

72525BHANDLE, RECLINING ADJUSTER RELEASE, RH

main72507-74010-C0iKPJ10201209-201212

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-74010iKPJ10201209-201211

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-74110iKPJ10201209

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-74040iKPJ10201209

7247674010SCREW, HORIZONTAL JACK, INNER

main72476-74010

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

7889948040BOLT, FRONT SEAT

main78899-48040

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9046709226

main90467-09226

9417060600

main94170-60600

9418560600

main94185-60600

25 parts on this diagram · 3 diagrams in section
