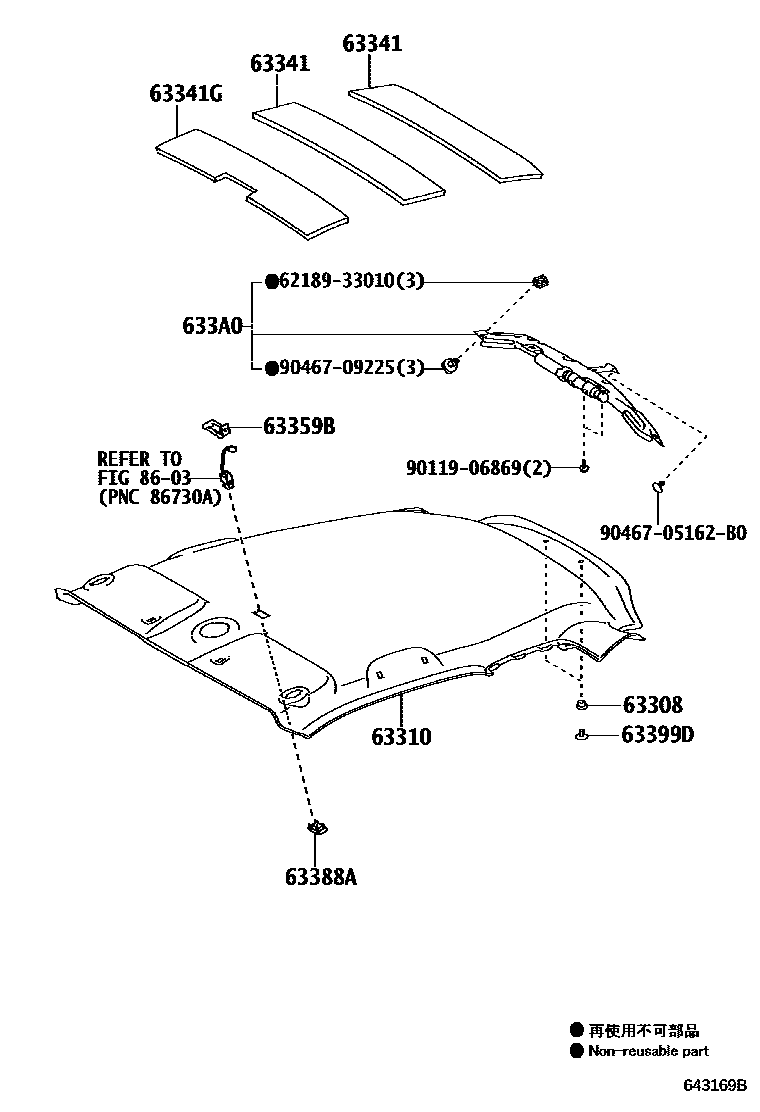

ROOF HEADLINING & SILENCER PAD

63308RETAINER SUB-ASSY, GARNISH MALE

main63308-74010×2iKPJ10201209

63310HEADLINING ASSY, ROOF

main63310-74030-B0iKPJ10201209-201212

GRAY,TRIM2#

63341PAD, ROOF SILENCER, NO.1

main63341-74020×2iKPJ10201209

63341GPAD, ROOF SILENCER

main63341-74030iKPJ10201209

63359BCOVER, ROOF HEADLINING RETAINER

main63359-52040iKPJ10201209-201212

63388ACOVER, ROOF HEADLINING HOLDER

main63388-52010-B1iKPJ10201209-201212

GRAY,TRIM2#

63399DCLIP, ROOF HEADLINING

main63399-74010-B0×2iKPJ10201209-201212

GRAY,TRIM2#

633A0AIRBAG ASSY, REAR WINDOW CURTAIN SHIELD

main633A0-74020iKPJ10201209-201212

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

6218933010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH

main62189-33010

9011906869

main90119-06869

9046705162B0

main90467-05162B0

9046709225

main90467-09225

13 parts on this diagram · 1 diagram in section
