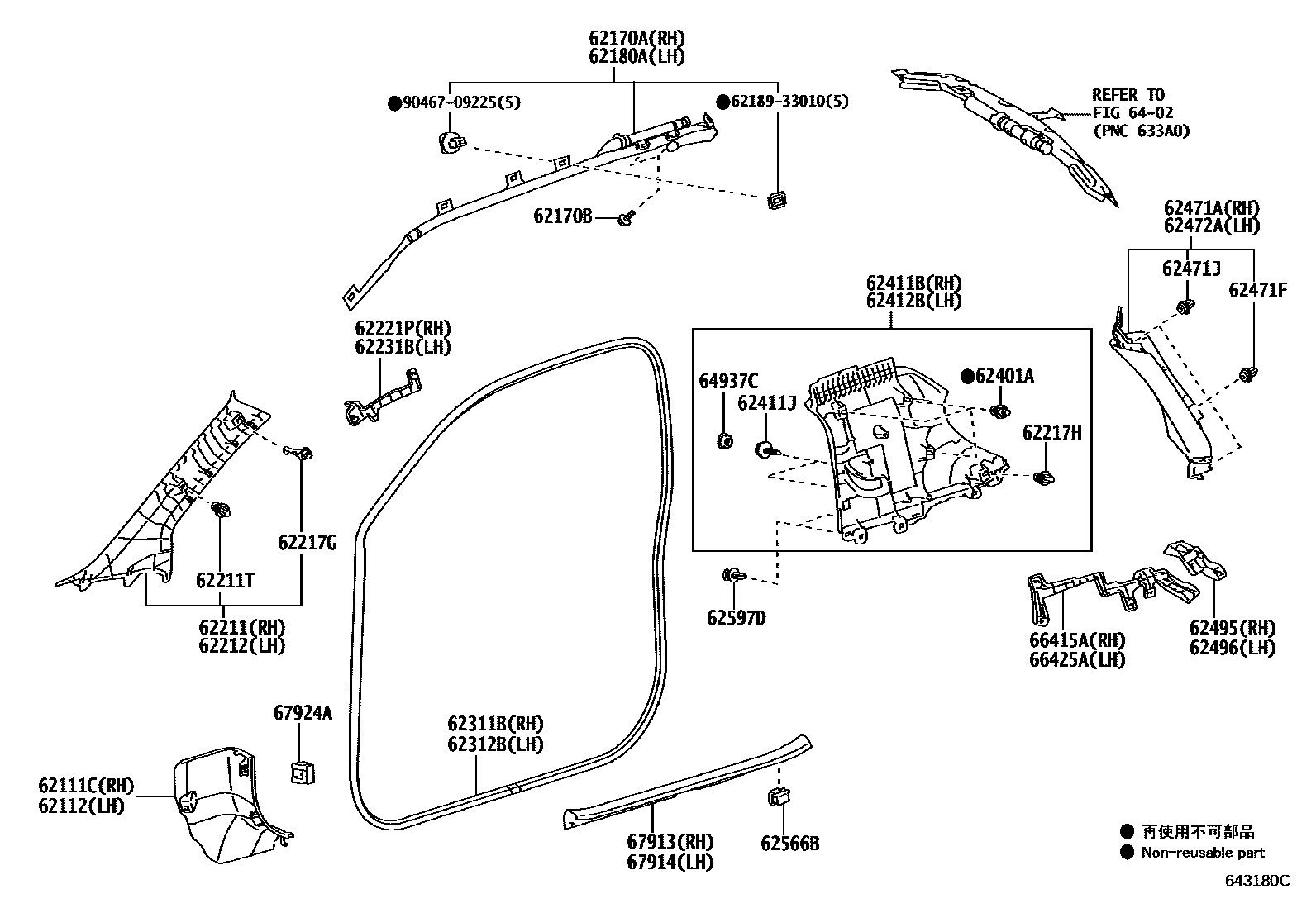

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM2#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
sub62170-74051
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
sub62180-74051
62211GARNISH, FRONT PILLAR, RH
BLACK,TRIM2#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
BLACK,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62221PSPACER, FRONT PILLAR, NO.1 RH
62231BSPACER, FRONT PILLAR, NO.1 LH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411BGARNISH, CENTER PILLAR, UPPER RH
BLACK,TRIM2#
62411JFASTENER(FOR CENTER PILLAR GARNISH)
62412BGARNISH, CENTER PILLAR, UPPER LH
BLACK,TRIM2#
62471AGARNISH, ROOF SIDE, INNER RH
BLACK,TRIM2#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
BLACK,TRIM2#
62495SPACER, ROOF SIDE INNER GARNISH, RH
62496SPACER, ROOF SIDE INNER GARNISH, LH
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62597DCLIP
6402
64937CCAP, TONNEAU COVER HOLDER, NO.1
66415ASPACER, SIDE RAIL, REAR NO.2 RH
66425ASPACER, SIDE RAIL, REAR NO.2 LH
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#
67924ACLAMP, DOOR SCUFF PLATE, NO.2
6218933010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH
main62189-33010
9046709225
main90467-09225
35 parts on this diagram · 1 diagram in section
