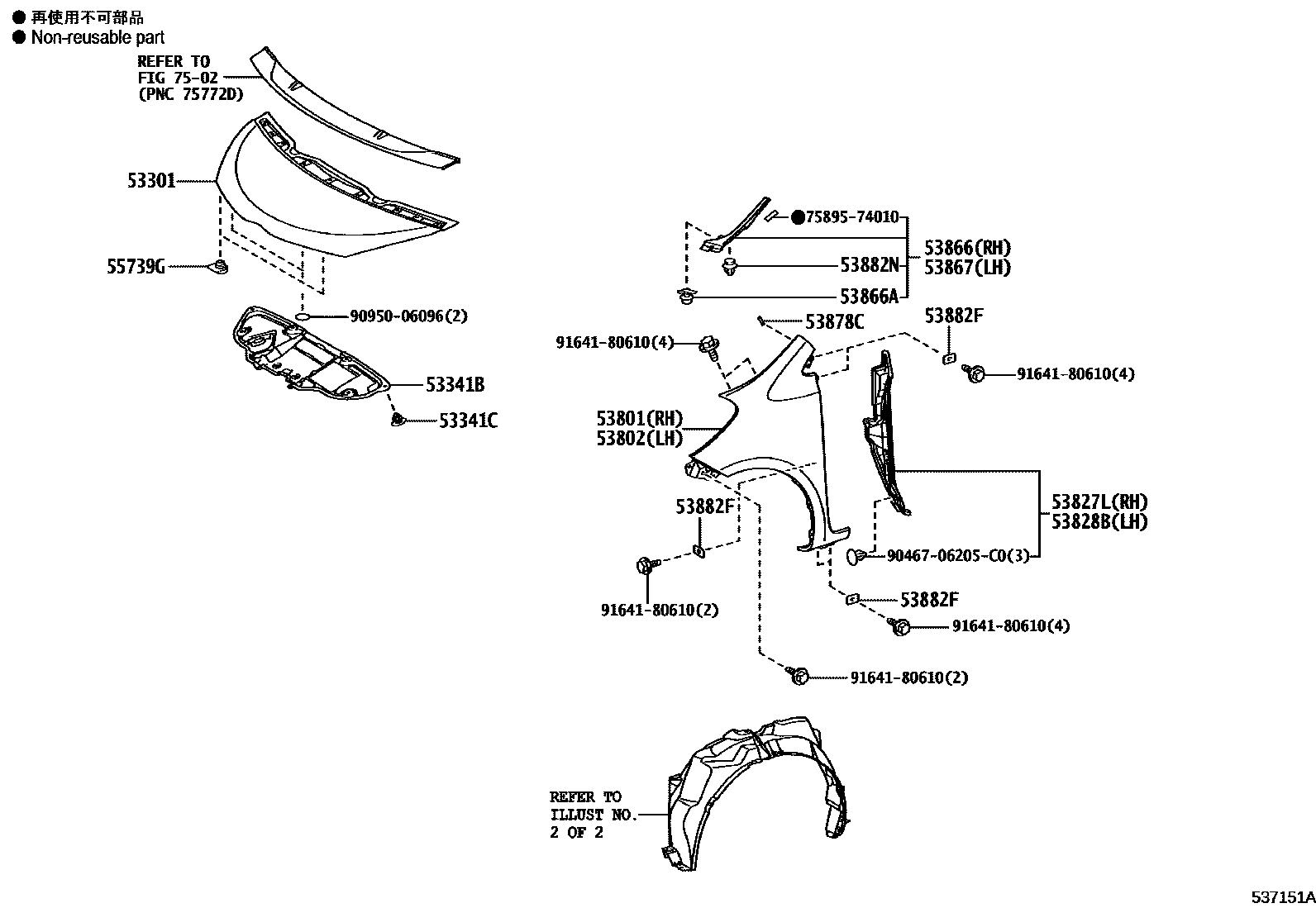

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-74010iKPJ10201209-201212

53341BINSULATOR, HOOD

main53341-74011iKPJ10201209

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×8iKPJ10201209

53801FENDER SUB-ASSY, FRONT RH

main53801-74010iKPJ10201209-201212

53802FENDER SUB-ASSY, FRONT LH

main53802-74010iKPJ10201209-201212

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-74010iKPJ10201209

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-74010iKPJ10201209

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-74010iKPJ10201209

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main55799-74010×2iKPJ10201209

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-74010iKPJ10201209

53878CSPACER, FRONT FENDER

main53878-74020iKPJ10201209

53882FSEAL, FRONT FENDER

main53882-16030×10iKPJ10201209

53882NCLIP(FOR FRONT FENDER SEAL)

main55799-74020×2iKPJ10201209

55739GSTOPPER, HOOD

main55738-52060×2iKPJ10201209

7502FRONT MOULDING

→ Go to FIG 75-02

7589574010RETAINER, LUGGAGE DOOR MOULDING, NO.3

main75895-74010

9046706205C0

main90467-06205C0

9095006096

main90950-06096

9164180610

main91641-80610

19 parts on this diagram · 2 diagrams in section
