HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����������(���) 0002 1����������(�����) 0003 1������ 0004 1���

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

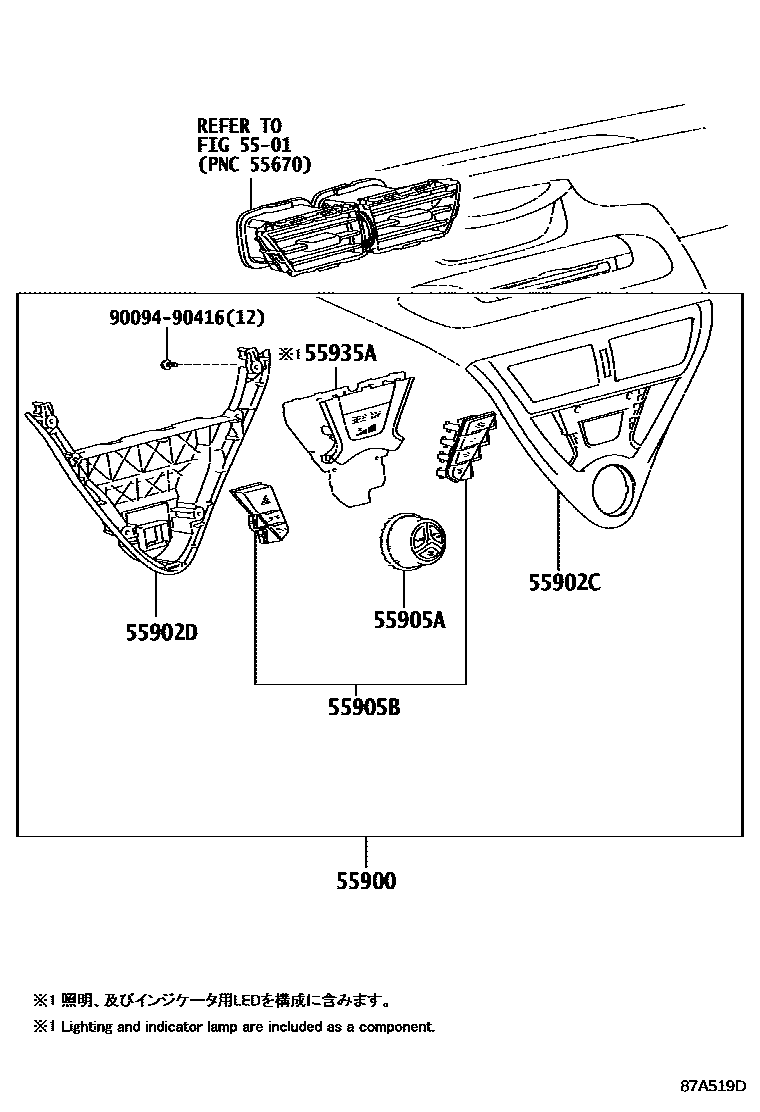

55900CONTROL ASSY, AIR CONDITIONER

main55900-74020-B0iKGJ10,NGJ10..CVFC..(100G,130G); KGJ10..100X200811-201205

main55900-74040-C3iKGJ10,NGJ10..CVFC..(100G,130G)201205-201305

BLACK/SILVER,TRIM7#

main55900-74041-C1iNGJ10..CVFC201405-201603

BLACK,TRIM8#

main55900-74041-C3iKGJ10,NGJ10..CVFC..(100G,130G)201305-201603

BLACK/MID SILVER,TRIM7#

main55900-74040-A0iKGJ10,NGJ10..CVFC..(100G,130G)201001-201205

main55900-74040-C0iKGJ10,NGJ10..CVFC..(100G,130G)200908-201205

main55900-74040-E0iKGJ10,NGJ10..CVFC..(100G,130G)201001-201205

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-74030-B0iKGJ10,NGJ10..CVFC..(100G,130G); KGJ10..100X200811-201205

main55902-74030-C0iKGJ10..100G; NGJ10..CVFC201305-201603

BLACK,TRIM7#; BLACK,TRIM7#,8#

main55902-74030-A0iKGJ10,NGJ10..CVFC..(100G,130G)201001-201205

main55902-74030-E0iKGJ10,NGJ10..CVFC..(100G,130G)201001-201205

55902DPANEL SUB-ASSY, AIR CONDITIONER

main55902-74040-C0iKGJ10,NGJ10..CVFC..(100G,130G); KGJ10..100X200811-201205

main55902-74050-B1iKGJ10,NGJ10..CVFC..(100G,130G)201205-201603

SILVER,TRIM7#

main55902-74050-C1iNGJ10..CVFC201405-201603

BLACK,TRIM8#

main55902-74050-D0iKGJ10,NGJ10..CVFC..(100G,130G)200908-201205

55905AKNOB, HEATER CONTROL

main55905-74010iKGJ10,NGJ10..CVFC..(100G,130G)200811-201603

55905BKNOB, HEATER CONTROL, NO.2

main55905-74020iKGJ10,NGJ10..CVFC..(100G,130G)200811-201305

main55905-74021iKGJ10,NGJ10..CVFC..(100G,130G)201305-201603

55935ACIRCUIT, CENTER CLUSTER MODULE

main55935-74010iKGJ10,NGJ10..CVFC..(100G,130G)200811-201603

9009490416

main90094-90416

8 parts on this diagram · 4 diagrams in section
