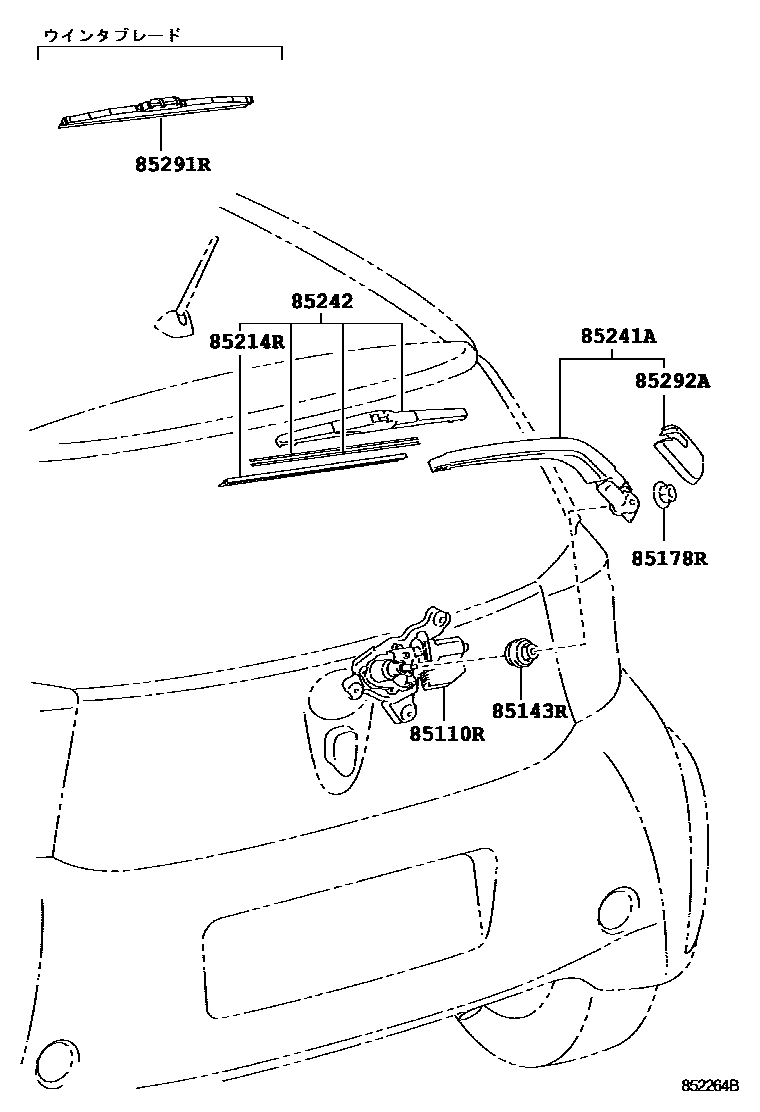

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-74020iKGJ10,NGJ10200811

85143RGROMMET, REAR WIPER MOTOR

main85143-52030iKGJ10,NGJ10200811

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iKGJ10,NGJ10200811-201012

main94151-80600iKGJ10,NGJ10201012

85214RRUBBER, REAR WIPER

main85214-12310iKGJ10,NGJ10200811

85241AARM, REAR WIPER

main85241-74010iKGJ10,NGJ10200811

85242BLADE, RR WIPER

main85242-12090iKGJ10,NGJ10200811

85291RBLADE,REAR WIPER, WINTER

main85291-74010iKGJ10,NGJ10200811

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iKGJ10,NGJ10200811

8 parts on this diagram · 1 diagram in section
