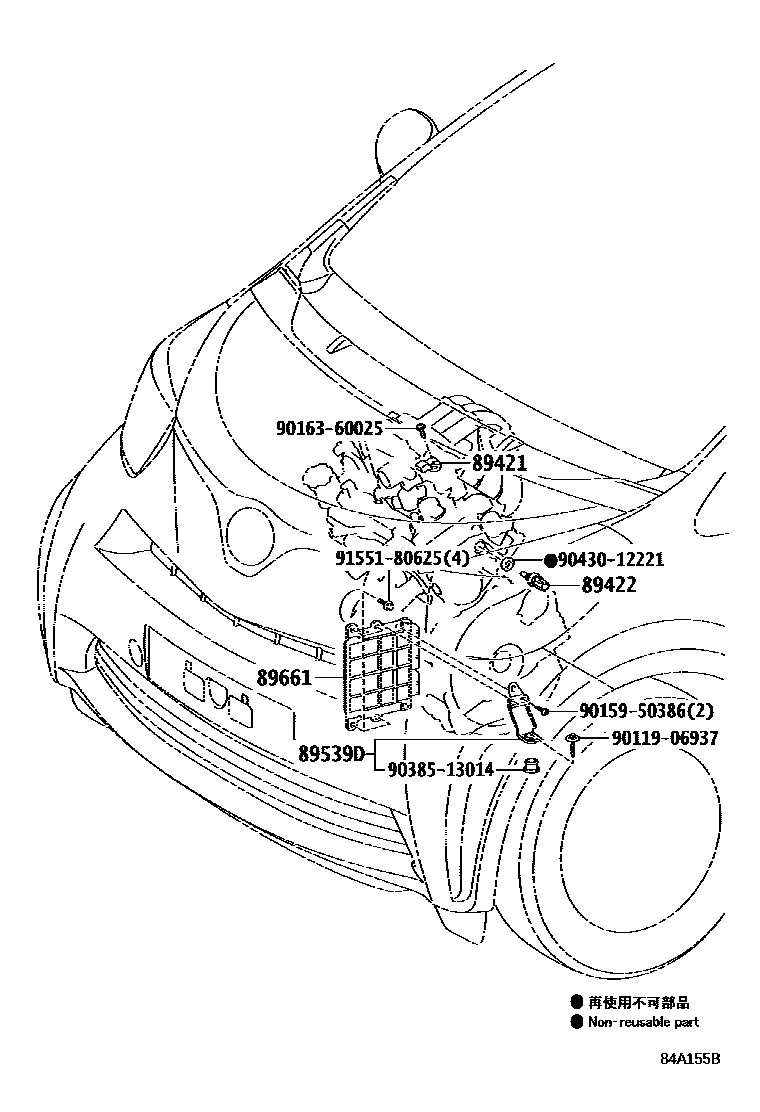

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iNGJ10201504-201603

main89421-52010iNGJ10200811-201503

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iKGJ10,NGJ10200811

89539DBRACKET, COMPUTER

main89539-74010iKGJ10,NGJ10200811

89661COMPUTER, ENGINE CONTROL

main89661-74030iKGJ10200811-200908

main89661-74031iKGJ10200908-201009

main89661-74032iKGJ10201010-201101

main89661-74090iNGJ10200908-201011

main89661-74190iNGJ10..6F201011-201603

main89661-74200iNGJ10..CVFC201011-201205

main89661-74250iKGJ10201101-201305

main89661-74380iKGJ10201305-201603

main89661-74420iNGJ10..CVFC201205-201603

main89661-74070iNGJ10..CVFC200911-201002

main89661-74130iNGJ10201008-201011

main89661-74210iNGJ10..CVFC201011-201012

main89661-74460iNGJ10..6F201208-201209

9011906937

main90119-06937

9015950386

main90159-50386

9016360025

main90163-60025

9038513014

main90385-13014

9043012221

main90430-12221

9155180625

main91551-80625

10 parts on this diagram · 2 diagrams in section
