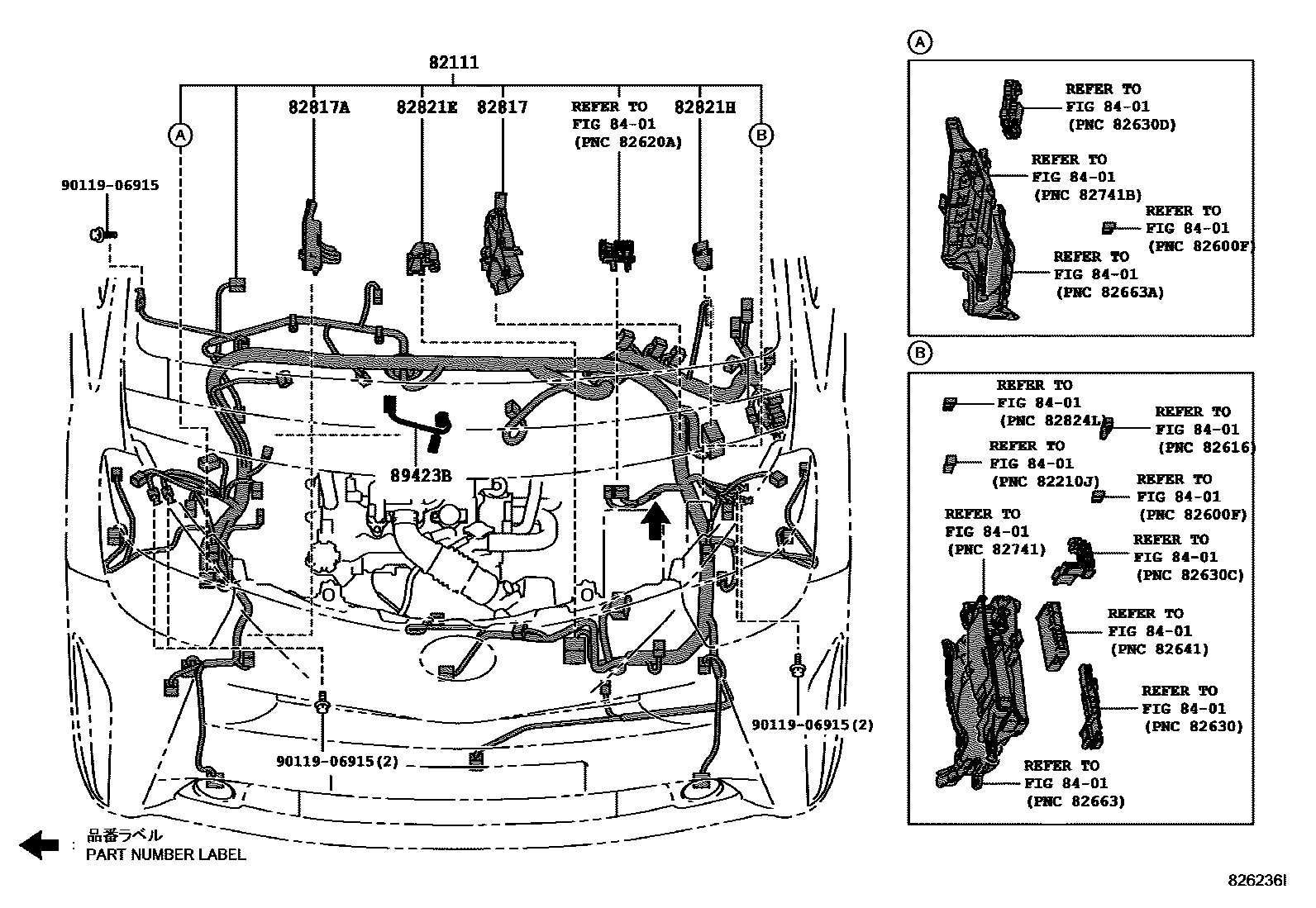

WIRING & CLAMP

0001 1����� ��� 0002 1����� 0003 1����� 0004 1������������ 0005 1��� 0006 1��� & ��� 0007 1��� 0008 1����� & ������ 0009 1���� 1/2 0010 1���� 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-74020supersedes 82111-74050iKGJ10..100G; KGJ10..100X200811-200907

main82111-74021supersedes 82111-74051iKGJ10..100G200907

main82111-74011supersedes 82111-74031iKGJ10..100G201008-201205

main82111-74030supersedes 82111-74051iKGJ10; KGJ10..100X200811-200907

main82111-74031supersedes 82111-74051iKGJ10..100X200907-201205

main82111-74040supersedes 82111-74051iKGJ10; KGJ10..100X200811-200907

main82111-74041supersedes 82111-74051iKGJ10..100X200907-201205

main82111-74050iKGJ10; KGJ10..100X200811-200907

main82111-74051iKGJ10..100G201205

main82111-74290supersedes 82111-74310iNGJ10200908-201008

main82111-74291supersedes 82111-74311iNGJ10..CVFC201008-201205

main82111-74292supersedes 82111-74312iNGJ10..CVFC201205

main82111-74300supersedes 82111-74310iNGJ10200908-201008

main82111-74301supersedes 82111-74311iNGJ10..CVFC201008-201205

main82111-74302supersedes 82111-74312iNGJ10..CVFC201205

main82111-74310iNGJ10200908-201008

main82111-74311iNGJ10..CVFC201008-201205

main82111-74312iNGJ10..CVFC201205

main82111-74510iNGJ10..CVFC200911-201002

main82111-74560supersedes 82111-74590iNGJ10..6F201011

main82111-74570supersedes 82111-74590iNGJ10..6F201011

main82111-74580supersedes 82111-74590iNGJ10..6F201011

main82111-74660iNGJ10..6F201208-201209

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-74010iKGJ10,NGJ10200811

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-74110iKGJ10,NGJ10200811

82821ECOVER, CONNECTOR

main82821-33240iNGJ10..6F;KGJ10..100G201005

main82821-52140iNGJ10..6F201208-201209

82821HCOVER, CONNECTOR

main82821-12570iKGJ10,NGJ10..CVFC..(100X,130G)201008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89423BWIRE, VACUUM SENSOR

main89423-74020iNGJ10..6F201011-201603

9011906915

main90119-06915

8 parts on this diagram · 10 diagrams in section
