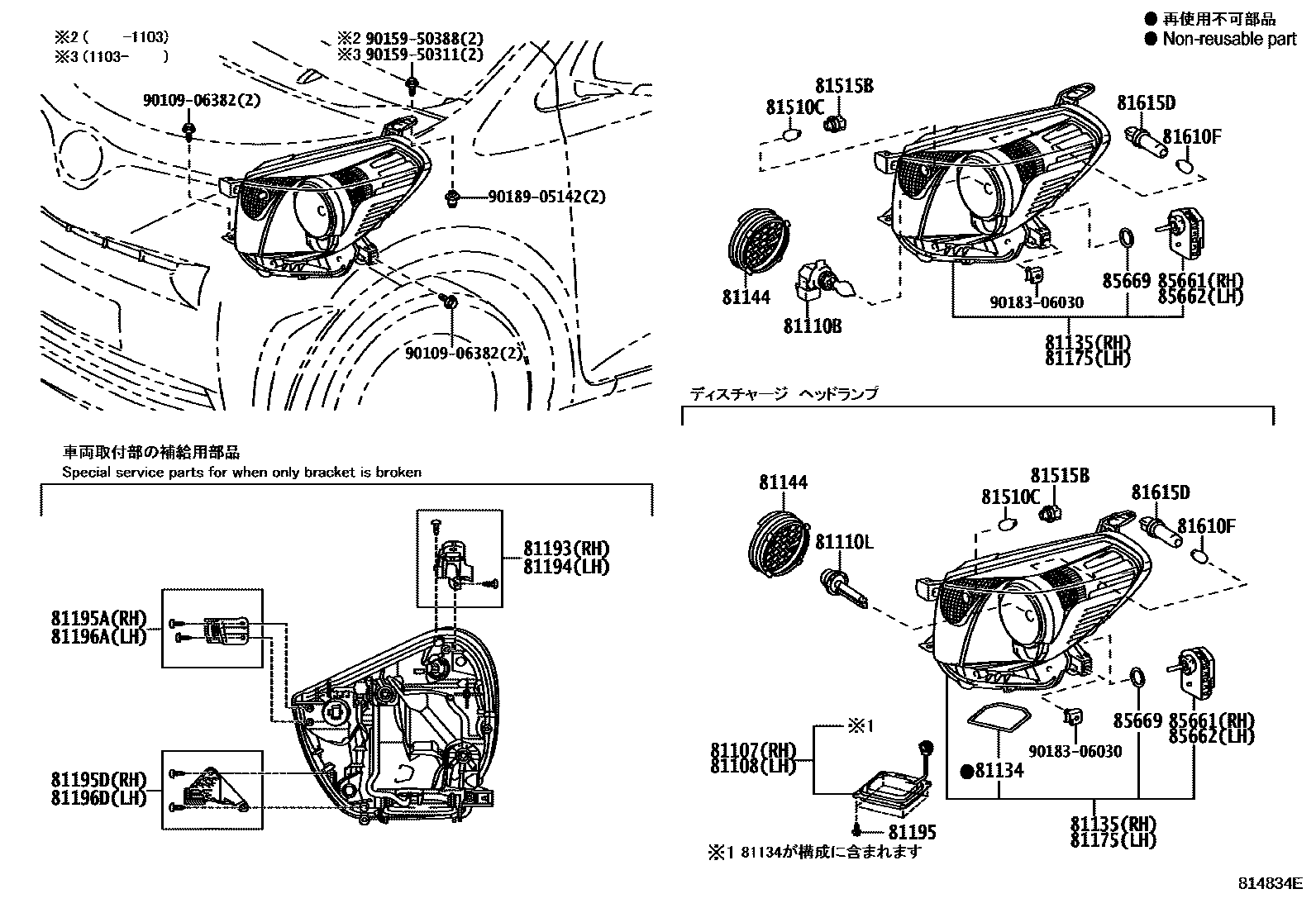

HEADLAMP

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-21150iKGJ10,NGJ10200811-201005

main81107-74060iKGJ10,NGJ10201005

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-21150iKGJ10,NGJ10200811-201005

main81107-74060iKGJ10,NGJ10201005

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13062×2iKGJ10,NGJ10200811

81110LBULB, DISCHARGE HEADLAMP

main90981-20023×2iKGJ10200811-200902

main90981-20024×2iNGJ10..6F201208-201209

81134GASKET, HEADLAMP

main90075-68007iNGJ10..6F201208-201209

81135UNIT ASSY, HEADLAMP, RH

main81130-74010iKGJ10,NGJ10..CVFC..(100X,130G)200811

main81130-74040iNGJ10201405

main81145-74020iKGJ10,NGJ10200811-201005

main81145-74060iKGJ10,NGJ10201005-201408

main81145-74061iKGJ10,NGJ10201408

main81145-74100supersedes 81130-74040iNGJ10..6F201208-201209

81144COVER, HEADLAMP, NO.1

main81135-74010iKGJ10,NGJ10200811

main81175-74010iKGJ10,NGJ10200811

81175UNIT ASSY, HEADLAMP, LH

main81170-74010iKGJ10,NGJ10..CVFC..(100X,130G)200811

main81170-74040iKGJ10..100G; NGJ10..6F201204

main81185-74020iKGJ10,NGJ10200811-201005

main81185-74060iKGJ10,NGJ10201005-201408

main81185-74061iKGJ10,NGJ10201408

main81185-74100supersedes 81170-74040iNGJ10..6F201208-201209

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-74010iKGJ10,NGJ10200811

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-74010iKGJ10,NGJ10200811

81195SCREW, HEADLAMP

main90075-02056×8iNGJ10..6F201208-201209

main90075-02727×8iKGJ10,NGJ10200811-200912

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-74010iKGJ10,NGJ10200811

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-74030iKGJ10,NGJ10200811

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-74010iKGJ10,NGJ10200811

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-74030iKGJ10,NGJ10200811

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iKGJ10,NGJ10200811

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iKGJ10,NGJ10200811

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iKGJ10,NGJ10200811

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iKGJ10,NGJ10200811

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020iNGJ10..6F201208-201209

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12020supersedes 85661-12010iKGJ10,NGJ10200811

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iKGJ10,NGJ10200811

9010906382

main90109-06382

9015950311

main90159-50311

9015950388

main90159-50388

9018306030

main90183-06030

9018905142

main90189-05142

27 parts on this diagram · 1 diagram in section
