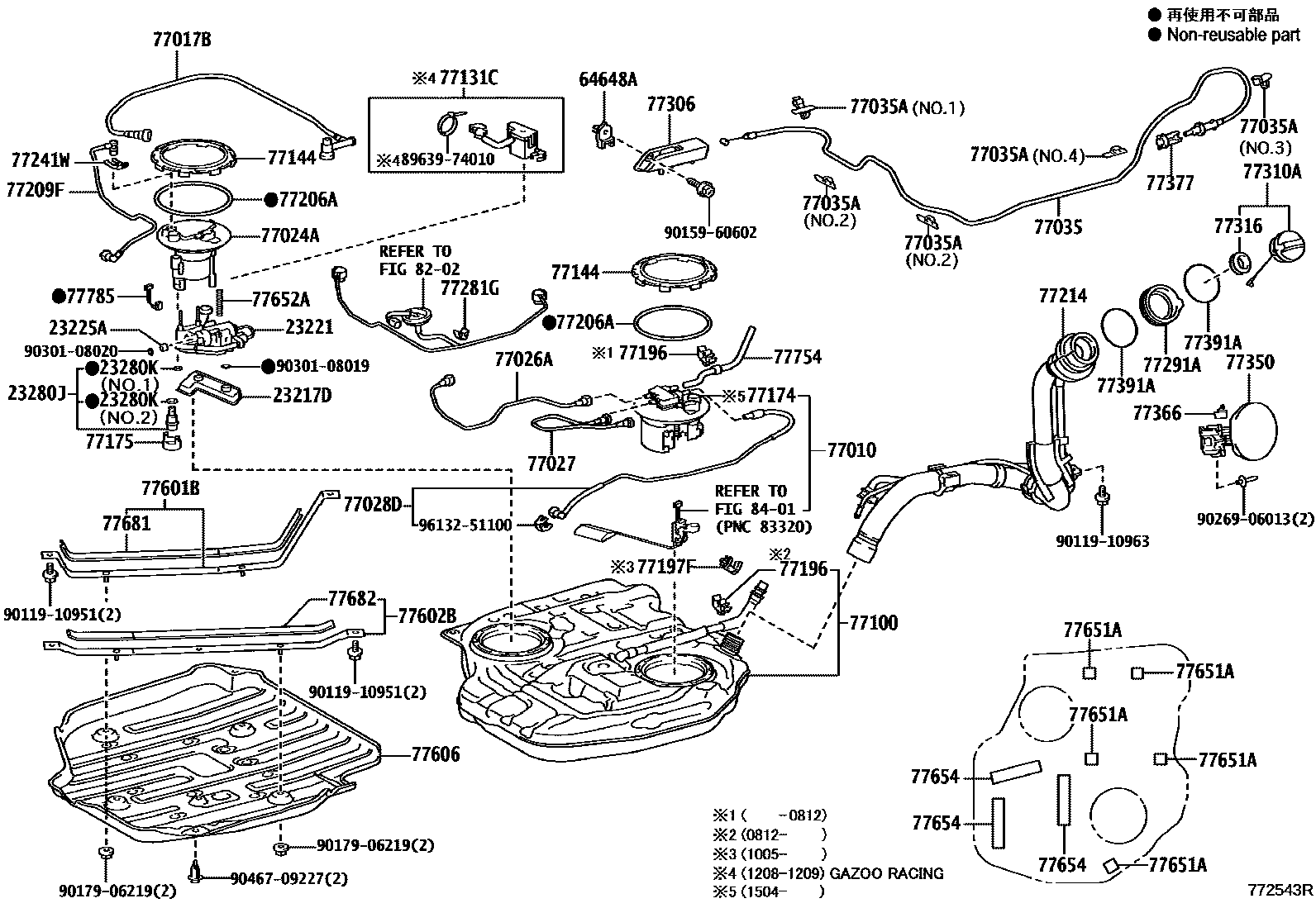

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
64648AGROMMET, LUGGAGE DOOR LOCK OPENER
77010TUBE ASSY, FUEL TANK VENT
77017BTUBE SUB-ASSY, FUEL TANK VENT
77024APLATE SUB-ASSY, FUEL SUCTION
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77028DTUBE SUB-ASSY, FUEL EMISSION, REAR
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77197FCLAMP, EVAPORATION VENT TUBE, NO.2
77206AGASKET (FOR FUEL TANK SUCTION TUBE)
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77214PIPE, FUEL TANK FILLER
77281GCLAMP, FUEL HOSE
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391ARING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77654CUSHION, FUEL TANK, NO.2
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8963974010WIRE, BRAKE CONTROL
main89639-74010
9011910951
main90119-10951
9011910963
main90119-10963
9015960602
main90159-60602
9017906219
main90179-06219
9026906013
main90269-06013
9030108019
main90301-08019
9030108020
main90301-08020
9046709227
main90467-09227
9613251100
main96132-51100
56 parts on this diagram · 2 diagrams in section
