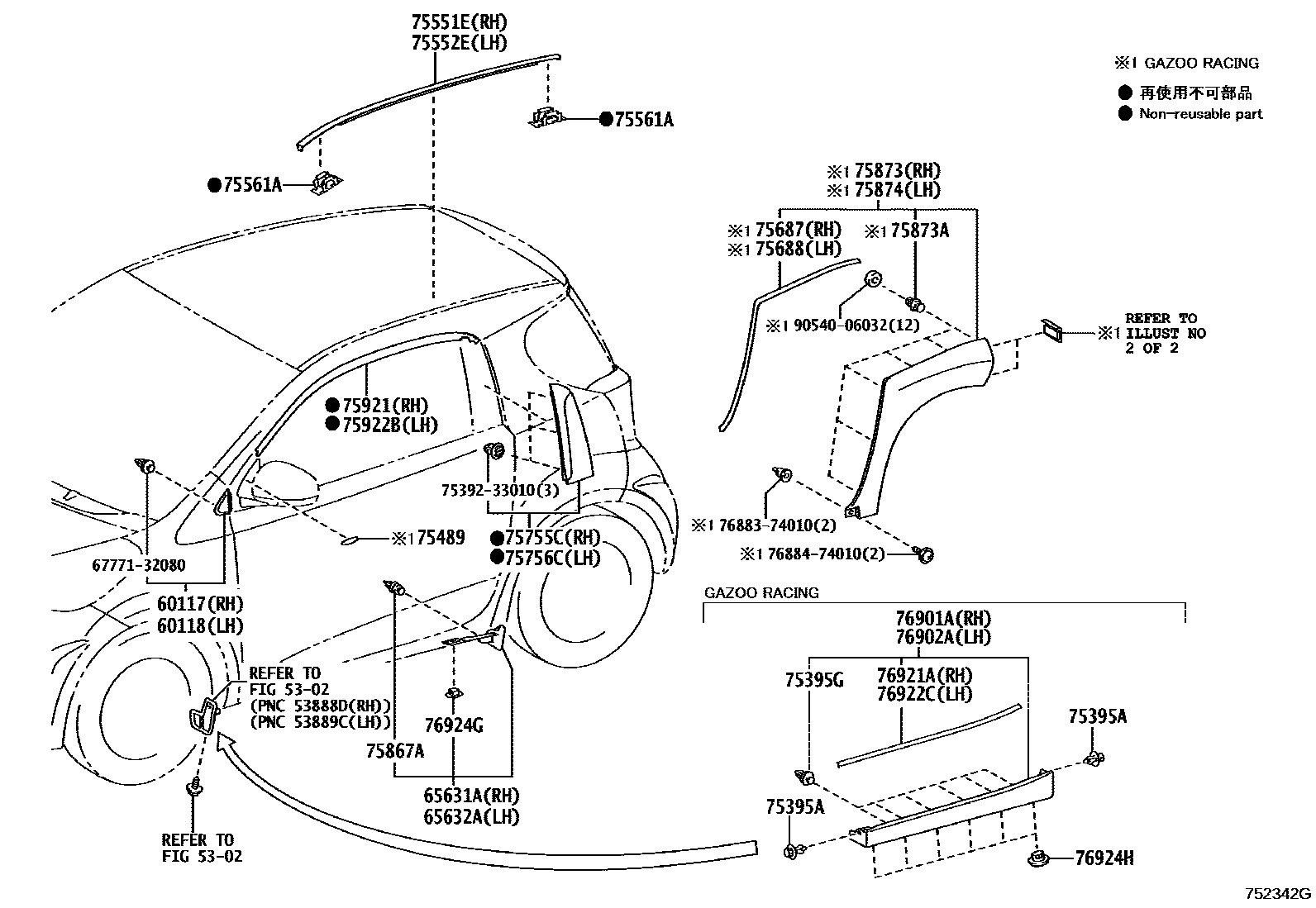

SIDE MOULDING
5302HOOD & FRONT FENDER
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
65631APLATE, REAR WHEEL HOUSE, FRONT RH
65632APLATE, REAR WHEEL HOUSE, FRONT LH
75395ACLIP, OUTSIDE MOULDING, NO.1
75395GCLIP, OUTSIDE MOULDING, NO.1
75489FIN, BODY SIDE STABILIZER AERO DYNAMIC
75551EMOULDING, ROOF DRIP SIDE FINISH, RH
75552EMOULDING, ROOF DRIP SIDE FINISH, LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75687PROTECTOR, QUARTER MOULDING, LOWER REAR RH
75688PROTECTOR, QUARTER MOULDING, LOWER REAR LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75867ACLIP, ROCKER PANEL MOULDING
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75873ACLIP (FOR QUARTER OPENING MOULDING)
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
75921TAPE, BLACK OUT, NO.1 RH
75922BTAPE, BLACK OUT, NO.1 LH
76901AMUDGUARD SUB-ASSY, SIDE, RH
76902AMUDGUARD SUB-ASSY, SIDE, LH
76921APROTECTOR, SIDE MUDGUARD, NO.1
76922CPROTECTOR, SIDE MUDGUARD, NO.2
76924GRETAINER, ROCKER PANEL MOULDING
76924HRETAINER, SIDE MUDGUARD, NO.2
6777132080WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32080
7539233010RETAINER, OUTSIDE MOULDING
main75392-33010
7688374010PROTECTER, REAR SPOILER, NO.7 RH
main76883-74010
7688474010PROTECTER, REAR SPOILER, NO.7 LH
main76884-74010
9054006032
main90540-06032
32 parts on this diagram · 2 diagrams in section
