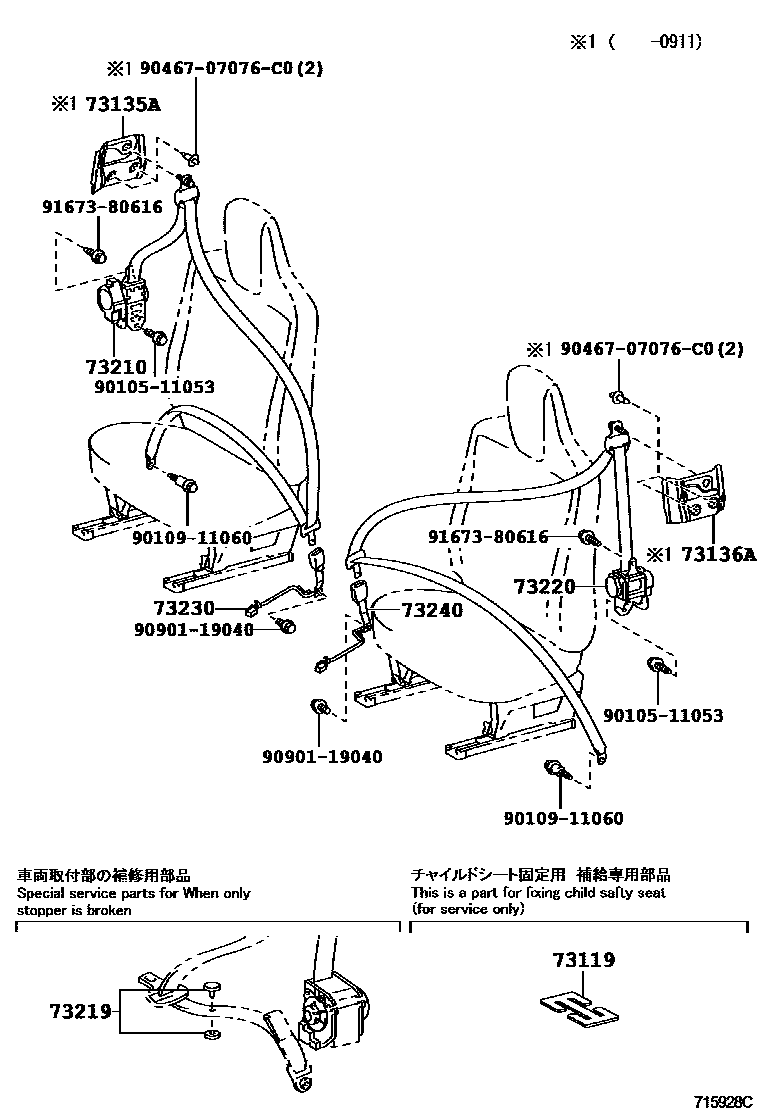

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� ��� 0002 1�� ���

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iKGJ10,NGJ10201208

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73135-74010iKGJ10,NGJ10200811-200911

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73136-74010iKGJ10,NGJ10200811-200911

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-74010-C2iKGJ10200811-200908

BLACK,TRIM4#

main73210-74030-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC200908-201204

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,4#,5#,8#

main73210-74031-C0iKGJ10..100G; KGJ10..100X; NGJ10..6F; NGJ10..CVFC201205-201603

BLACK,TRIM1#; BLACK,TRIM1#,7#,8#; BLACK,TRIM7#; BLACK,TRIM7#,8#

73219STOPPER, TONGUE PLATE

main73219-33010iKGJ10,NGJ10201012

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-74020-C2iKGJ10..100G; KGJ10..100X200811-201204

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,8#

main73220-74021-C2iKGJ10..100G; KGJ10..100X; NGJ10..6F; NGJ10..CVFC201205-201301

BLACK,TRIM1#; BLACK,TRIM1#,7#,8#; BLACK,TRIM7#; BLACK,TRIM7#,8#

main73220-74022-C2iKGJ10..100G; KGJ10..100X; NGJ10..6F; NGJ10..CVFC201302-201603

BLACK,TRIM1#; BLACK,TRIM1#,7#,8#; BLACK,TRIM7#; BLACK,TRIM7#,8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-74010-C1iKGJ10,NGJ10200811-201005

BLACK,TRIM1#,4#,5#

main73230-74050-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,4#,5#,8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-74020-C1iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,4#,5#,8#

main73230-74170iNGJ10..6F201208-201209

9010511053

main90105-11053

9010911060

main90109-11060

9046707076C0

main90467-07076C0

9090119040

main90901-19040

9167380616

main91673-80616

13 parts on this diagram · 2 diagrams in section
