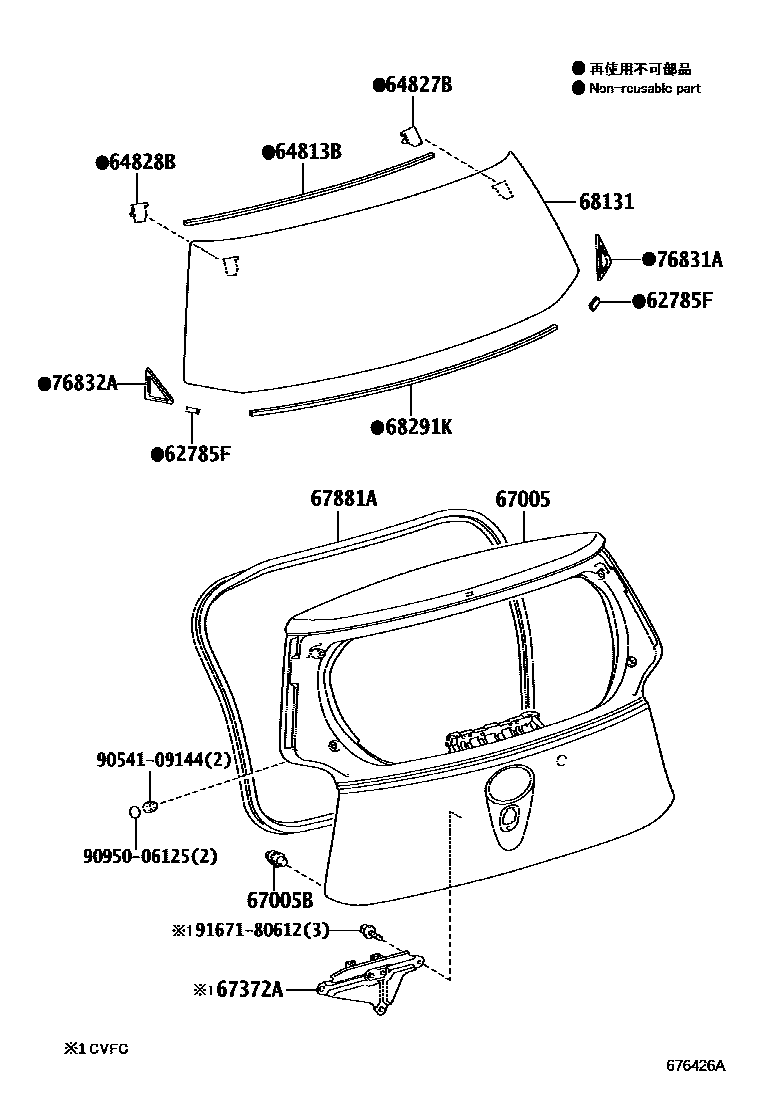

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

62785FSPACER, BACK DOOR GLASS

main62785-12050×2iKGJ10,NGJ10201007

main62785-60030×2iKGJ10,NGJ10200811-201006

64813BDAM, BACK WINDOW GLASS ADHESIVE

main64813-74010iKGJ10,NGJ10200811

64827BCLIP, BACK WINDOW GLASS, RH

main64827-74010iKGJ10,NGJ10200811

64828BCLIP, BACK WINDOW GLASS, LH

main64828-74010iKGJ10,NGJ10200811

67005PANEL SUB-ASSY, BACK DOOR

main67005-74010iKGJ10,NGJ10200811-201603

main67005-74030iNGJ10..6F201208-201209

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142×2iKGJ10,NGJ10200811

67372AWEIGHT, BACK DOOR

main67372-74010iKGJ10200811

main67372-74020iNGJ10..CVFC200908

67881AWEATHERSTRIP, BACK DOOR

main67881-74010iKGJ10,NGJ10200811

68131GLASS, BACK DOOR

main68131-74010iKGJ10,NGJ10200811

68291KDAM KIT, BACK WINDOW GLASS

main64814-74010iKGJ10,NGJ10200811

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-74010iKGJ10,NGJ10200811

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76831-74010iKGJ10,NGJ10200811

9054109144

main90541-09144

9095006125

main90950-06125

9167180612

main91671-80612

15 parts on this diagram · 2 diagrams in section
