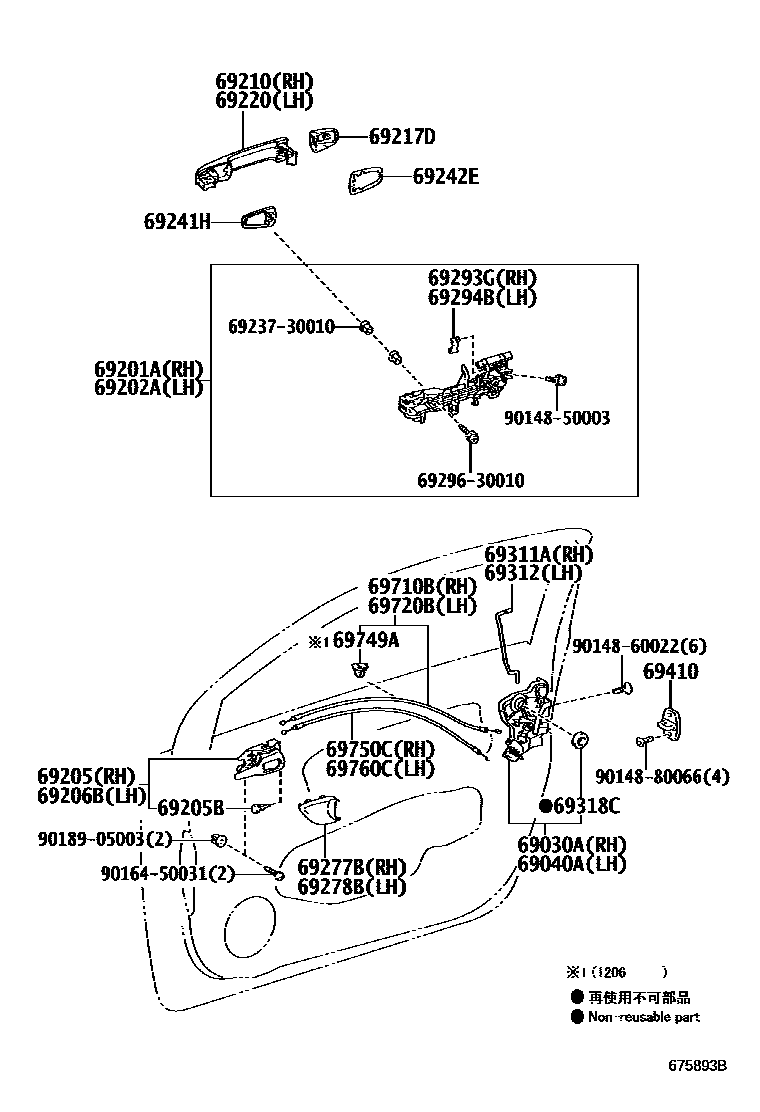

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-42210iKGJ10,NGJ10200811

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-12490iNGJ10..6F;KGJ10..100X200811

main69040-42230iKGJ10,NGJ10..CVFC..(100G,130G)200811

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30070iKGJ10200811-200901

sub69201-30071

main69201-30071iKGJ10,NGJ10200902

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30060iKGJ10200811-200901

sub69202-30061

main69202-30061iKGJ10,NGJ10200902

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12230-C1iNGJ10..CVFC201005-201603

BLACK,TRIM1#,8#

main69205-12230-C1iNGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#

main69205-12230-C1iNGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#,8#

main69205-12230-C1iNGJ10..6F201011-201603

BLACK,TRIM1#,4#,7#,8#

main69205-12230-E2iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iKGJ10,NGJ10200811

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12230-C1iKGJ10..100G201005-201603

BLACK,TRIM1#,4#,5#,7#

main69206-12230-C1iKGJ10..100X201005-201603

BLACK,TRIM1#,8#

main69206-12230-C1iKGJ10..100X201005-201603

BLACK,TRIM1#,4#,5#,7#,8#

main69206-12230-C1iNGJ10..6F201011-201603

BLACK,TRIM1#,4#,7#,8#

main69206-12230-E2iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-74030-A0iKGJ10..100G200811-201603

WHITE PEARL CS.,070

sub69210-74030

main69210-74030-A0iNGJ10..CVFC200908-201603

WHITE PEARL CS.,070 ,2MJ

sub69210-74030

main69210-74030-B0iKGJ10..100G200811-201603

SILVER ME.,1F7 ,2LT

sub69210-74030

main69210-74030-B0iNGJ10..CVFC200908-201603

SILVER ME.,1F7 ,2LT ,2ML

sub69210-74030

main69210-74030-B3iKGJ10..100G200905-201603

GRAY ME.,1G3

sub69210-74030

main69210-74030-B3iNGJ10..CVFC200908-201603

GRAY ME.,1G3 ,2MK

sub69210-74030

main69210-74030-C1iKGJ10,NGJ10..CVFC..(100G,130G)200811-201603

BLACK MC.,209 ,2LR

sub69210-74030

main69210-74030-D1iKGJ10,NGJ10..CVFC..(100G,130G)200811-201603

SUPER RED 5,3P0

sub69210-74030

main69210-74030-E0iKGJ10,NGJ10..CVFC..(100G,130G)200811-201305

BRONZE M.M.,4T3

sub69210-74030

main69210-74030-E2iKGJ10,NGJ10..CVFC..(100G,130G)201008-201603

ORANGE ME.,4R8

sub69210-74030

main69210-74030-F0iKGJ10,NGJ10..100G,130G200811-201005

SILKY GOLD M.M.,5A7

sub69210-74030

main69210-74030-F0iKGJ10,NGJ10..100G,130G200811-201005

sub69210-74030

main69210-74030-F1iKGJ10..100X200902-201008

sub69210-74030

main69210-74030-F1iKGJ10..100X200902-201008

YELLOW,5A6

sub69210-74030

main69210-74030-G0iKGJ10..100X200811-201005

JADE GREEN METALLIC,6V5

sub69210-74030

main69210-74030-G0iKGJ10,NGJ10..100G,130G200811-201005

sub69210-74030

main69210-74030-J4iKGJ10,NGJ10..CVFC..(100G,130G)200811-201603

GRAYISH BLUE ME.,8R3

sub69210-74030

main69210-74030-J5iKGJ10,NGJ10..CVFC..(100G,130G)200902-201205

BLUE ME.,8T7

sub69210-74030

main69210-74030-J5iKGJ10..100X200902-201205

sub69210-74030

main69210-74030-K0iKGJ10,NGJ10..CVFC..(100G,130G)200811-201603

DEEP AMETHYST M.M.,9AH

sub69210-74030

main69211-74020-A0iKGJ10..100X200811-201603

WHITE PEARL CS.,070

sub69211-74020

main69211-74020-A0iNGJ10..6F201011-201603

WHITE PEARL CS.,070 ,2MJ

sub69211-74020

main69211-74020-B0iNGJ10..6F201011-201603

SILVER ME.,1F7 ,2LT ,2ML

sub69211-74020

main69211-74020-B0iKGJ10..100X200811-201603

SILVER ME.,1F7 ,2LT

sub69211-74020

main69211-74020-B4iNGJ10..6F201011-201603

GRAY ME.,1G3 ,2MK

sub69211-74020

main69211-74020-B4iKGJ10..100X200905-201603

GRAY ME.,1G3

sub69211-74020

main69211-74020-C1iNGJ10..6F;KGJ10..100X200811-201603

BLACK MC.,209 ,2LR

sub69211-74020

main69211-74020-D1iNGJ10..6F;KGJ10..100X200811-201603

SUPER RED 5,3P0

sub69211-74020

main69211-74020-E0iNGJ10..6F;KGJ10..100X200811-201305

BRONZE M.M.,4T3

sub69211-74020

main69211-74020-E2iNGJ10..6F;KGJ10..100X201008-201603

ORANGE ME.,4R8

sub69211-74020

main69211-74020-F0iKGJ10..100X200811-201005

SILKY GOLD M.M.,5A7

sub69211-74020

main69211-74020-F1iKGJ10..100X200902-201008

YELLOW,5A6

sub69211-74020

main69211-74020-G0iKGJ10..100X200811-201005

JADE GREEN METALLIC,6V5

sub69211-74020

main69211-74020-J4iNGJ10..6F;KGJ10..100X200811-201603

GRAYISH BLUE ME.,8R3

sub69211-74020

main69211-74020-J6iNGJ10..6F;KGJ10..100X200902-201205

BLUE ME.,8T7

sub69211-74020

main69211-74020-K0iNGJ10..6F;KGJ10..100X200811-201603

DEEP AMETHYST M.M.,9AH

sub69211-74020

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-74010-A0iNGJ10200908-201603

sub69217-74010

main69217-74010-A0iKGJ10200811-201603

sub69217-74010

main69217-74010-B0iKGJ10200811-201603

sub69217-74010

main69217-74010-B0iNGJ10200908-201603

sub69217-74010

main69217-74010-B4iNGJ10200908-201603

sub69217-74010

main69217-74010-B4iKGJ10200905-201603

sub69217-74010

main69217-74010-C1iKGJ10,NGJ10200811-201603

sub69217-74010

main69217-74010-D1iKGJ10,NGJ10200811-201603

sub69217-74010

main69217-74010-E0iKGJ10,NGJ10200811-201305

sub69217-74010

main69217-74010-E2iKGJ10,NGJ10201008-201603

sub69217-74010

main69217-74010-F0iKGJ10,NGJ10200811-201005

sub69217-74010

main69217-74010-F1iKGJ10,NGJ10200902-201008

sub69217-74010

main69217-74010-G0iKGJ10,NGJ10200811-201005

sub69217-74010

main69217-74010-J4iKGJ10,NGJ10200811-201603

sub69217-74010

main69217-74010-J5iKGJ10,NGJ10200902-201205

sub69217-74010

main69217-74010-K0iKGJ10,NGJ10200811-201603

sub69217-74010

main69250-74010-A1iKGJ10200811-201603

sub69250-74010

main69250-74010-A1iNGJ10200908-201603

sub69250-74010

main69250-74010-B0iNGJ10200908-201603

sub69250-74010

main69250-74010-B0iKGJ10200811-201603

sub69250-74010

main69250-74010-B4iKGJ10200905-201603

sub69250-74010

main69250-74010-B4iNGJ10200908-201603

sub69250-74010

main69250-74010-C1iKGJ10,NGJ10200811-201603

sub69250-74010

main69250-74010-D1iKGJ10,NGJ10200811-201603

sub69250-74010

main69250-74010-E1iKGJ10,NGJ10200811-201305

sub69250-74010

main69250-74010-E2iKGJ10,NGJ10201008-201603

sub69250-74010

main69250-74010-F0iKGJ10,NGJ10200811-201005

sub69250-74010

main69250-74010-F1iKGJ10,NGJ10200902-201008

sub69250-74010

main69250-74010-G0iKGJ10,NGJ10200811-201005

sub69250-74010

main69250-74010-J3iKGJ10,NGJ10200811-201603

sub69250-74010

main69250-74010-J7iKGJ10,NGJ10200902-201205

sub69250-74010

main69250-74010-K0iKGJ10,NGJ10200811-201603

sub69250-74010

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-74030-A0iKGJ10..100G200811-201603

WHITE PEARL CS.,070

sub69210-74030

main69210-74030-A0iNGJ10..CVFC200908-201603

WHITE PEARL CS.,070 ,2MJ

sub69210-74030

main69210-74030-B0iNGJ10..CVFC200908-201603

SILVER ME.,1F7 ,2LT ,2ML

sub69210-74030

main69210-74030-B0iKGJ10..100G200811-201603

SILVER ME.,1F7 ,2LT

sub69210-74030

main69210-74030-B3iNGJ10..CVFC200908-201603

GRAY ME.,1G3 ,2MK

sub69210-74030

main69210-74030-B3iKGJ10..100G200905-201603

GRAY ME.,1G3

sub69210-74030

main69210-74030-C1iKGJ10,NGJ10..CVFC..(100G,130G)200811-201603

BLACK MC.,209 ,2LR

sub69210-74030

main69210-74030-D1iKGJ10,NGJ10..CVFC..(100G,130G)200811-201603

SUPER RED 5,3P0

sub69210-74030

main69210-74030-E0iKGJ10,NGJ10..CVFC..(100G,130G)200811-201305

BRONZE M.M.,4T3

sub69210-74030

main69210-74030-E2iKGJ10,NGJ10..CVFC..(100G,130G)201008-201603

ORANGE ME.,4R8

sub69210-74030

main69210-74030-F0iKGJ10..100X200811-201005

SILKY GOLD M.M.,5A7

sub69210-74030

main69210-74030-F0iKGJ10..100X200811-201005

sub69210-74030

main69210-74030-F1iKGJ10,NGJ10..100G,130G200902-201008

sub69210-74030

main69210-74030-F1iKGJ10,NGJ10..100G,130G200902-201008

YELLOW,5A6

sub69210-74030

main69210-74030-G0iKGJ10..100X200811-201005

JADE GREEN METALLIC,6V5

sub69210-74030

main69210-74030-G0iKGJ10,NGJ10..100G,130G200811-201005

sub69210-74030

main69210-74030-J4iKGJ10,NGJ10..CVFC..(100G,130G)200811-201603

GRAYISH BLUE ME.,8R3

sub69210-74030

main69210-74030-J5iKGJ10..100X200902-201205

sub69210-74030

main69210-74030-J5iKGJ10,NGJ10..CVFC..(100G,130G)200902-201205

BLUE ME.,8T7

sub69210-74030

main69210-74030-K0iKGJ10,NGJ10..CVFC..(100G,130G)200811-201603

DEEP AMETHYST M.M.,9AH

sub69210-74030

main69211-74020-A0iKGJ10..100X200811-201603

WHITE PEARL CS.,070

sub69211-74020

main69211-74020-A0iNGJ10..6F201011-201603

WHITE PEARL CS.,070 ,2MJ

sub69211-74020

main69211-74020-B0iNGJ10..6F201011-201603

SILVER ME.,1F7 ,2LT ,2ML

sub69211-74020

main69211-74020-B0iKGJ10..100X200811-201603

SILVER ME.,1F7 ,2LT

sub69211-74020

main69211-74020-B4iNGJ10..6F201011-201603

GRAY ME.,1G3 ,2MK

sub69211-74020

main69211-74020-B4iKGJ10..100X200905-201603

GRAY ME.,1G3

sub69211-74020

main69211-74020-C1iNGJ10..6F;KGJ10..100X200811-201603

BLACK MC.,209 ,2LR

sub69211-74020

main69211-74020-D1iNGJ10..6F;KGJ10..100X200811-201603

SUPER RED 5,3P0

sub69211-74020

main69211-74020-E0iNGJ10..6F;KGJ10..100X200811-201305

BRONZE M.M.,4T3

sub69211-74020

main69211-74020-E2iNGJ10..6F;KGJ10..100X201008-201603

ORANGE ME.,4R8

sub69211-74020

main69211-74020-F0iKGJ10..100X200811-201005

SILKY GOLD M.M.,5A7

sub69211-74020

main69211-74020-F1iKGJ10..100X200902-201008

YELLOW,5A6

sub69211-74020

main69211-74020-G0iKGJ10..100X200811-201005

JADE GREEN METALLIC,6V5

sub69211-74020

main69211-74020-J4iNGJ10..6F;KGJ10..100X200811-201603

GRAYISH BLUE ME.,8R3

sub69211-74020

main69211-74020-J6iNGJ10..6F;KGJ10..100X200902-201205

BLUE ME.,8T7

sub69211-74020

main69211-74020-K0iNGJ10..6F;KGJ10..100X200811-201603

DEEP AMETHYST M.M.,9AH

sub69211-74020

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30110iKGJ10,NGJ10..CVFC200811-200902

main69241-30111iKGJ10,NGJ10200903-201011

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-30090iKGJ10200811-200902

main69242-30091iKGJ10,NGJ10200903-201011

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-74010-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

main69277-74011-C0iKGJ10..100X201005-201603

BLACK,TRIM1#,4#,5#,7#

main69277-74011-C0iKGJ10..100X201005-201603

BLACK,TRIM1#,4#,5#,7#,8#

main69277-74011-C0iKGJ10..100G201005-201603

BLACK,TRIM1#,8#

main69277-74011-C0iNGJ10..6F201011-201603

BLACK,TRIM1#,4#,7#,8#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-74010-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

main69278-74011-C0iNGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#

main69278-74011-C0iKGJ10..100X201005-201603

BLACK,TRIM1#,8#

main69278-74011-C0iKGJ10..100X201005-201603

BLACK,TRIM1#,4#,5#,7#,8#

main69278-74011-C0iNGJ10..6F201011-201603

BLACK,TRIM1#,4#,7#,8#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iKGJ10,NGJ10200811

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iKGJ10,NGJ10200811

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-74010iKGJ10,NGJ10200811

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-74010iKGJ10,NGJ10200811

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iKGJ10,NGJ10200811

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010iKGJ10,NGJ10200811

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-74010iKGJ10,NGJ10200811-201205

sub69710-74011

main69710-74011iKGJ10,NGJ10201206

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-74010iKGJ10,NGJ10200811-201205

sub69710-74011

main69710-74011iKGJ10,NGJ10201206

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-74020iKGJ10,NGJ10201206

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-74010iKGJ10,NGJ10200811-201012

sub69750-74030

main69750-74030iKGJ10,NGJ10201012

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-74010iKGJ10,NGJ10200811-201012

sub69750-74030

main69750-74030iKGJ10,NGJ10201012

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

32 parts on this diagram · 1 diagram in section
