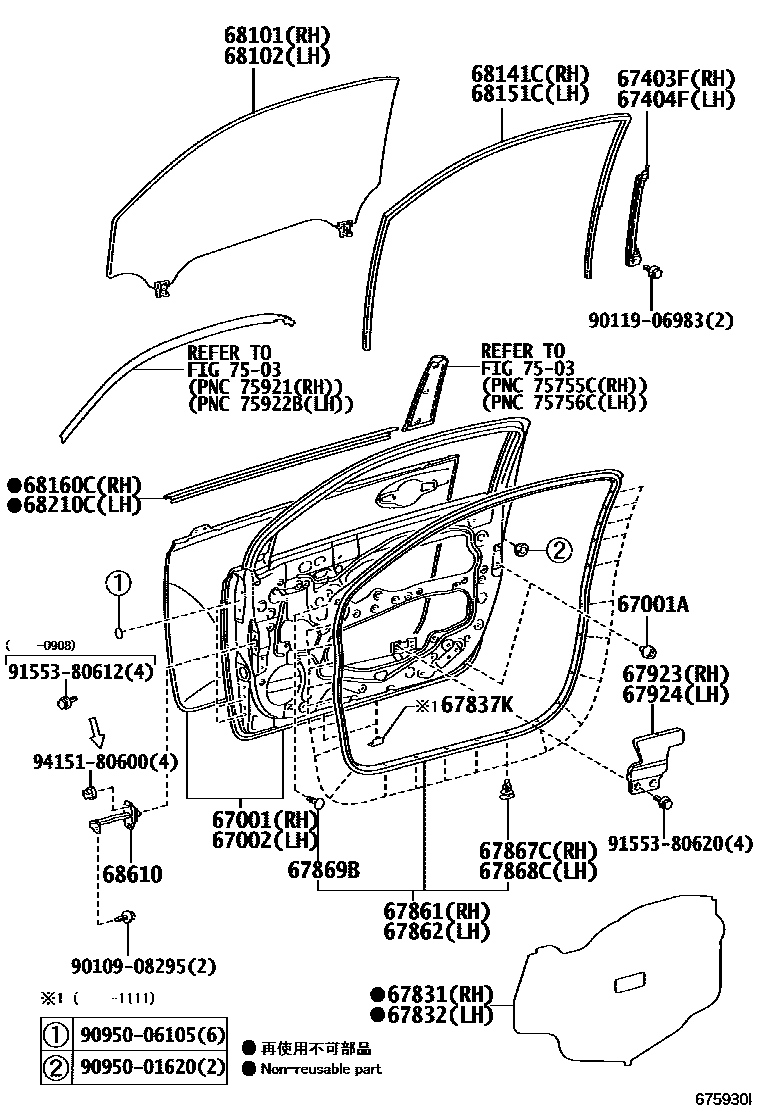

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-74010iKGJ10,NGJ10200811-201206

main67001-74050iKGJ10,NGJ10201206-201603

main67001-74040iNGJ10..6F201208-201209

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iKGJ10,NGJ10200811

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-74010iKGJ10200908-201206

main67002-74050iKGJ10,NGJ10201206-201603

main67002-74040iNGJ10..6F201208-201209

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-74010iKGJ10,NGJ10200811

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-74010iKGJ10,NGJ10200811

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-74010iKGJ10,NGJ10200811-201010

main67831-74020iKGJ10,NGJ10201011

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-74010iKGJ10,NGJ10200811-201010

main67832-74020iKGJ10,NGJ10201011

67837KSEAL, FRONT DOOR VENT

main67837-74010×4iKGJ10,NGJ10200811-201111

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-74020supersedes 67861-74010iKGJ10,NGJ10200811

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-74020supersedes 67862-74010iKGJ10,NGJ10200811

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×23iKGJ10,NGJ10200811

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×23iKGJ10,NGJ10200811

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-24010×2iKGJ10,NGJ10200811

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-74010iKGJ10,NGJ10200811-201004

main67923-74011iKGJ10,NGJ10201005

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-74010iKGJ10,NGJ10200811-201004

main67924-74011iKGJ10,NGJ10201005

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-74010iKGJ10,NGJ10200811-201008

main68110-74011iKGJ10,NGJ10201009

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-74010iKGJ10,NGJ10200811-201008

main68120-74011iKGJ10,NGJ10201009

68141CRUN, FRONT DOOR GLASS, RH

main68141-74010iKGJ10,NGJ10200811-201012

main68141-74011iKGJ10,NGJ10201101-201208

main68141-74012iKGJ10,NGJ10201208

68151CRUN, FRONT DOOR GLASS, LH

main68151-74010iKGJ10,NGJ10200811-201012

main68151-74011iKGJ10,NGJ10201101-201208

main68151-74012iKGJ10,NGJ10201208

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-74010iKGJ10200811-200905

main68160-74030iKGJ10,NGJ10200906-201107

main68160-74031iKGJ10,NGJ10201108

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-74010iKGJ10200811-200905

main68210-74030iKGJ10,NGJ10200906-201107

main68210-74031iKGJ10,NGJ10201108

68610CHECK ASSY, FRONT DOOR

main68610-74010×2iKGJ10200811-200903

main68610-74011×2iKGJ10200904-200908

main68610-74030×2iKGJ10,NGJ10200908-201603

7503SIDE MOULDING

→ Go to FIG 75-03

9010908295

main90109-08295

9011906983

main90119-06983

9095001620

main90950-01620

9095006105

main90950-06105

9155380612

main91553-80612

9155380620

main91553-80620

9415180600

main94151-80600

30 parts on this diagram · 2 diagrams in section
