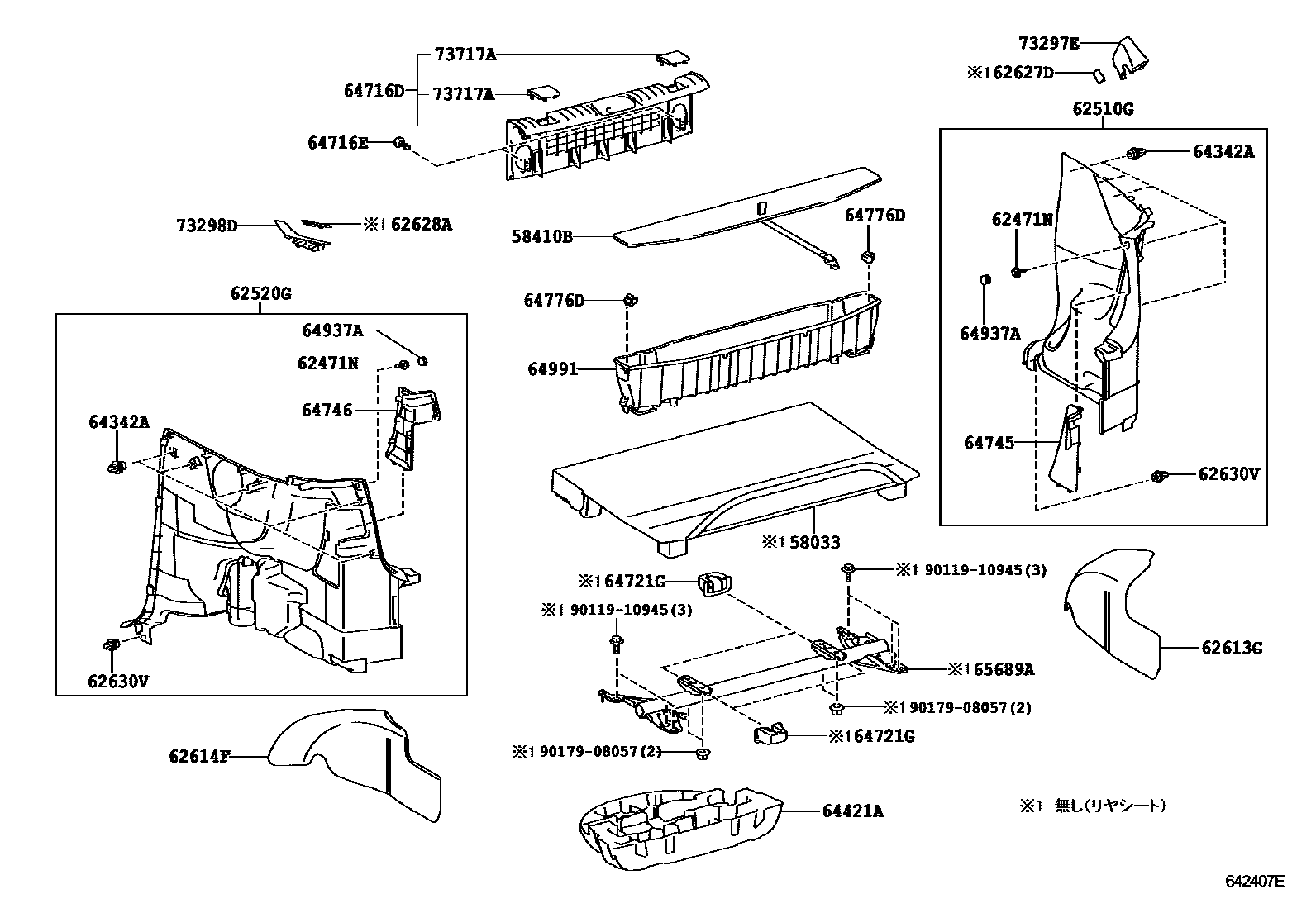

DECK BOARD & DECK TRIM COVER

58033BOARD SUB-ASSY, REAR FLOOR

main73505-74010-B2iKGJ10..100X201005-201603

main73505-74010-E0iKGJ10..100X200908-201005

58410BBOARD ASSY, DECK

main58410-74010-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,8#

main58410-74010-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

62471NFASTENER(FOR REAR PILLAR GARNISH)

main64949-74020×2iKGJ10,NGJ10200811-201603

62510GTRIM ASSY, SIDE NO.1, RH

main62510-74010-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,8#

main62510-74010-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

62520GTRIM ASSY, SIDE NO.1, LH

main62520-74010-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,8#

main62520-74010-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

62613GCOVER ASSY, QUARTER WHEEL HOUSE, RH

main62610-74010iKGJ10,NGJ10200811-201102

main62610-74020iKGJ10,NGJ10201102

62614FCOVER ASSY, QUARTER WHEEL HOUSE, LH

main62620-74010iKGJ10,NGJ10200811-201102

main62620-74020iKGJ10,NGJ10201102

62627DCOVER, SIDE TRIM, RH

main62539-74010-B0iKGJ10..100X200908-201603

62628ACOVER, SIDE TRIM, LH

main62549-74010-B0iKGJ10..100X200908-201603

62630VCLIP (FOR QUARTER REAR TRIM)

main90467-09224×2iKGJ10,NGJ10200811

64342ACLIP

main90467-10161×10iKGJ10,NGJ10200811

64421ATRAY, LUGGAGE COMPARTMENT

main64421-74011iKGJ10200811-200904

main64421-74012iKGJ10,NGJ10200904-201005

main64421-74013iKGJ10,NGJ10201005

64716DCOVER, DECK TRIM, REAR

main64716-74010-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,8#

main64716-74010-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-08186-C0×2iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,8#

main90467-08186-E5×2iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

64721GCOVER, DECK TRIM, NO.1

main72995-74020×4iKGJ10..100X200908

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-74010-C0iNGJ10..6F201011-201603

BLACK,TRIM1#,4#,7#,8#

main64745-74010-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-74010-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,8#

main64746-74010-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

64776DKNOB, SPARE WHEEL COVER

main64776-52020×2iKGJ10,NGJ10200811

64937ACAP, TONNEAU COVER HOLDER, NO.1

main64937-74010×2iKGJ10,NGJ10200811-201603

64991BOX, DECK FLOOR, FRONT

main64070-74020iKGJ10,NGJ10200811

65689ABRACKET

main73705-74020iKGJ10..100X200908

73297ECOVER, DECK TRIM SIDE BELT HOLE, RH

main73297-74010-B0iNGJ10..6F; NGJ10..CVFC201405-201603

GRAY,TRIM1#,4#,5#,7#,80; GRAY,TRIM1#,4#,7#,80

main73297-74010-J0iNGJ10201405-201603

H/V BLUE,TRIM88

73298DCOVER,DECK TRIM SIDE BELT HOLE, LH

main73298-74010-B0iNGJ10..CVFC200908-201405

GRAY,TRIM1#,4#,5#,7#,8#

main73298-74010-J0iNGJ10201405-201603

H/V BLUE,TRIM88

73717ACOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-74010-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

main73717-74010-E0iKGJ10,NGJ10200811-201005

main73717-74020-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

main73717-74020-E0iKGJ10,NGJ10200811-201005

9011910945

main90119-10945

9017908057

main90179-08057

26 parts on this diagram · 1 diagram in section
