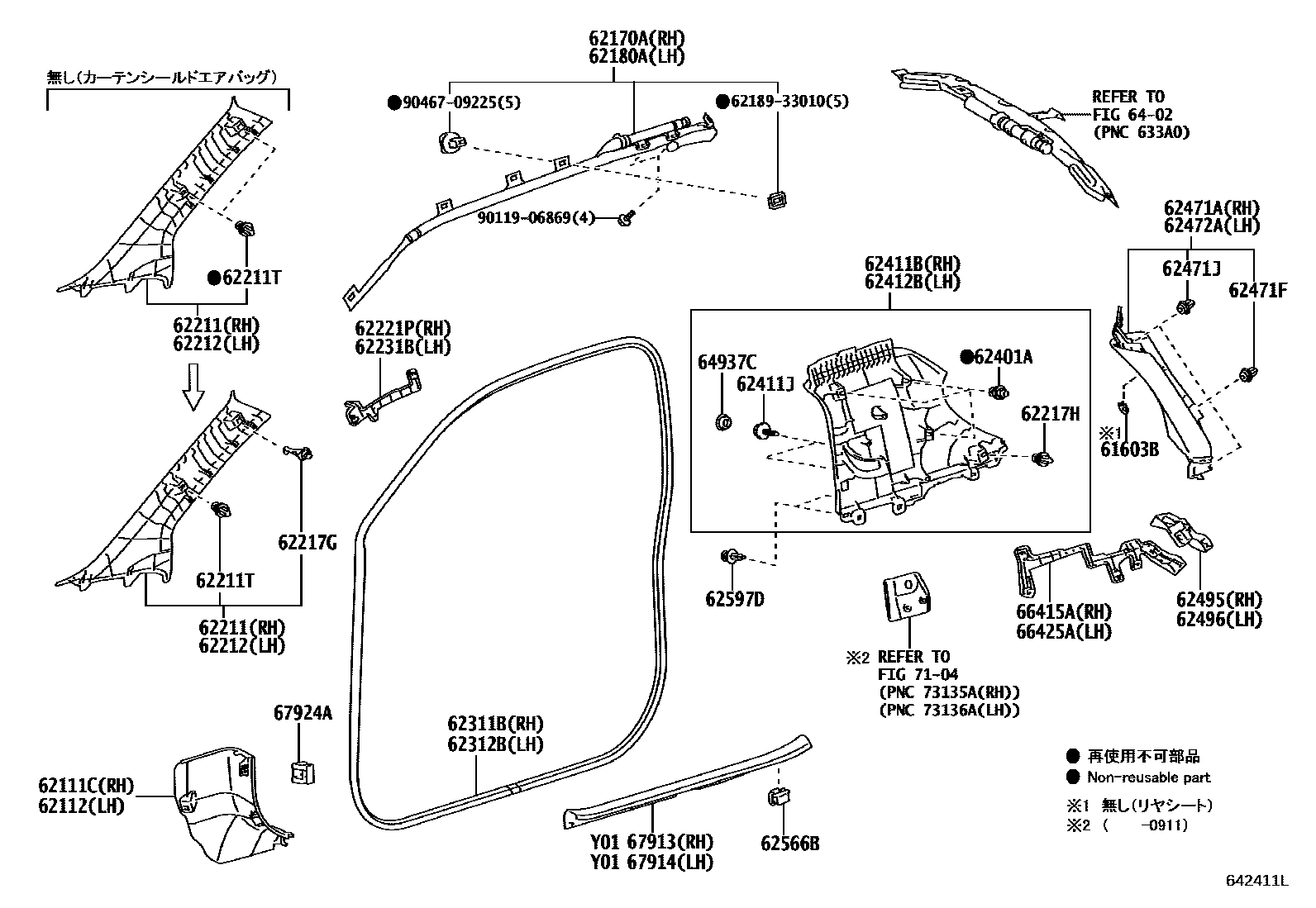

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

61603BGROMMET, SEAT BELT ANCHOR

main47256-26010-B9×2iKGJ10..100X200908-201603

62111CBOARD, COWL SIDE TRIM, RH

main62111-74010-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201403

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,8#

main62111-74010-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

main62111-74011-C0iKGJ10..100G; KGJ10..100X; NGJ10..6F; NGJ10..CVFC201404-201603

BLACK,TRIM1#; BLACK,TRIM1#,7#,8#; BLACK,TRIM7#; BLACK,TRIM7#,8#

62112BOARD, COWL SIDE TRIM, LH

main62112-74010-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,8#

main62112-74010-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-74020iKGJ10,NGJ10200811-201105

main62170-74050iKGJ10,NGJ10201105-201401

main62170-74051iKGJ10,NGJ10; KGJ10..100X201401

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-74020iKGJ10,NGJ10200811-201105

main62180-74050iKGJ10,NGJ10201105-201401

main62180-74051iKGJ10,NGJ10; KGJ10..100X201401

62211GARNISH, FRONT PILLAR, RH

main62211-74010-B0iNGJ10..6F201011-201603

GRAY,TRIM1#,4#,7#,8#

main62211-74020-B0supersedes 62211-74010-B0iKGJ10..100X200908-201603

main62211-74040-J0iNGJ10201405-201603

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161×2iKGJ10,NGJ10200811

62212GARNISH, FRONT PILLAR, LH

main62212-74010-B0iNGJ10..6F201011-201603

GRAY,TRIM1#,4#,7#,8#

main62212-74020-B0supersedes 62212-74010-B0iKGJ10..100X200908-201603

main62212-74040-J0iNGJ10201405-201603

62217GCLIP, FRONT PILLAR GARNISH

main62217-52050×2iKGJ10,NGJ10200811

62217HCLIP, CENTER PILLER GARNISH

main90467-10161×2iKGJ10,NGJ10200912

main90467-10188×2iKGJ10,NGJ10200811-200912

62221PSPACER, FRONT PILLAR, NO.1 RH

main62221-74010iKGJ10,NGJ10200811

62231BSPACER, FRONT PILLAR, NO.1 LH

main62231-74010iKGJ10,NGJ10200811

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-74010iKGJ10,NGJ10200811

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-74010iKGJ10,NGJ10200811

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main63395-12150×6iKGJ10,NGJ10200811

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-74010-B0iNGJ10..6F; NGJ10..CVFC201405-201603

GRAY,TRIM1#,4#,5#,7#,80,81; GRAY,TRIM1#,4#,7#,80

main62411-74010-J0iNGJ10201405-201603

H/V BLUE,TRIM88

62411JFASTENER(FOR CENTER PILLAR GARNISH)

main64949-74010×4iKGJ10,NGJ10200811-201603

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-74010-B0iNGJ10..6F; NGJ10..CVFC201405-201603

GRAY,TRIM1#,4#,5#,7#,80,81; GRAY,TRIM1#,4#,7#,80

main62412-74010-J0iNGJ10201405-201603

H/V BLUE,TRIM88

62471AGARNISH, ROOF SIDE, INNER RH

main62471-74010-B0iNGJ10..CVFC200908-201405

GRAY,TRIM1#,4#,5#,7#,8#

main62471-74010-J0iNGJ10201405-201603

H/V BLUE,TRIM88

main62471-74020-B0supersedes 62471-74010-B0iKGJ10..100X200908-201603

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10161×2iKGJ10,NGJ10200811

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10167×4iKGJ10,NGJ10200811

62472AGARNISH, ROOF SIDE, INNER LH

main62472-74010-B0iKGJ10..100G; KGJ10..100X200811-201603

GRAY,TRIM1#,4#,5#,7#; GRAY,TRIM1#,4#,5#,8#

main62472-74010-J0iNGJ10201405-201603

H/V BLUE,TRIM88

main62472-74020-B0supersedes 62472-74010-B0iKGJ10..100X200908-201603

62495SPACER, ROOF SIDE INNER GARNISH, RH

main62495-74010iKGJ10,NGJ10200811-201011

main62495-74020iKGJ10,NGJ10201011

62496SPACER, ROOF SIDE INNER GARNISH, LH

main62496-74010iKGJ10,NGJ10200811-201011

main62496-74020iKGJ10,NGJ10201011

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-30010×2iKGJ10,NGJ10200811

62597DCLIP

main65487-74010×4iKGJ10,NGJ10200811

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

64937CCAP, TONNEAU COVER HOLDER, NO.1

main64937-74010×4iKGJ10,NGJ10200811-201603

66415ASPACER, SIDE RAIL, REAR NO.2 RH

main66415-74010iKGJ10,NGJ10200811

66425ASPACER, SIDE RAIL, REAR NO.2 LH

main66425-74010iKGJ10,NGJ10200811

67913PLATE, FRONT DOOR SCUFF, RH

main67913-74010-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,8#

main67913-74010-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-74010-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,8#

main67914-74010-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-52140×2iKGJ10,NGJ10200811

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

6218933010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH

main62189-33010

9011906869

main90119-06869

9046709225

main90467-09225

37 parts on this diagram · 1 diagram in section
