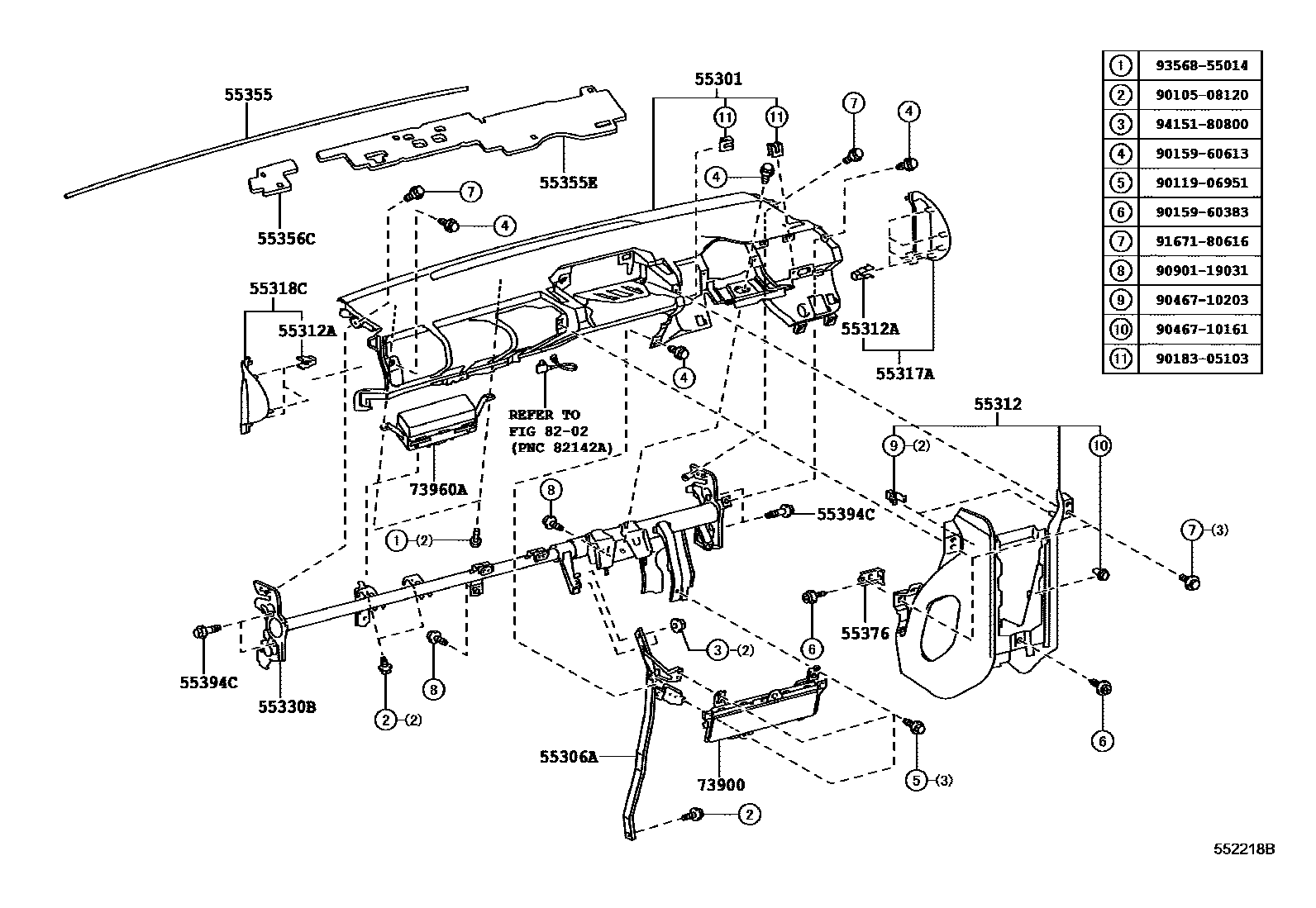

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55301PANEL SUB-ASSY, INSTRUMENT

main55301-74020-C0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,8#

main55301-74020-E0iKGJ10,NGJ10200811-201005

PLUM,TRIM4#,5#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-74020iKGJ10,NGJ10200811

55312PANEL, INSTRUMENT, LOWER

main55312-74020-B0iNGJ10..CVFC201405-201603

LT.GRAY,TRIM1#,7#,8#

main55312-74020-C0iKGJ10..100X; NGJ10..CVFC201008-201405

BLACK,TRIM8#; BLACK,TRIM81

main55312-74020-E0iKGJ10..100X201008-201205

PLUM,TRIM10

55312ACLIP, INSTRUMENT PANEL

main90467-10201×7iKGJ10,NGJ10200811

55317APANEL, INSTRUMENT SIDE, RH

main55317-74020-C0iKGJ10..100G; KGJ10..100X200811-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,8#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-74020-C0iNGJ10..CVFC200908-201603

BLACK,TRIM1#,4#,5#,7#,8#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-74020iKGJ10,NGJ10..CVFC200811

main55330-74040iNGJ10..6F201011

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12090iKGJ10,NGJ10200811

55355ECUSHION, INSTRUMENT PANEL

main55355-74010iKGJ10,NGJ10200811

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-74010iKGJ10,NGJ10200811

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-74010iKGJ10,NGJ10200811

55394CBOLT, INSTRUMENT PANEL

main55394-74010×4iKGJ10,NGJ10200811

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-74020-B0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201405-201603

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,7#; LT.GRAY,TRIM1#,7#,8#

main73900-74020-C0iKGJ10..100G; NGJ10..CVFC201005-201205

BLACK,TRIM10,11,12,13,4#,5#; BLACK,TRIM10,11,12,13,4#,5#,81

main73900-74020-E0iKGJ10,NGJ10..CVFC..(100G,130G); KGJ10..100X201005-201205

PLUM,TRIM10,11,12,13,4#,5#; PLUM,TRIM10,4#,5#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-74010iKGJ10,NGJ10200811-201301

main73960-74011iKGJ10,NGJ10201302

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508120

main90105-08120

9011906951

main90119-06951

9015960383

main90159-60383

9015960613

main90159-60613

9018305103

main90183-05103

9046710161

main90467-10161

9046710203

main90467-10203

9090119031

main90901-19031

9167180616

main91671-80616

9356855014

main93568-55014

9415180800

main94151-80800

26 parts on this diagram · 4 diagrams in section
