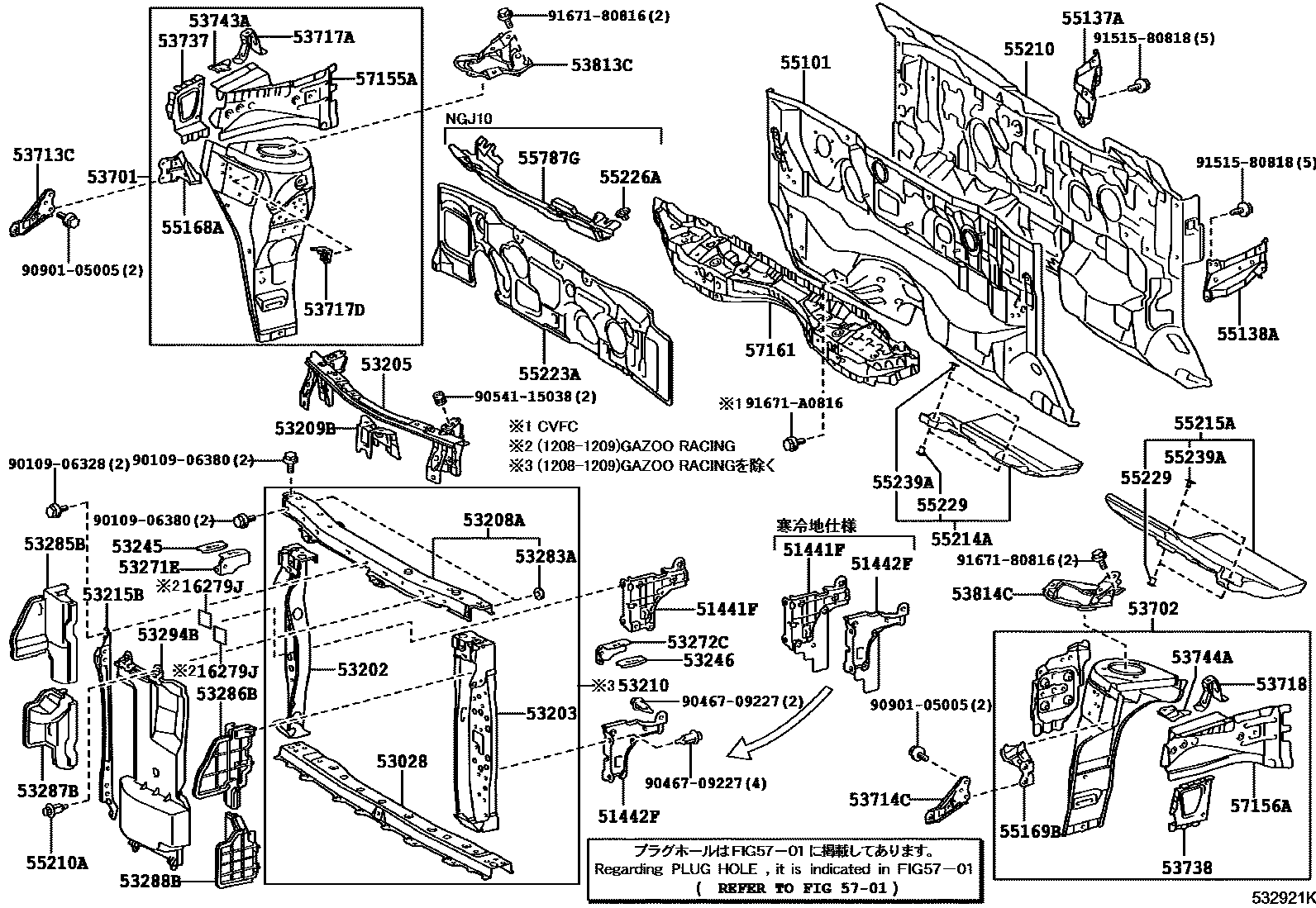

FRONT FENDER APRON & DASH PANEL

16279JPROTECTOR, HOSE

main16279-47010×2i1NRFE..NGJ10..6F201208-201209

51441FCOVER, ENGINE UNDER, RH

main51440-74020supersedes 51451-74010iKGJ10,NGJ10200811

51442FCOVER, ENGINE UNDER, LH

main51450-74020supersedes 51452-74010iKGJ10,NGJ10200811

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-74010iKGJ10,NGJ10200811

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-74010iKGJ10,NGJ10200811

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-74010iKGJ10,NGJ10200811

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-74010iKGJ10,NGJ10200811-200912

main53205-74011iKGJ10,NGJ10201001

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-74010iKGJ10,NGJ10200811

main53208-74030iNGJ10..6F201208-201209

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-74010iKGJ10,NGJ10200811

53210SUPPORT ASSY, RADIATOR

main53210-74010iKGJ10,NGJ10200811-200912

main53210-74011iKGJ10,NGJ10201001

53215BSUPPORT, HOOD LOCK

main53215-74010iKGJ10,NGJ10200811

53245BRACKET, HEADLAMP, RH

main53245-74010iKGJ10,NGJ10200811

53246BRACKET, HEADLAMP, LH

main53245-74010iKGJ10,NGJ10200811

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-74010iKGJ10,NGJ10200811

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-74010iKGJ10,NGJ10200811

53283AREINFORCEMENT, RADIATOR SUPPORT, LOWER

main53283-30010×2iKGJ10,NGJ10200811

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-74011iKGJ10,NGJ10200811

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-74011iKGJ10,NGJ10200811

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-74011iKGJ10,NGJ10200811

main53287-74020iKGJ10,NGJ10..CVFC..(100G,130G)201009-201205

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-74011iKGJ10,NGJ10200811

main53288-74030iKGJ10,NGJ10..CVFC..(100G,130G)201009-201205

53294BDEFLECTOR, RADIATOR LOWER AIR, NO.1

main53294-74010iKGJ10200811-200910

main53295-74010iNGJ10200908

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-74010iKGJ10,NGJ10200811-201603

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-74010iKGJ10,NGJ10200811-201603

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-74010iKGJ10,NGJ10200811-201603

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-74010iKGJ10,NGJ10200811-201603

53717APLATE, FENDER APRON

main53717-74010iKGJ10,NGJ10200811

53717DGUSSET, FENDER APRON, RH

main53743-74010iKGJ10,NGJ10200811

53718PLATE, FENDER APRON, LH

main53718-74010iKGJ10,NGJ10200811

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-74010iKGJ10,NGJ10200811

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-74010iKGJ10,NGJ10200811

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53815-74010iKGJ10,NGJ10200811

53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53816-74010iKGJ10,NGJ10200811

53813CEXTENSION, FRONT FENDER, RH

main53707-74010iKGJ10,NGJ10200811

53814CEXTENSION, FRONT FENDER, LH

main53708-74010iKGJ10,NGJ10200811

55101PANEL SUB-ASSY, DASH

main55101-74901iNGJ10..6F201011-201603

main55101-74902iKGJ10,NGJ10..CVFC200811-201603

main55101-74030iNGJ10..CVFC200911-201002

55137ABRACE, DASH TO FRAME, RH

main55137-74010iKGJ10,NGJ10200811-201001

main55137-74011iKGJ10,NGJ10201002

55138ABRACE, DASH TO FRAME, LH

main55138-74010iKGJ10,NGJ10200811

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-74010iKGJ10,NGJ10200811

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-74010iKGJ10,NGJ10200811

55210INSULATOR ASSY, DASH PANEL

main55210-74020iKGJ10,NGJ10200811-201005

main55210-74020-B0iKGJ10..100G; KGJ10..100X; NGJ10..CVFC201005-201207

GRAY,TRIM1#,4#,5#,7#; GRAY,TRIM1#,4#,5#,7#,8#; GRAY,TRIM1#,8#

main55210-74021-B0iKGJ10..100G; KGJ10..100X; NGJ10..6F; NGJ10..CVFC201208-201603

GRAY,TRIM1#; GRAY,TRIM1#,7#,8#; GRAY,TRIM7#; GRAY,TRIM7#,8#

55210ACLIP

main90467-07164×2iKGJ10,NGJ10200811

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-74021iKGJ10,NGJ10..CVFC200811-201103

main55214-74022iKGJ10,NGJ10..CVFC201103

main55214-74031iNGJ10..6F201011-201103

main55214-74032iNGJ10..6F201103

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-74020iKGJ10,NGJ10200811

55223AINSULATOR, DASH PANEL, OUTER

main55223-74010iKGJ10,NGJ10200811

55226ACLIP

main90467-06188×4iNGJ10200908

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-48010×4iKGJ10,NGJ10200811

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020×4iKGJ10,NGJ10200811

55787GINSULATOR, COWL TOP PANEL, NO.1

main55787-74020iNGJ10200908

5701HOLE PLUG

→ Go to FIG 57-01

57155AREINFORCEMENT, FRONT SIDE MEMBER, NO.3 RH

main57155-74010iKGJ10,NGJ10200811

57156AREINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-74010iKGJ10,NGJ10200811

57161CROSSMEMBER, FRONT

main57103-74011iKGJ10,NGJ10200811-201603

9010906328

main90109-06328

9010906380

main90109-06380

9046709227

main90467-09227

9054115038

main90541-15038

9090105005

main90901-05005

9151580818

main91515-80818

9167180816

main91671-80816

91671A0816

main91671-A0816

60 parts on this diagram · 1 diagram in section
