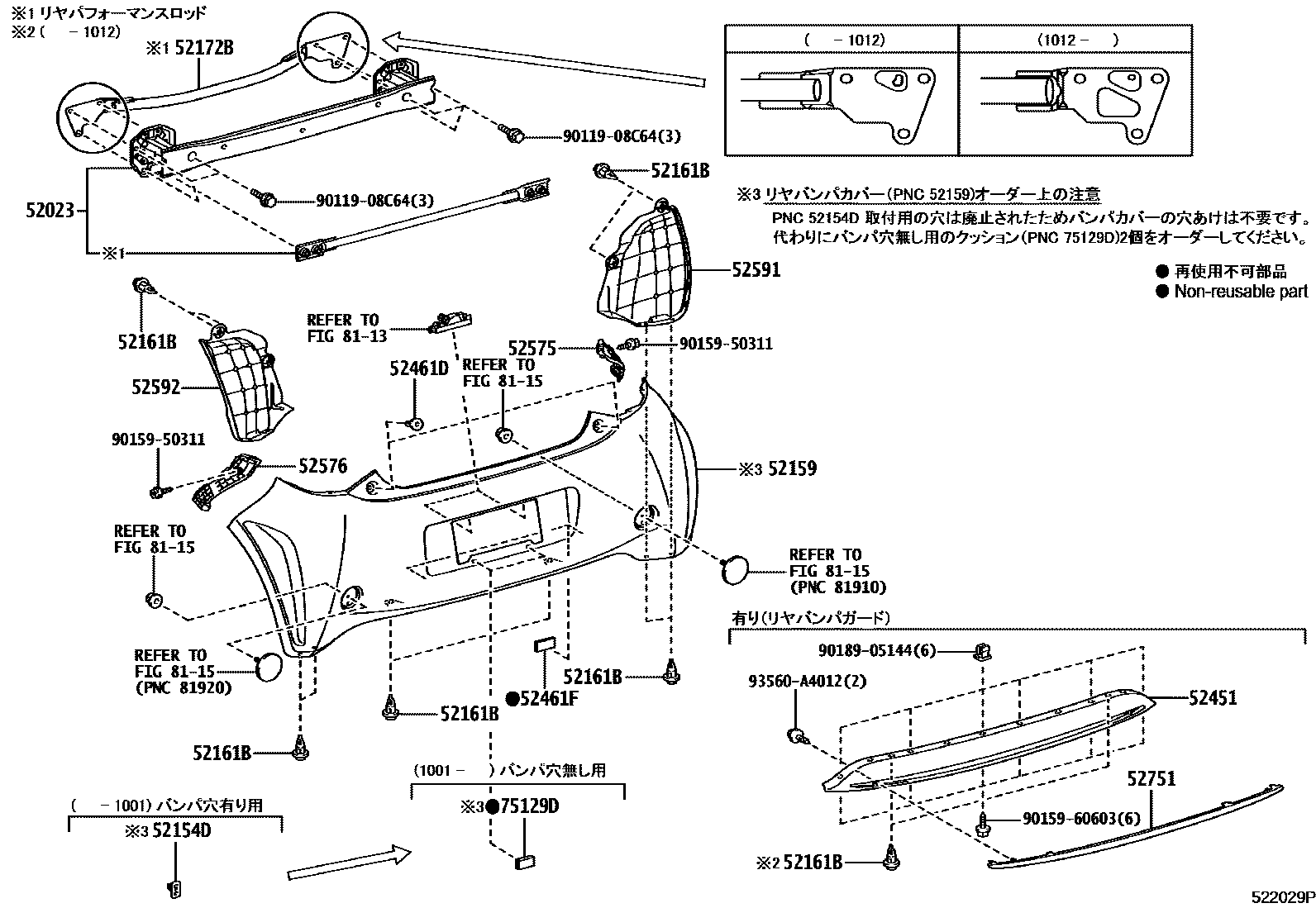

REAR BUMPER & BUMPER STAY

0001 1 0002 1GAZOO RACING

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-74010iKGJ10200811-201603

main58303-74010iNGJ10200908-201603

52154DSUPPORT, REAR BUMPER, NO.1

main52154-74010×2iKGJ10,NGJ10200811-200912

52159COVER, REAR BUMPER

main52159-74011-A0iKGJ10200811-201404

WHITE PEARL CS.,070

main52159-74011-B0iKGJ10200811-201001

SILVER ME.,1F7

main52159-74011-B1iNGJ10..CVFC200905-201205

GRAY ME.,1G3

main52159-74011-C0iKGJ10200811-201404

BLACK MC.,209

main52159-74011-D0iKGJ10200811-201404

SUPER RED 5,3P0

main52159-74011-E0iNGJ10..CVFC200811-201205

BRONZE M.M.,4T3

main52159-74011-E1iNGJ10..CVFC201008-201205

ORANGE ME.,4R8

main52159-74011-F0iKGJ10,NGJ10200811-201005

SILKY GOLD M.M.,5A7

main52159-74011-F1iKGJ10,NGJ10200902-201008

YELLOW,5A6

main52159-74011-G0iKGJ10,NGJ10200811-201005

JADE GREEN METALLIC,6V5

main52159-74011-J0iKGJ10200811-201404

GRAYISH BLUE ME.,8R3

main52159-74011-J1iKGJ10,NGJ10..CVFC200902-201204

BLUE ME.,8T7

main52159-74011-K0iKGJ10200811-201404

DEEP AMETHYST M.M.,9AH

main52159-74030-A0iNGJ10..6F201011-201404

WHITE PEARL CS.,070 ,2MJ

main52159-74030-B0iNGJ10..6F201011-201404

SILVER ME.,1F7 ,2LT ,2ML

main52159-74030-B1iNGJ10..6F201011-201404

GRAY ME.,1G3 ,2MK

main52159-74030-C0iNGJ10..CVFC201205-201404

BLACK MC.,209

main52159-74030-D0iNGJ10..6F201011-201404

SUPER RED 5,3P0

main52159-74030-E0iNGJ10201404-201603

ORANGE ME.,4R8

main52159-74030-E1iNGJ10..CVFC201205-201305

BRONZE M.M.,4T3

main52159-74030-J0iNGJ10..6F201011-201404

GRAYISH BLUE ME.,8R3

main52159-74030-J1iNGJ10..6F201011-201204

BLUE ME.,8T7

main52159-74030-K0iNGJ10..CVFC201205-201404

DEEP AMETHYST M.M.,9AH

main52159-74090-A0iKGJ10201404-201603

WHITE PEARL CS.,070

main52159-74100-A0iNGJ10201404-201603

WHITE PEARL CS.,070 ,2MJ

main52150-74090iNGJ10..6F201208-201209

52161BPIECE, REAR BUMPER

main52161-16010×12iNGJ10..6F201011-201012

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52043-74010iNGJ10200908-201012

main52043-74020iKGJ10..100X; NGJ10201012

52451GUARD, REAR BUMPER

main52453-74010iNGJ10..6F201011

52461DCUSHION, REAR BUMPER

main52461-52020×2iKGJ10,NGJ10200811

52461FPAD, REAR BUMPER

main52461-74010×2iKGJ10,NGJ10200811

52575RETAINER, REAR BUMPER SIDE, RH

main52575-74010iKGJ10,NGJ10200811-201009

main52575-74011iKGJ10,NGJ10201010-201203

main52575-74012iKGJ10,NGJ10201204

52576RETAINER, REAR BUMPER SIDE, LH

main52576-74010iKGJ10,NGJ10200811-201009

main52576-74011iKGJ10,NGJ10201010-201203

main52576-74012iKGJ10,NGJ10201204

52591SEAL, REAR BUMPER SIDE, RH

main52591-74010iKGJ10,NGJ10200811

52592SEAL, REAR BUMPER SIDE, LH

main52592-74010iKGJ10,NGJ10200811

52751MOULDING, REAR BUMPER

main52751-74010iNGJ10..6F201011

75129DCUSHION, REAR LICENCE PLATE

main75129-58010×2iKGJ10,NGJ10201001

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9011908C64

main90119-08C64

9015950311

main90159-50311

9015960603

main90159-60603

9018905144

main90189-05144

93560A4012

main93560-A4012

21 parts on this diagram · 2 diagrams in section
