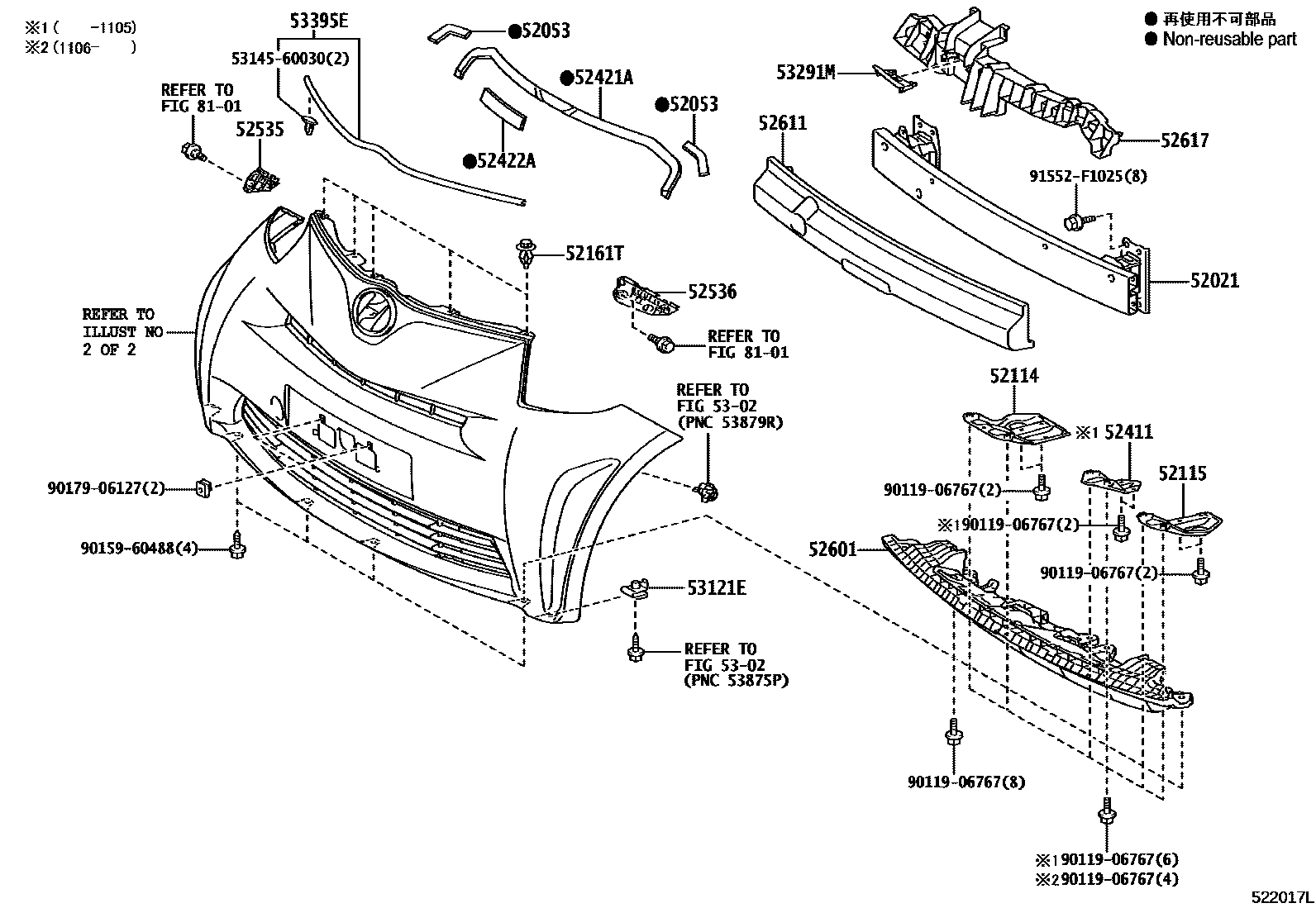

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 16F OR "���" 0006 16F OR "���" 0007 1 0008 1 0009 1GAZOO RACING 0010 1GAZOO RACING

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-74010iKGJ10,NGJ10200811-200912

main52021-74011iKGJ10,NGJ10201001-201301

main52021-74012iKGJ10,NGJ10201302-201603

52053PAD SUB-ASSY, FRONT BUMPER

main52423-74010×2iKGJ10200811

main52423-74020×2iNGJ10..CVFC201205

52114GUARD, BUMPER, FRONT RH

main52907-74010iKGJ10,NGJ10200811

52115GUARD, BUMPER, FRONT LH

main52908-74010iKGJ10,NGJ10200811

52161TPIECE, FRONT BUMPER

main52161-16010×5iKGJ10,NGJ10200811

52411GUARD, FRONT BUMPER

main52401-74010iKGJ10,NGJ10200811-201105

52421APAD, FRONT BUMPER

main52421-74010iKGJ10200811

main52421-74020iNGJ10..CVFC201205

52422APAD, FRONT BUMPER, RH

main52422-74010iKGJ10200811

main52422-74020iNGJ10..CVFC201205

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-74010iKGJ10200811-200902

main52535-74011iKGJ10,NGJ10200903

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-74010iKGJ10200811-200902

main52536-74011iKGJ10,NGJ10200903

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-74010iKGJ10,NGJ10200811-201005

main52601-74011iKGJ10,NGJ10201006

main52601-74020iNGJ10..6F201208-201209

52611ABSORBER, FRONT BUMPER ENERGY

main52611-74011iKGJ10,NGJ10200811

main52611-74050iNGJ10..6F201208-201209

52617ABSORBER, RADIATOR SUPPORT, UPPER

main52617-74010iKGJ10,NGJ10200811-201008

main52617-74011iKGJ10,NGJ10201009

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-05114×2iKGJ10,NGJ10200811

53291MSEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-74010iKGJ10,NGJ10200811

53395ESEAL, HOOD TO FRONT END PANEL

main53395-74010iKGJ10,NGJ10200811

8101HEADLAMP

→ Go to FIG 81-01

5314560030BRACKET,RADIATOR GRILLE MOUNTING, RH

main53145-60030

9011906767

main90119-06767

9015960488

main90159-60488

9017906127

main90179-06127

91552F1025

main91552-F1025

23 parts on this diagram · 8 diagrams in section
