FRONT SPRING & SHOCK ABSORBER

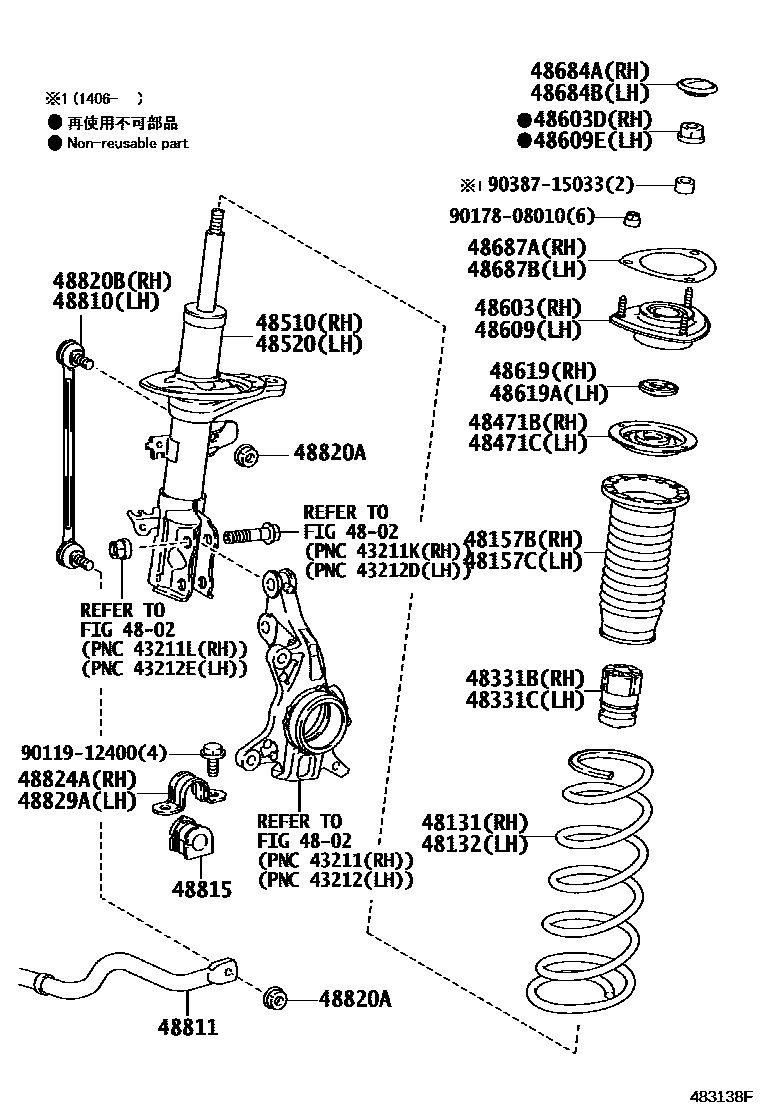

Parts diagram
4802
48131SPRING, FRONT COIL, RH
main48131-74010i200811
main48131-74040i200908
48132SPRING, FRONT COIL, LH
main48131-74010i200811
main48131-74040i200908
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-52030i200811
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-52030i200811
48331BBUMPER, FRONT SPRING, RH
main48331-74010i200811
48331CBUMPER, FRONT SPRING, LH
main48331-74010i200811
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48471-74010i200811
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48471-74010i200811
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-74010i200811-201004
sub48510-74011
main48510-74011i201005-201406
sub48510-74012
main48510-74013i201406
main48510-74041i200908-201005
sub48510-74042
sub48684-74010
main48510-74042i201005-201406
sub48510-74043
main48510-74044i201406
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-74010i200811-201004
sub48520-74011
main48520-74011i201005-201406
sub48520-74012
main48520-74013i201406
main48520-74041i200908-201005
sub48520-74042
sub48684-74010
main48520-74042i201005-201406
sub48520-74043
main48520-74044i201406
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-74010i200811-201406
main48609-74020i200908-201406
main48609-74021i201406
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90177-14005i201406
main90178-14018i200811-201004
sub90178-14019
main90178-14019i201005-201406
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-74010i200811-201406
main48609-74020i200908-201406
main48609-74021i201406
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90177-14005i201406
main90178-14018i200811-201004
sub90178-14019
main90178-14019i201005-201406
48619BEARING, STRUT MOUNTING, RH
main48619-74010i200811
48619ABEARING, STRUT MOUNTING, LH
main48619-74010i200811
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-12070i200811-201406
main48684-52010i200908-201004
main48684-74010i201005
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-12070i200811-201406
main48684-52010i200908-201004
main48684-74010i201005
48687APLATE, FRONT SUSPENSION SUPPORT, RH
main48687-74010i200811
48687BPLATE, FRONT SUSPENSION SUPPORT, LH
main48687-74010i200811
48810LINK ASSY, FRONT STABILIZER, LH
main48820-74010i200811
48811BAR, STABILIZER, FRONT
main48811-74010i200811
main48811-74020i200908
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-74010i200811
main48815-74030i200908
48820ANUT(FOR FRONT STABILIZER LINK)
main90179-12151i200811
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-74010i200811
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-74010i200811
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-74010i200811
9011912400
main90119-12400
9017808010
main90178-08010
9038715033
main90387-15033

31 parts on this diagram · 1 diagram in section
