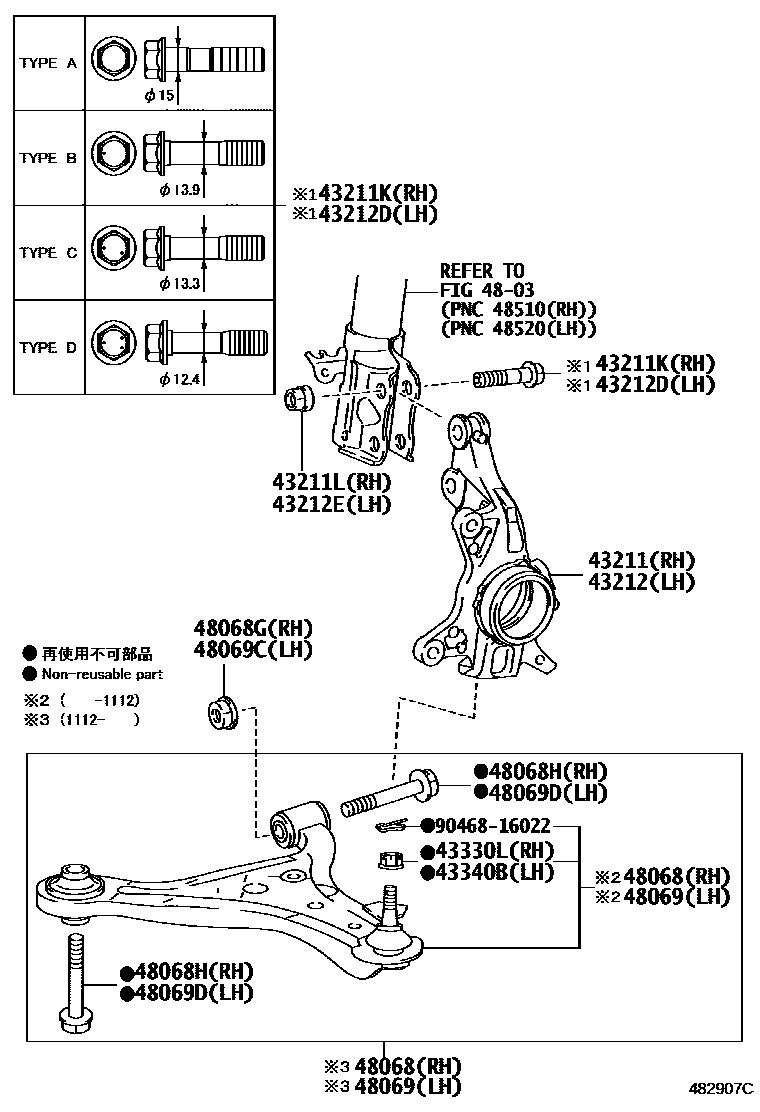

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-74010i200811

main43211-74020i200908

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001×2i200811

main90109-15002i200811

main90109-15003i200811

main90109-15004i200811

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15006×2i200811

main90179-15004×2i201208-201209

43212KNUCKLE, STEERING, LH

main43212-74010i200811

main43212-74020i200908

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001×2i200811

main90109-15002i200811

main90109-15003i200811

main90109-15004i200811

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15006×2i200811

main90179-15004×2i201208-201209

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007i200811

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007i200811

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-79015i200811-201012

main48068-79016i201012-201112

main48068-79017i201112-201206

main48068-79018i201207

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14068i200811

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14143×2i200910-201112

main90119-14150×2i201205

main91674-L1485×2i200811-200909

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-79015i200811-201012

main48069-79016i201012-201112

main48069-79017i201112-201206

main48069-79018i201207

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14068i200811

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14143×2i200910-201112

main90119-14150×2i201205

main91674-L1485×2i200811-200909

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
