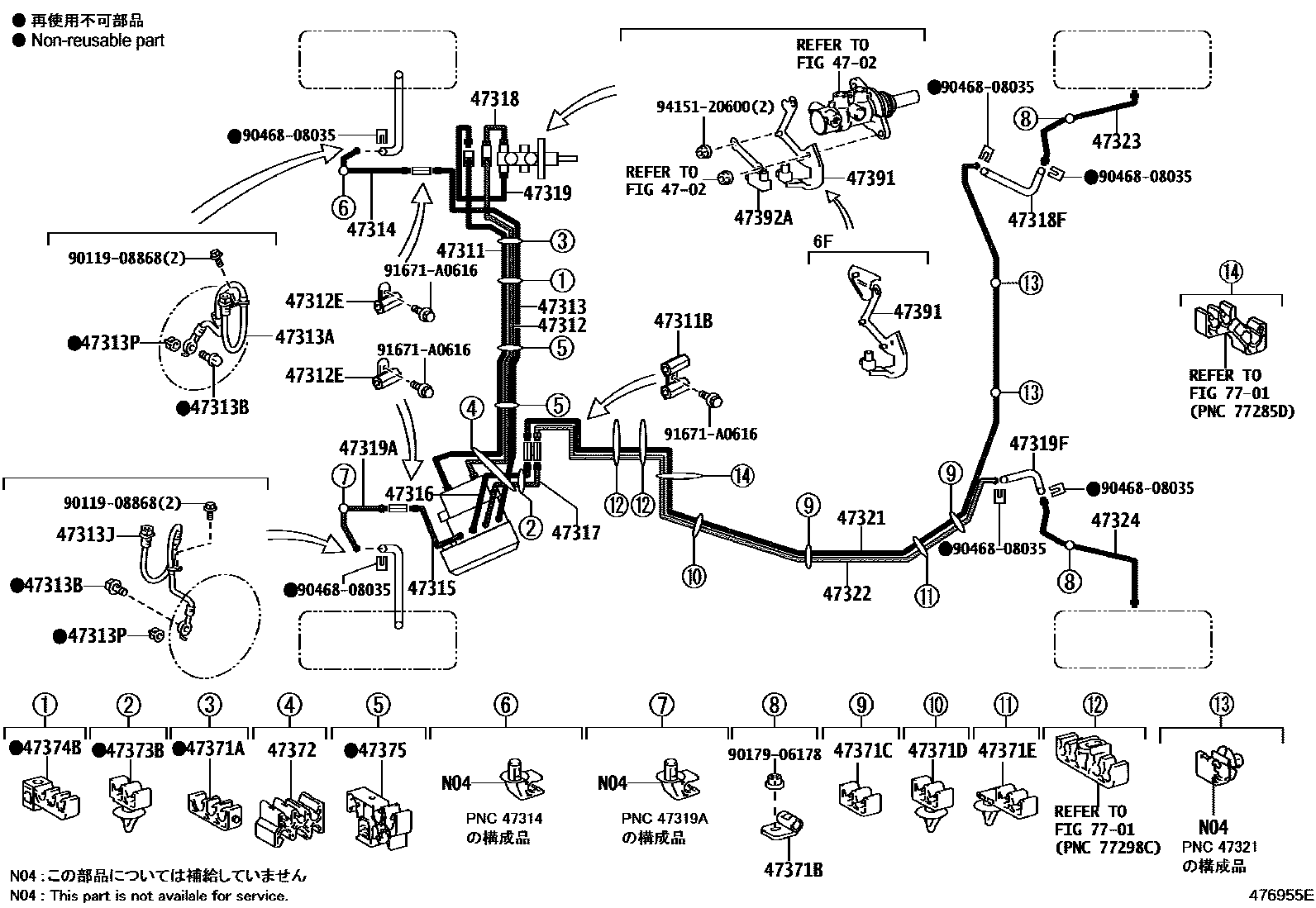

BRAKE TUBE & CLAMP

0001 1 0002 1��(�� ����������) 0003 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-74020iKGJ10,NGJ10200811

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iKGJ10200811-200812

main90412-10285iKGJ10,NGJ10200812

47312TUBE, FRONT BRAKE, NO.2

main47312-74020iKGJ10,NGJ10200811

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10272×2iKGJ10,NGJ10200811

47313TUBE, FRONT BRAKE, NO.3

main47313-74020iKGJ10,NGJ10200811

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F92iKGJ10,NGJ10201404

main90947-02G70iKGJ10,NGJ10201207-201404

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iKGJ10,NGJ10200811

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02F93iKGJ10,NGJ10200811-200910

main90947-02G44iKGJ10,NGJ10200911-201603

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iKGJ10,NGJ10200811

47314TUBE, FRONT BRAKE, NO.4

main47314-74010iKGJ10,NGJ10200811

47315TUBE, FRONT BRAKE, NO.5

main47315-74020iKGJ10,NGJ10200811

47316TUBE, FRONT BRAKE, NO.6

main47316-74020iKGJ10,NGJ10200811

47317TUBE, FRONT BRAKE, NO.7

main47317-74020iKGJ10,NGJ10200811

47318TUBE, FRONT BRAKE, NO.8

main47318-74030iKGJ10,NGJ10200811

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F94iKGJ10,NGJ10200811

47319TUBE, FRONT BRAKE, NO.9

main47319-74010iKGJ10,NGJ10200811

47319ATUBE, FRONT BRAKE, NO.10

main47318-74010iKGJ10,NGJ10200811

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F95iKGJ10,NGJ10200811

47321TUBE, REAR BRAKE, NO.1

main47321-74010iKGJ10,NGJ10200811-201603

47322TUBE, REAR BRAKE, NO.2

main47322-74010iKGJ10,NGJ10200811-201603

47323TUBE, REAR BRAKE, NO.3

main47323-74010iKGJ10,NGJ10200811

main47323-74020iKGJ10,NGJ10200908

47324TUBE, REAR BRAKE, NO.4

main47324-74010iKGJ10,NGJ10200811

main47324-74020iKGJ10,NGJ10200908

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00914iKGJ10,NGJ10200811

47371BCLAMP, BRAKE TUBE, NO.6

main90461-10837×2iKGJ10,NGJ10200811

47371CCLAMP, BRAKE TUBE, NO.7

main90464-00904×2iKGJ10,NGJ10200811-201603

47371DCLAMP, BRAKE TUBE, NO.8

main90469-07020iKGJ10,NGJ10200811-201603

47371ECLAMP, BRAKE TUBE, NO.9

main90469-07023iKGJ10,NGJ10200811-201603

47372CLAMP, BRAKE TUBE, NO.2

main90464-00916iKGJ10,NGJ10200811

47373BCLAMP, BRAKE TUBE, NO.3

main90469-07020iKGJ10,NGJ10200811

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D65iKGJ10,NGJ10200811

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D67×2iKGJ10,NGJ10200811

47391WAY, BRAKE TUBE

main47391-74010iKGJ10200811-200908

main47391-74011iKGJ10,NGJ10..CVFC200909

main47391-74031supersedes 47391-74010iNGJ10..6F201011

47392AWAY, BRAKE TUBE, NO.2

main47392-74010iKGJ10,NGJ10200811

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

9017906178

main90179-06178

9046808035

main90468-08035

91671A0616

main91671-A0616

9415120600

main94151-20600
