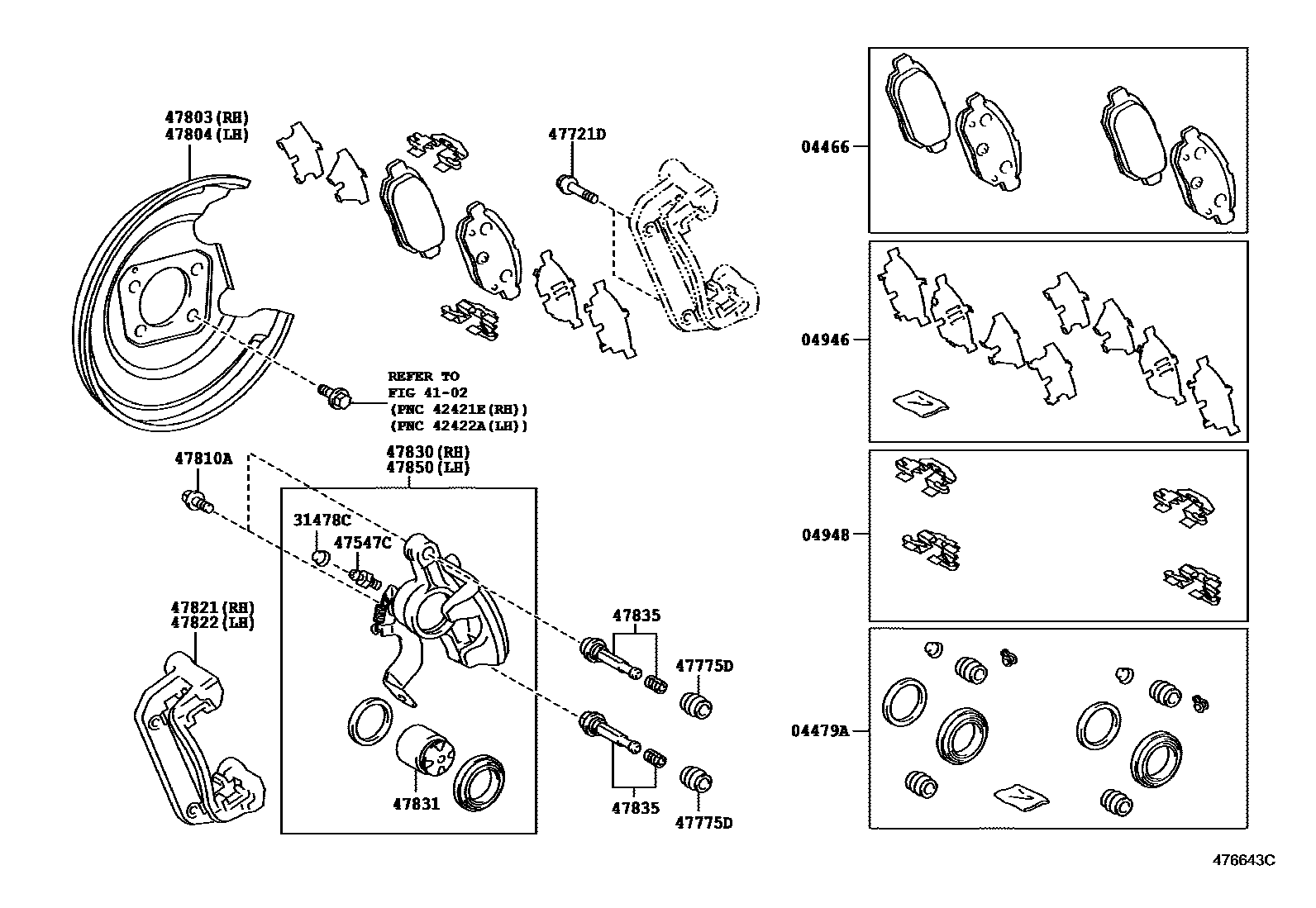

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52140iKGJ10,NGJ10200908-201202

main04466-52141iKGJ10,NGJ10201202-201303

main04466-52170iKGJ10,NGJ10201304

main04466-74020iNGJ10..6F201208-201209

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52170iKGJ10,NGJ10200908

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52080iKGJ10,NGJ10200908

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iKGJ10,NGJ10201202

main04948-52040iKGJ10,NGJ10200908-201201

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010×2iKGJ10,NGJ10200908

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050×2iKGJ10,NGJ10200908

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404×4iKGJ10,NGJ10200908

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iKGJ10,NGJ10200908

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-74010iKGJ10,NGJ10200908

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-74010iKGJ10,NGJ10200908

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102×4iKGJ10,NGJ10200908

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12151iKGJ10,NGJ10200908

main47821-74010iNGJ10..6F201208-201209

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151iKGJ10,NGJ10200908

main47821-74010iNGJ10..6F201208-201209

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52161iKGJ10,NGJ10200908

main47830-74010iNGJ10..6F201208-201209

47831PISTON, REAR DISC BRAKE

main47831-52090×2iKGJ10,NGJ10200908

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150×4iKGJ10,NGJ10200908

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52161iKGJ10,NGJ10200908

main47850-74010iNGJ10..6F201208-201209

18 parts on this diagram · 1 diagram in section
