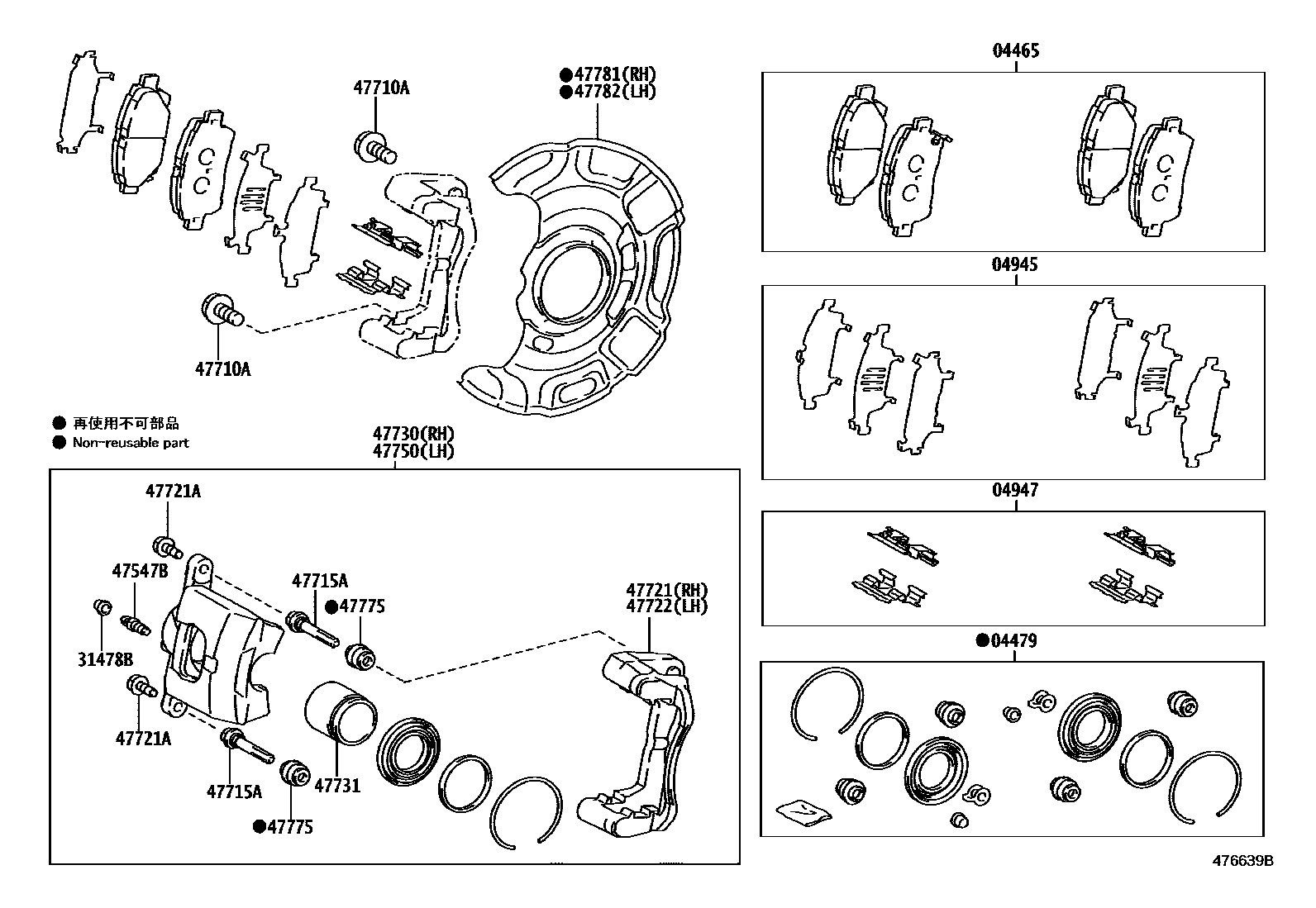

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-74020iKGJ10,NGJ10200811

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-74010iKGJ10,NGJ10200811-201303

sub04478-74011

main04478-74011iKGJ10,NGJ10201303

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-74010iKGJ10,NGJ10200811

04947FITTING KIT, DISC BRAKE, FRONT

main04947-52010iKGJ10,NGJ10200811

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iKGJ10,NGJ10200811

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iKGJ10,NGJ10200811

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iKGJ10,NGJ10200811-201603

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010iKGJ10,NGJ10200811

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-74010iKGJ10,NGJ10200811

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iKGJ10,NGJ10200811

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-74010iKGJ10,NGJ10200811

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-74010iKGJ10,NGJ10200811

47731PISTON, FRONT DISC BRAKE

main47731-74010iKGJ10,NGJ10200811

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-74010iKGJ10,NGJ10200811

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-02130iKGJ10,NGJ10201303

main47775-52010iKGJ10,NGJ10200811-201303

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-74010iKGJ10200811-201603

main47781-74020iNGJ10200908-201603

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-74010iKGJ10200811-201603

main47782-74020iNGJ10200908-201603

17 parts on this diagram · 1 diagram in section
