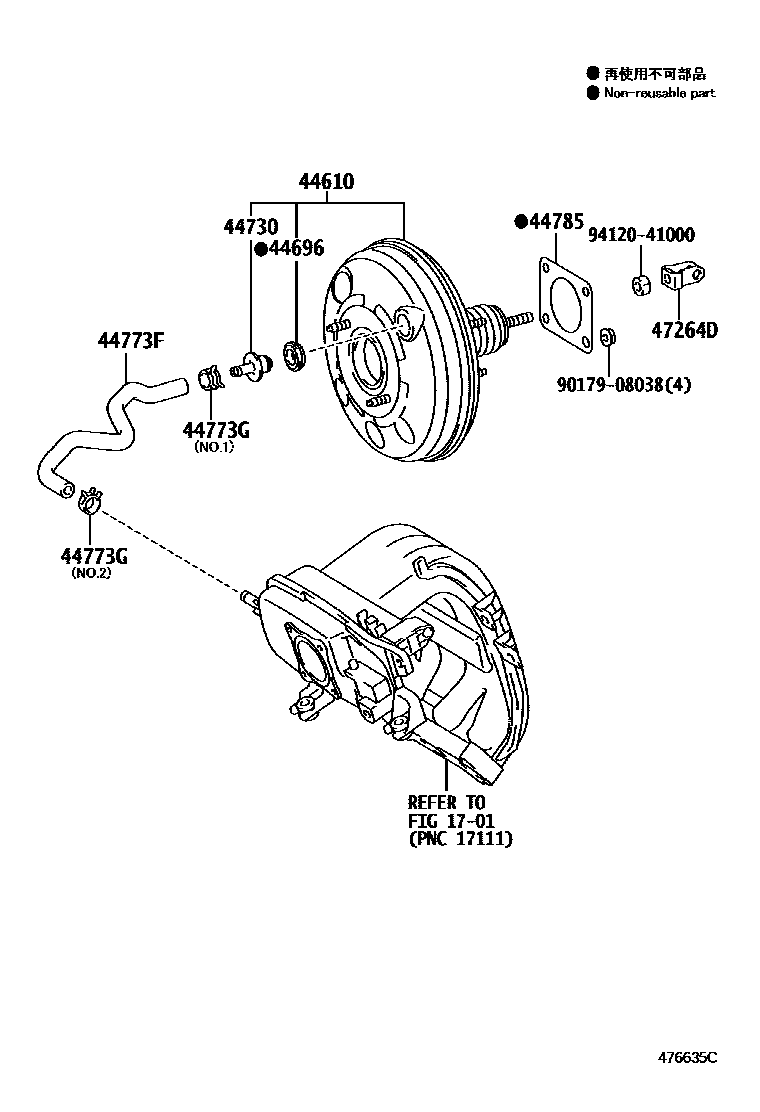

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1GAZOO RACING

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-74010iKGJ10,NGJ10..CVFC200811

main44610-74050iNGJ10..6F201011

44696GROMMET, CHECK VALVE

main90480-24439iKGJ10,NGJ10200811

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iKGJ10,NGJ10200811

44773HOSE, VACUUM, NO.2

main44773-74050iNGJ10..6F201208-201209

44773FHOSE, UNION TO CHECK VALVE

main44773-74010iKGJ10200811

main44773-74030iNGJ10200908

main44773-74040iNGJ10..6F201208-201209

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iKGJ10,NGJ10200812-201403

main96133-41500×2iKGJ10200811-200812

44785GASKET, BRAKE BOOSTER

main44785-16020iKGJ10,NGJ10200811

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63020iKGJ10,NGJ10200811-201011

main47264-68010iKGJ10,NGJ10201012

9017908038

main90179-08038

9412041000

main94120-41000

11 parts on this diagram · 3 diagrams in section
