STEERING WHEEL

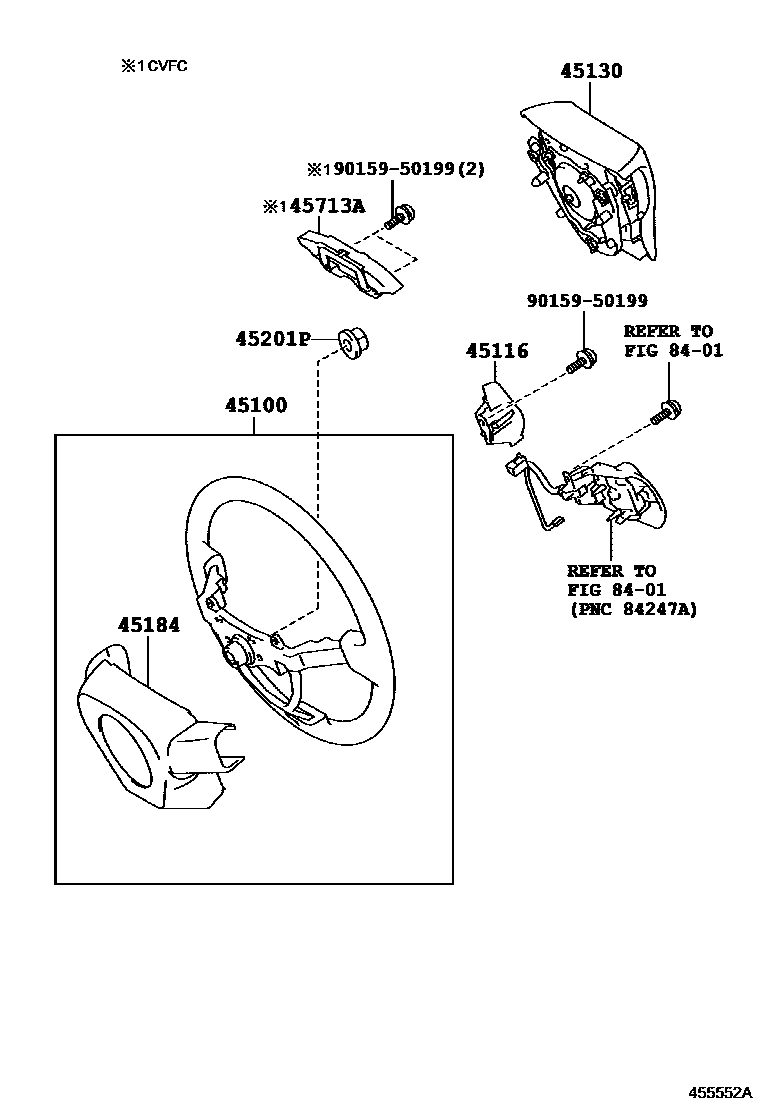

Parts diagram

45100WHEEL ASSY, STEERING

main45100-74010-C0i200811-201006

main45100-74011-C0i201007-201603

main45100-74020-C0i200811-201002

main45100-74021-C0i201003-201603

main45100-74030-C0i201011-201205

main45100-74040-C0i201405-201603

main45100-74050-C0i201208-201209

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-74010i200811-200905

main45116-74010-C1i200905-201603

BLACK,TRIM1#,4#,7#; BLACK,TRIM1#,8#

main45116-74020-A0i201001-201205

main45116-74020-D0i200908-201205

main45116-74020-E0i200908-201001

45130BUTTON ASSY, HORN

main45130-74010-C0i200811-200906

BLACK,TRIM4#

main45130-74011-C0i200907-201005

BLACK,TRIM1#,4#,5#; BLACK,TRIM1#,4#,5#,7#

main45130-74012-C0i201005-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,7#,8#; BLACK,TRIM1#,8#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-74010-C0i200811-201003

BLACK,TRIM4#,5#

45201PNUT, STEERING WHEEL SET

main90179-12071i200811

45713ADAMPER, STEERING SHAKE

main45713-74010i200811-200908

main45713-74020i200908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section
