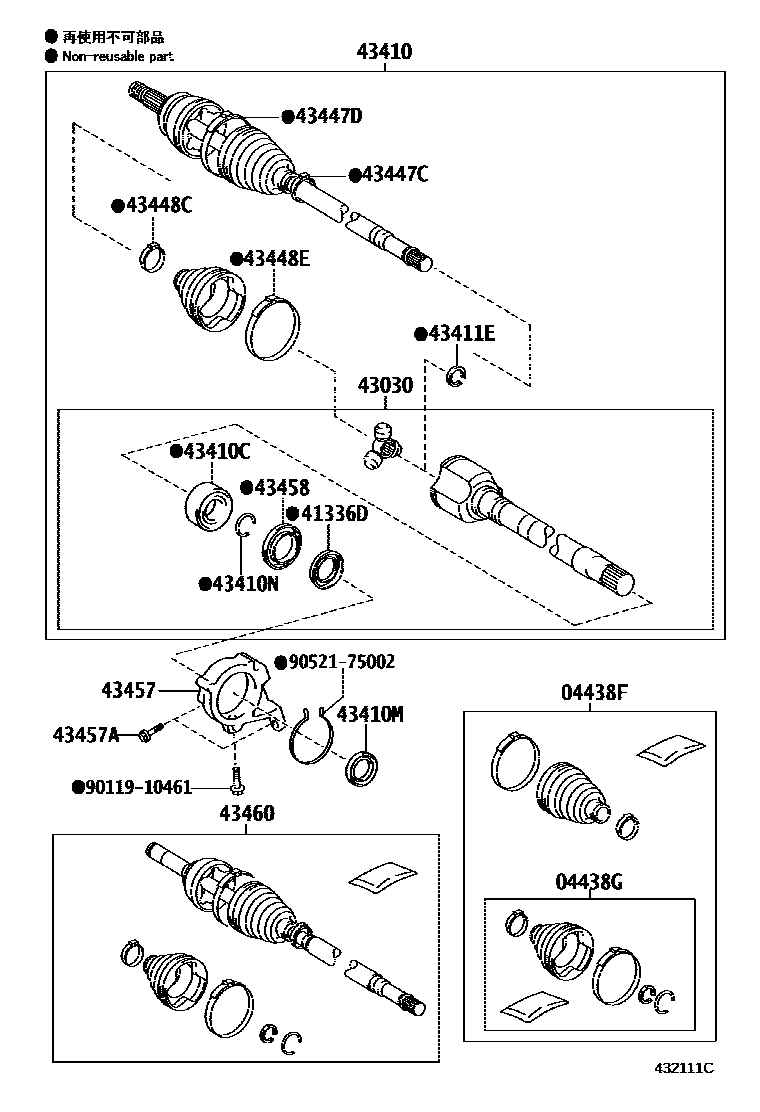

FRONT DRIVE SHAFT

0001 1��� 0002 1��� 0003 1���

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-74020iKGJ10200811

sub04427-74021

main04427-74040iNGJ10200908-201408

main04427-74041iNGJ10201408

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-74020iKGJ10200811

main04437-74040iNGJ10200908

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNGJ10200908

main41336-74010iKGJ10200811

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-74020iKGJ10200811

main43040-74030iNGJ10200908

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-74030iKGJ10200811

main43410-74060iNGJ10200908

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36009iKGJ10200811

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iKGJ10,NGJ10..CVFC200811-201406

main90311-34041iNGJ10..6F201011-201603

sub90311-34054

main90311-34048iKGJ10,NGJ10..CVFC201407

main90311-34037iNGJ10200911-201002

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iKGJ10200811

main90521-26004iNGJ10200908

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-74010iKGJ10200811

main43425-74020iNGJ10200908

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-74040iKGJ10200811

main42345-74060iNGJ10200908

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-74030iKGJ10200811-200906

main42345-74070iNGJ10200908

main42345-74110iKGJ10200906

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-74020iKGJ10200811

main42345-74090iNGJ10200908

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-74050iKGJ10200811

main42345-74080iNGJ10200908

43457BRACKET, DRIVE SHAFT BEARING

main43457-74010iKGJ10200811

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10381×2iKGJ10200811

43458COVER, FRONT DRIVE SHAFT DUST

main43458-20011iKGJ10200811

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-79035iNGJ10200908-201408

main43460-79036iNGJ10201408

main43470-79035iKGJ10200811

9011910461

main90119-10461

9052175002

main90521-75002

19 parts on this diagram · 3 diagrams in section
