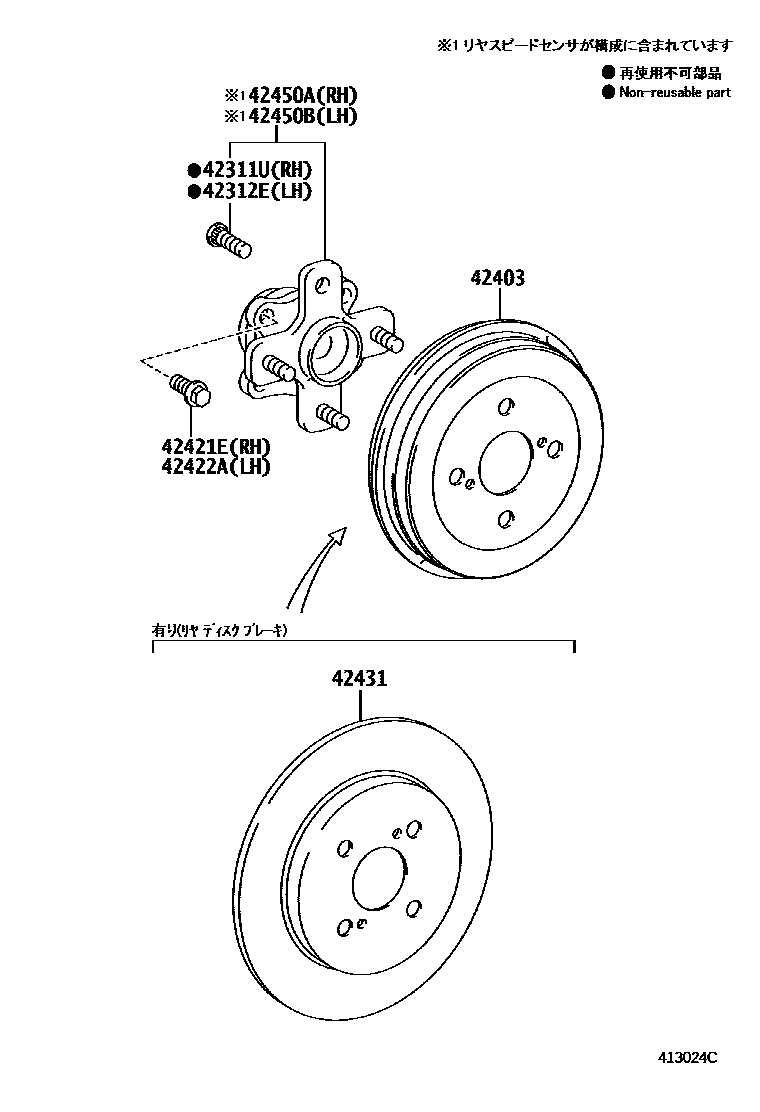

REAR AXLE SHAFT & HUB

0001 1 0002 1GAZOO RACING

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×4iKGJ10,NGJ10200811

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×4iKGJ10,NGJ10200811

42403DRUM SUB-ASSY, REAR BRAKE

main42431-74010×2iKGJ10,NGJ10200811

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iKGJ10,NGJ10200811

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iKGJ10,NGJ10200811

42431DISC, REAR

main42431-52080×2iKGJ10,NGJ10200908

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-74010iKGJ10,NGJ10200811

main42450-74020iNGJ10..6F201208-201209

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-74010iKGJ10,NGJ10200811

main42450-74020iNGJ10..6F201208-201209

8 parts on this diagram · 2 diagrams in section
