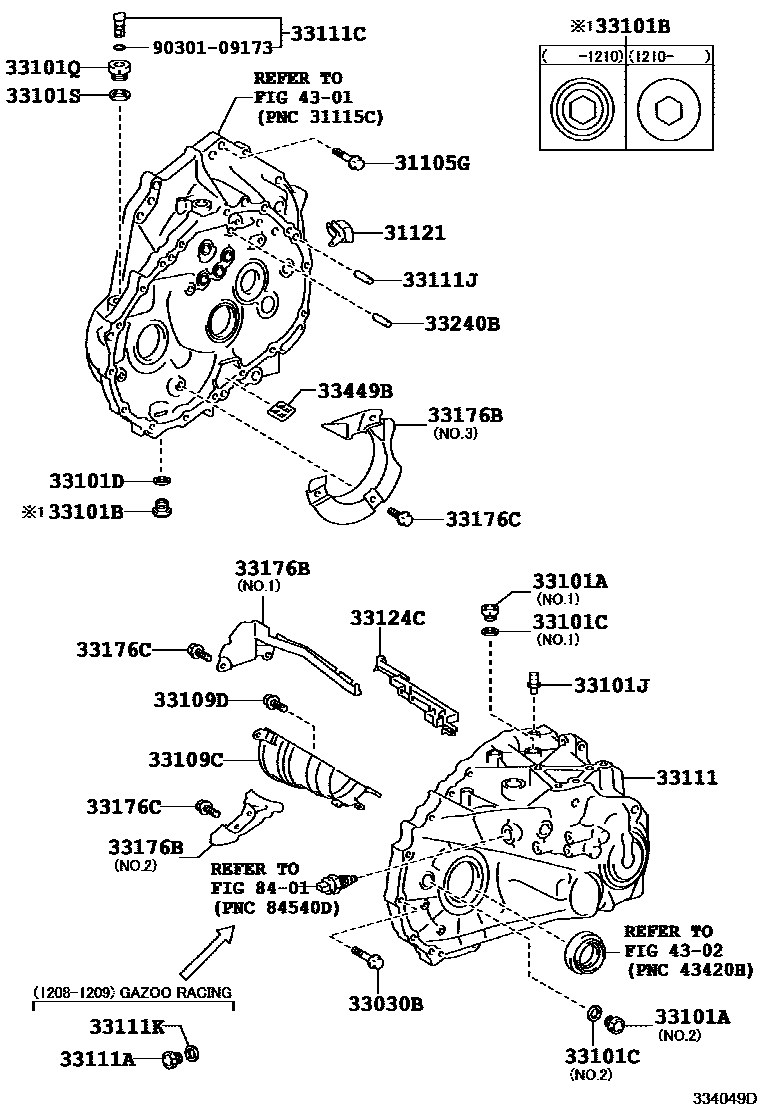

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
31121COVER, CLUTCH HOUSING, NO.1
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
33101JPLUG, BREATHER
33101QPLUG, NO.1(FOR TRANSMISSION CASE)
33101SGASKET(FOR TRANSMISSION CASE PLUG NO.1)
33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
33111KGASKET(FOR TRANSMISSION CASE)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
33449BMAGNET, TRANSMISSION
4301
4302
8401
9030109173
main90301-09173
26 parts on this diagram · 1 diagram in section
