TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

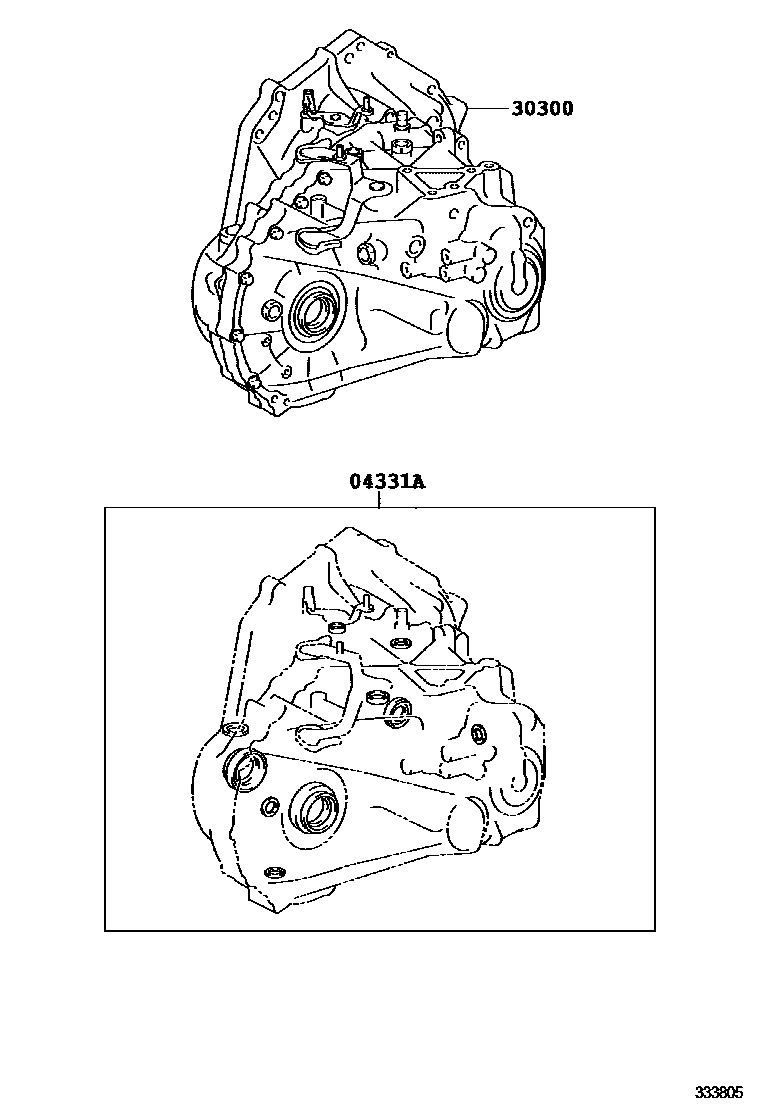

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-74010i201011-201210

main04331-74011i201210-201603

30300TRANSAXLE ASSY, MANUAL

main30300-74041i201011-201603

main30300-74040i200911-201002

2 parts on this diagram · 1 diagram in section
