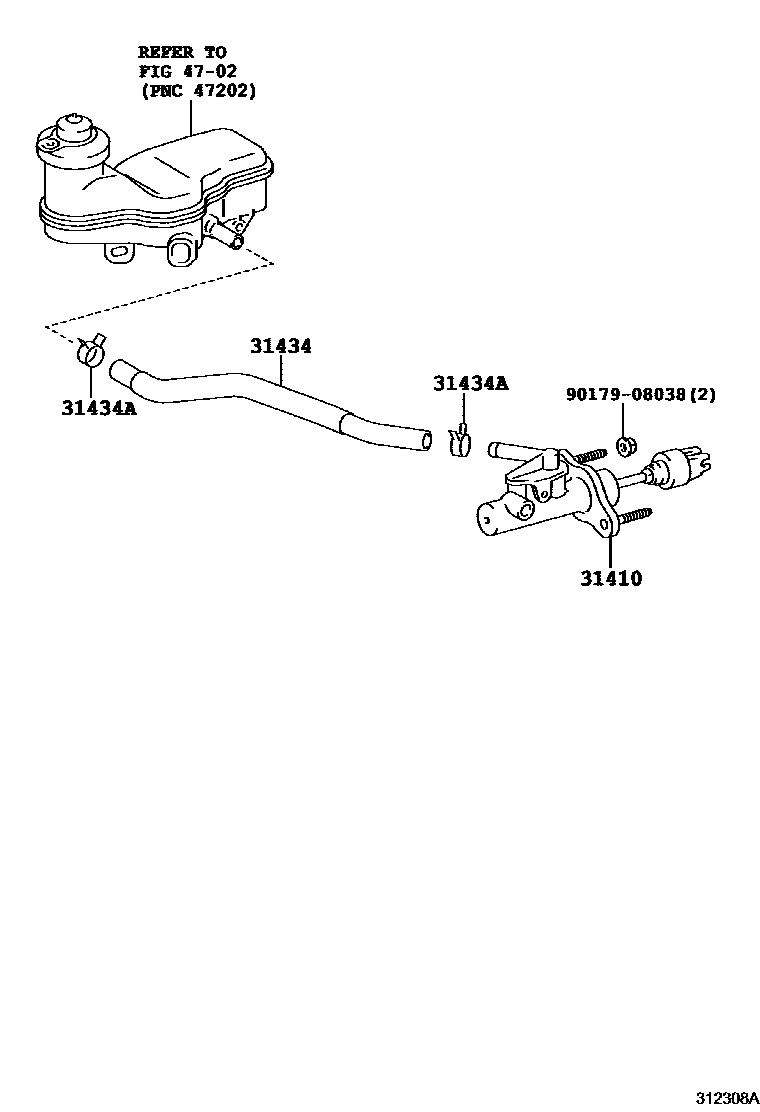

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-74060iNGJ10..6F201011

31434TUBE, CLUTCH RESERVOIR

main31434-74020iNGJ10..6F201011

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41801×2iNGJ10..6F201011

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

5 parts on this diagram · 1 diagram in section
