Toyota IQ — MANIFOLD

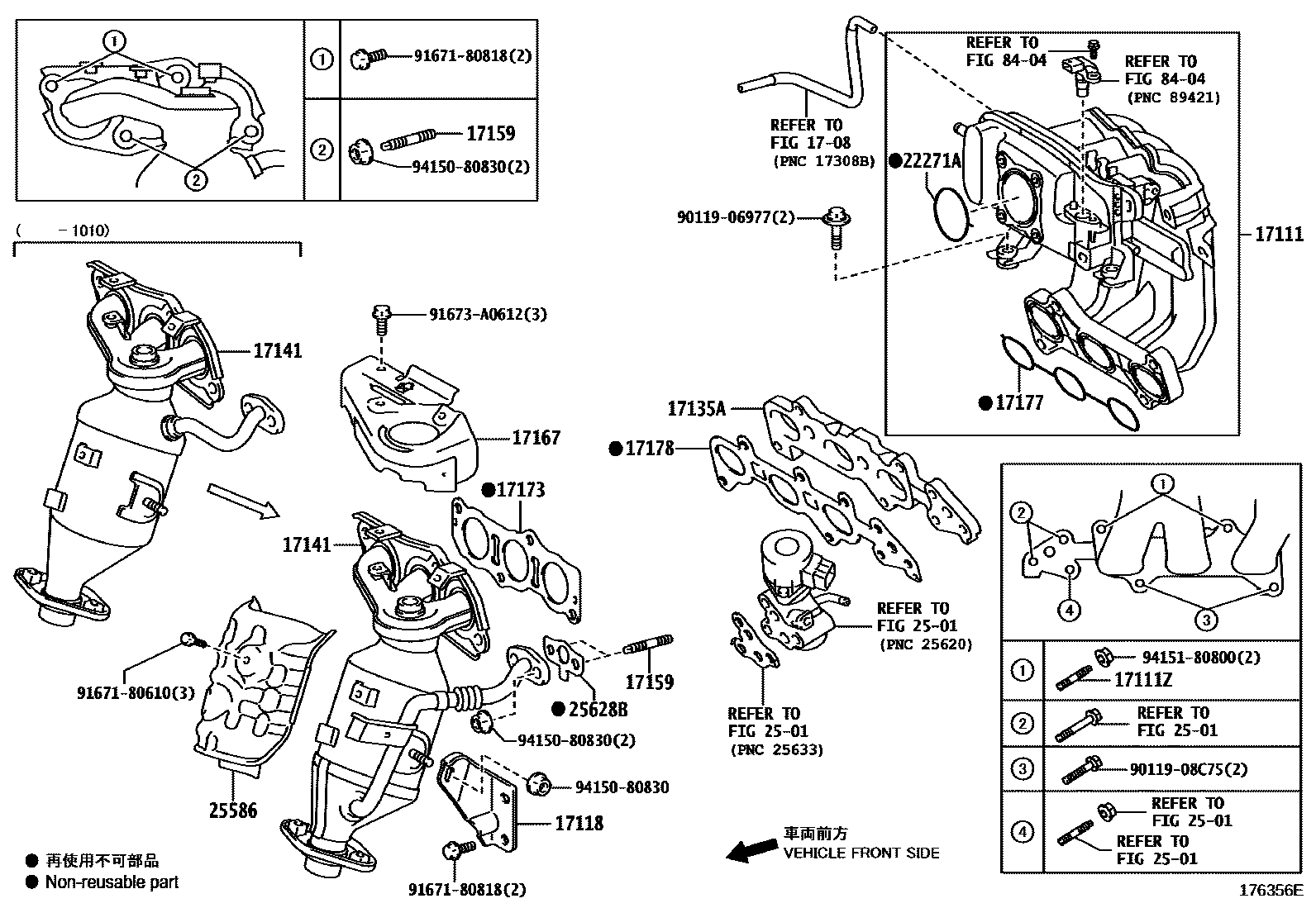

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

17118STAY, MANIFOLD

17135AINSULATOR, INTAKE MANIFOLD, NO.1

17141MANIFOLD, EXHAUST

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17173GASKET, EXHAUST MANIFOLD TO HEAD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

22271AGASKET, THROTTLE BODY

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25586INSULATOR, MANIFOLD CONVERTER, NO.1

25628BGASKET, EGR INLET

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906977

9011908C75

9167180610

9167180818

91673A0612

9415080830

9415180800

23 parts on this diagram · 3 diagrams in section

MANIFOLD for Toyota IQ

This section contains 41 genuine Toyota parts for the MANIFOLD system of the Toyota IQ. Key components include: VENTILATION HOSE, VACUUM PIPING, MANIFOLD SUB-ASSY, INTAKE, UPPER, MANIFOLD, INTAKE, BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD).
