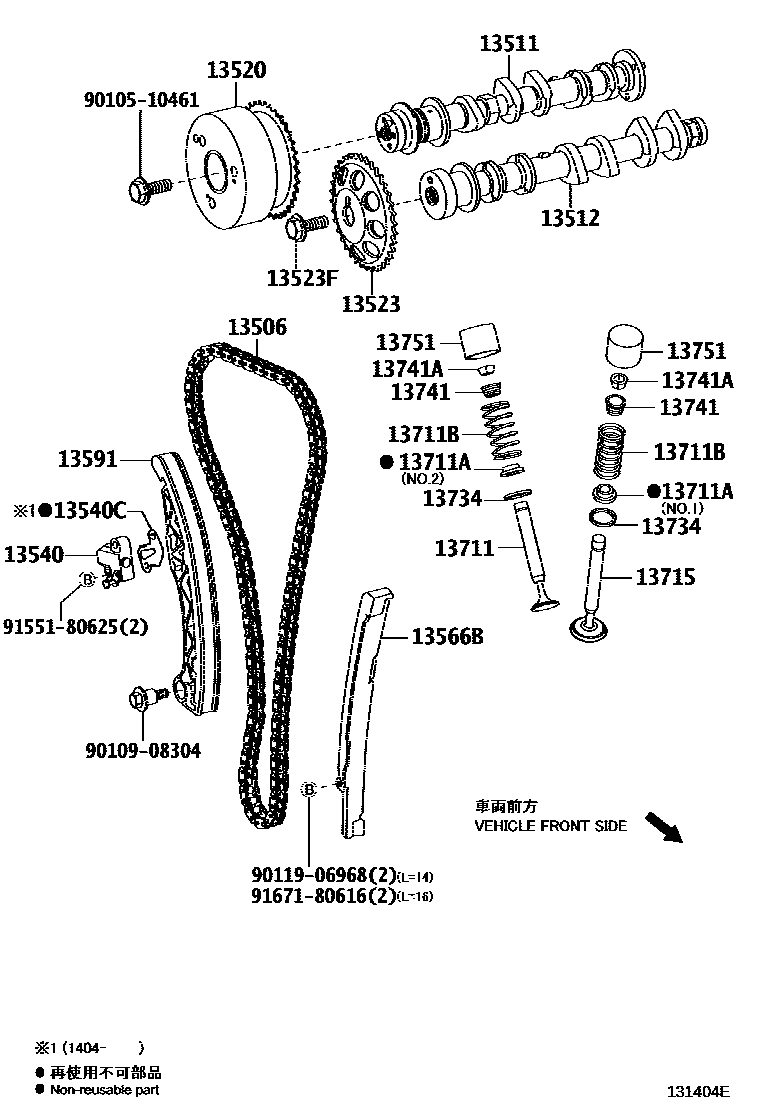

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13511CAMSHAFT
13512CAMSHAFT, NO.2
13520SPROCKET ASSY, CAMSHAFT TIMING
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13566BGUIDE, TIMING CHAIN
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
9010510461
main90105-10461
9010908304
main90109-08304
9011906968
main90119-06968
9155180625
main91551-80625
9167180616
main91671-80616
23 parts on this diagram · 2 diagrams in section
