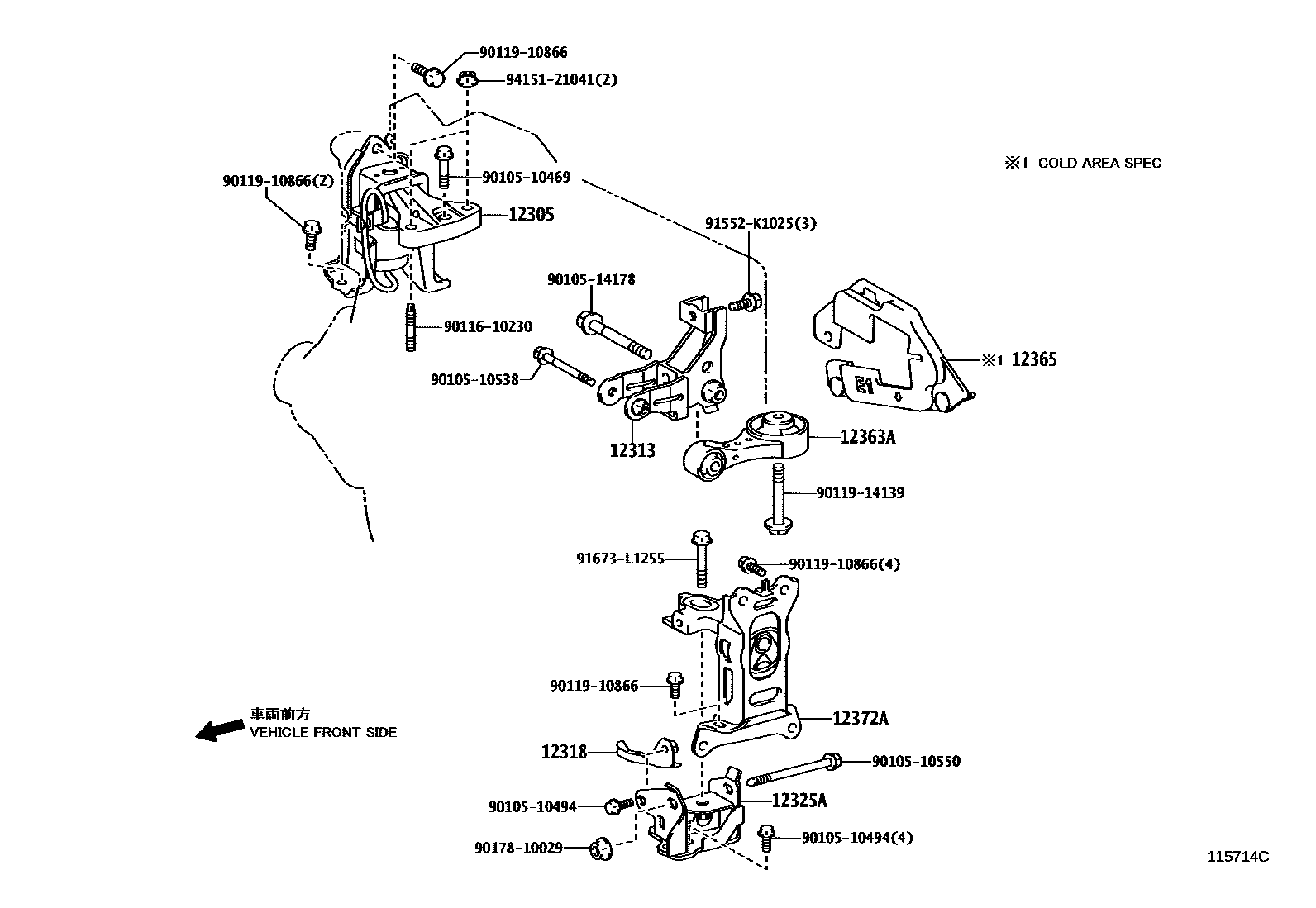

MOUNTING

0001 1 0002 1 0003 1 0004 1GAZOO RACING TUNED BY MN

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-40090i1KRFE..KGJ10200811-200901

main12305-40091i1KRFE..KGJ10200902

main12305-47021i1NRFE..NGJ10..6F201011

main12305-47050i1NRFE..NGJ10200908-200912

main12305-47020supersedes 12305-47051i1NRFE..NGJ10..CVFC200911-201002

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-40030i1NRFE..NGJ10..6F201011

main12313-40040i1KRFE..KGJ10200811

12318STAY, ENGINE MOUNTING, LH

main12318-40010i1NRFE..NGJ10..CVFC200908

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-40050i1KRFE..KGJ10200811

main12325-47060i1NRFE..NGJ10..6F201011

main12325-47070i1NRFE..NGJ10..CVFC200908

12363AROD, ENGINE MOVING CONTROL

main12363-40050i1KRFE..KGJ10200811

main12363-47010i1NRFE..NGJ10200908

12365COVER, ENGINE MOVING CONTROL ROD

main12365-40020i1KRFE..KGJ10200811

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-40060i1KRFE..KGJ10200811

main12372-47051i1NRFE..NGJ10..6F201011

main12372-47060i1NRFE..NGJ10..CVFC200908

9010510469

main90105-10469

9010510494

main90105-10494

9010510538

main90105-10538

9010510550

main90105-10550

9010514178

main90105-14178

9011610230

main90116-10230

9011910866

main90119-10866

9011914139

main90119-14139

9017810029

main90178-10029

91552K1025

main91552-K1025

91673L1255

main91673-L1255

9415121041

main94151-21041

19 parts on this diagram · 4 diagrams in section
