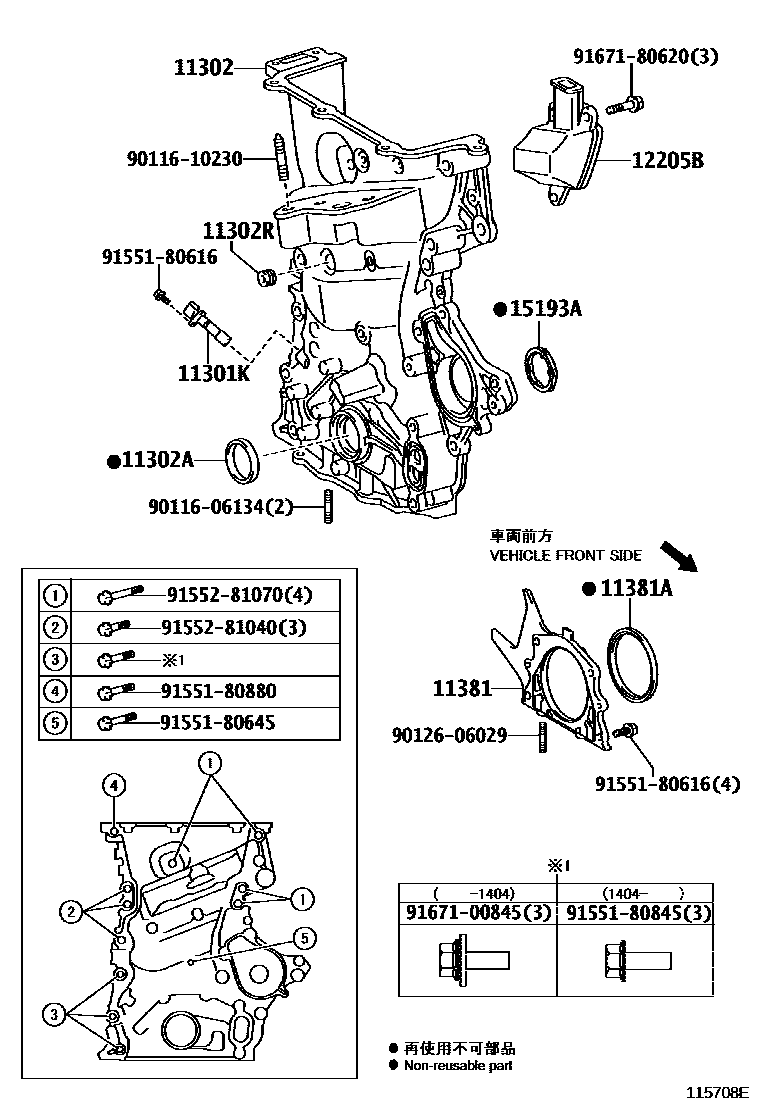

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1GAZOO RACING

11301KSENSOR, CRANK POSITION

main90919-05062i1KRFE..KGJ10200811

main90919-05073i1NRFE..NGJ10200908

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-40050i1KRFE..KGJ10200811

main11310-47021i1NRFE..NGJ10200908-201011

main11310-47022i1NRFE..NGJ10201011-201308

main11310-47023i1NRFE..NGJ10201308

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-25021i1NRFE..NGJ10201104-201303

main90311-25031i1NRFE..NGJ10200908-201104

main90311-25032i1NRFE..NGJ10201303

main90311-38091i1KRFE..KGJ10200811-200908

main90311-38092i1KRFE..KGJ10200908

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

main90344-53006i1KRFE..KGJ10200811

11381RETAINER, ENGINE REAR OIL SEAL

main11381-40020i1KRFE..KGJ10200811

11381ASEAL, ENGINE REAR OIL

main90311-73002i1KRFE..KGJ10200811-200908

main90311-73004i1KRFE..KGJ10200908-201212

main90311-73005i1KRFE..KGJ10201212

12205BCASE SUB-ASSY, VENTILATION

main12205-40010i1KRFE..KGJ10200811

15193AGASKET, OIL PUMP

main15193-40010i1KRFE..KGJ10200811

9011606134

main90116-06134

9011610230

main90116-10230

9012606029

main90126-06029

9155180616

main91551-80616

9155180645

main91551-80645

9155180845

main91551-80845

9155180880

main91551-80880

9155281040

main91552-81040

9155281070

main91552-81070

9167100845

main91671-00845

9167180620

main91671-80620

19 parts on this diagram · 3 diagrams in section
