ENGINE OVERHAUL GASKET KIT

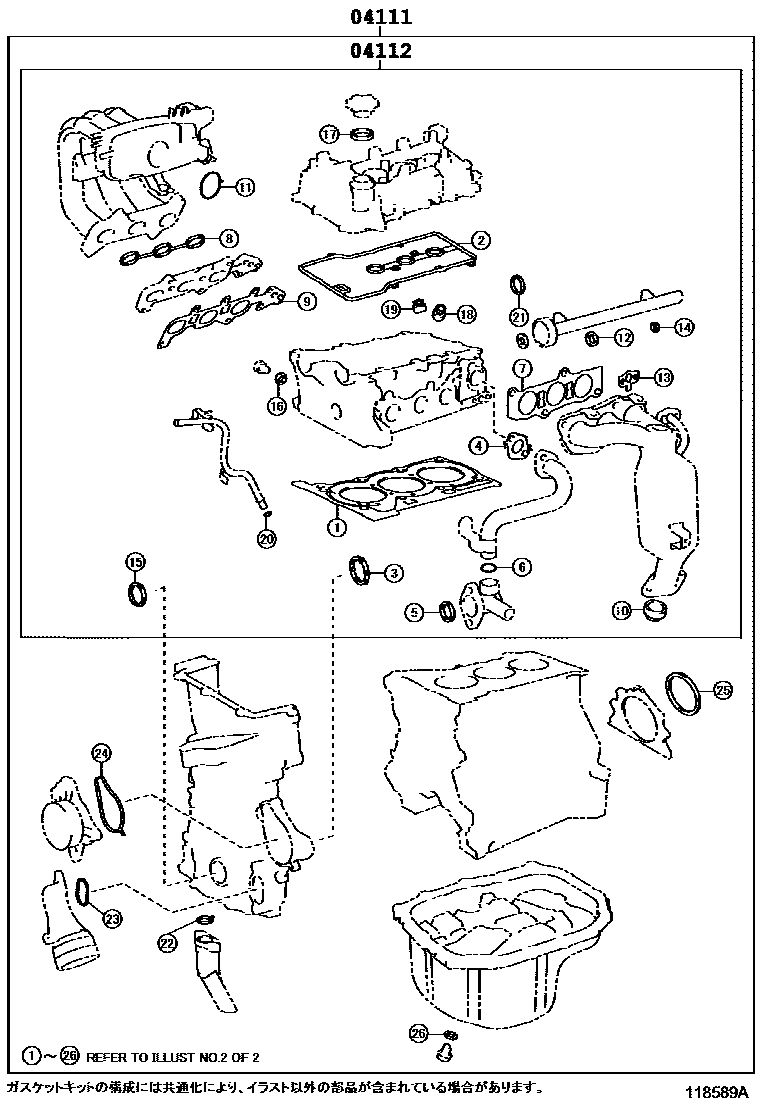

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-40110i200811-200908

main04111-40111i200908-201402

main04111-40112i201402-201403

main04111-40130i201403

main04111-47080i200908-201007

main04111-47082supersedes 04111-47210i201106-201205

main04111-47083i201205-201303

main04111-47092i201011-201106

main04111-47093i201106-201205

main04111-47094i201205-201303

main04111-47090supersedes 04111-47200i200911-201002

04112GASKET KIT, ENGINE VALVE GRIND

main04112-40060i200811-200908

main04112-40061i200908-201402

main04112-40062i201402-201403

main04112-40080i201403

main04112-47050i200908-201007

main04112-47051i201007-201106

main04112-47052i201106-201205

main04112-47053i201205-201312

main04112-47140i201312

2 parts on this diagram · 6 diagrams in section
