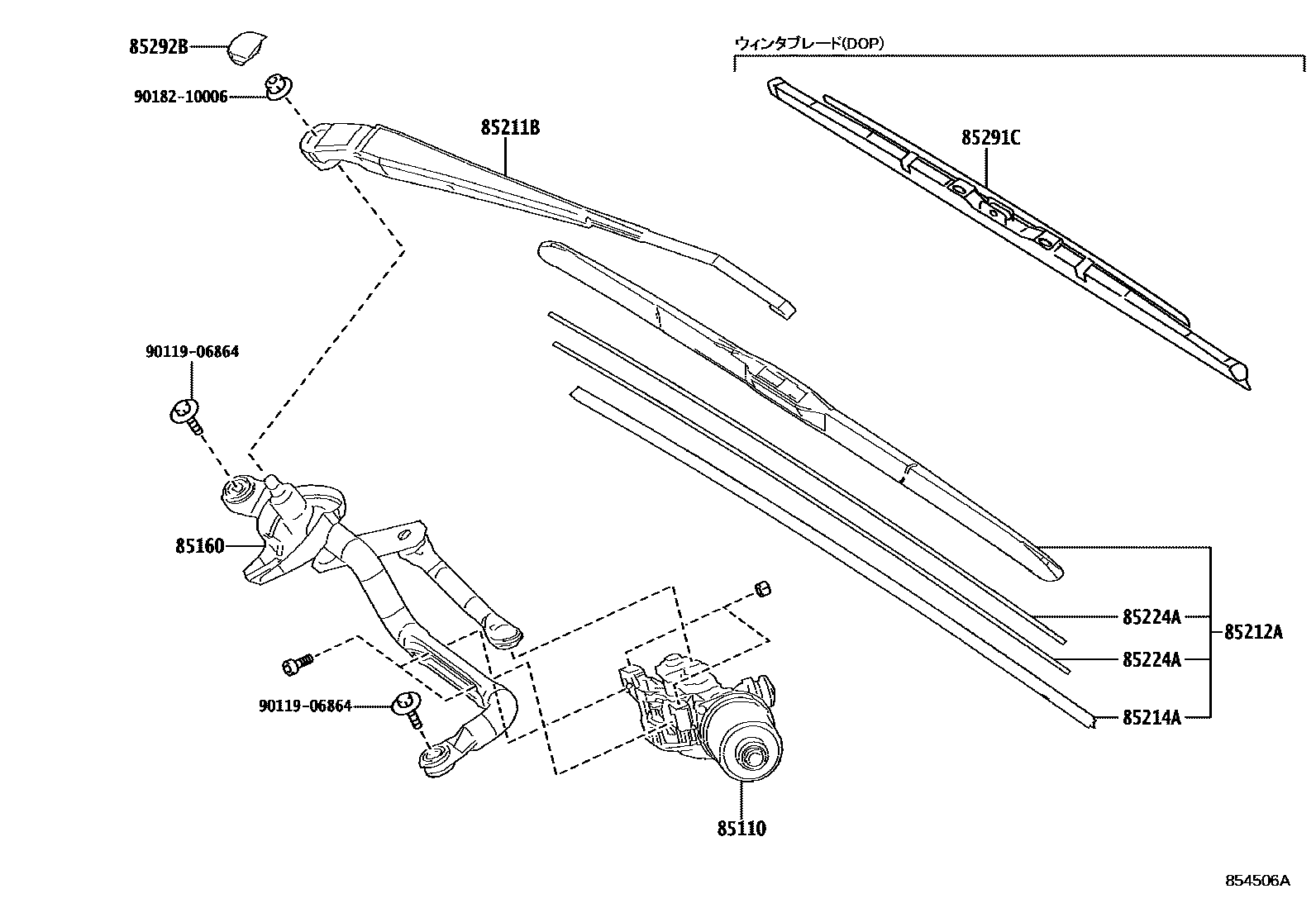

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-55030iRMV1#202012

85160LINK ASSY, WINDSHIELD WIPER

main85150-55030iRMV1#202012

85211BARM, FRONT WIPER, RH

main85211-55010iRMV1#202012

85212ABLADE, FR WIPER, RH

main85212-55010iRMV1#202012

85214ARUBBER, WIPER, RH

main85214-28080iRMV1#202304

main85214-52070iRMV1#202012-202304

sub85214-28080

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-55060iRMV1#202012

85291CBLADE, FRONT WIPER, WINTER, CENTER

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iRMV1#202012

9011906864

main90119-06864

9018210006

main90182-10006

10 parts on this diagram · 1 diagram in section
