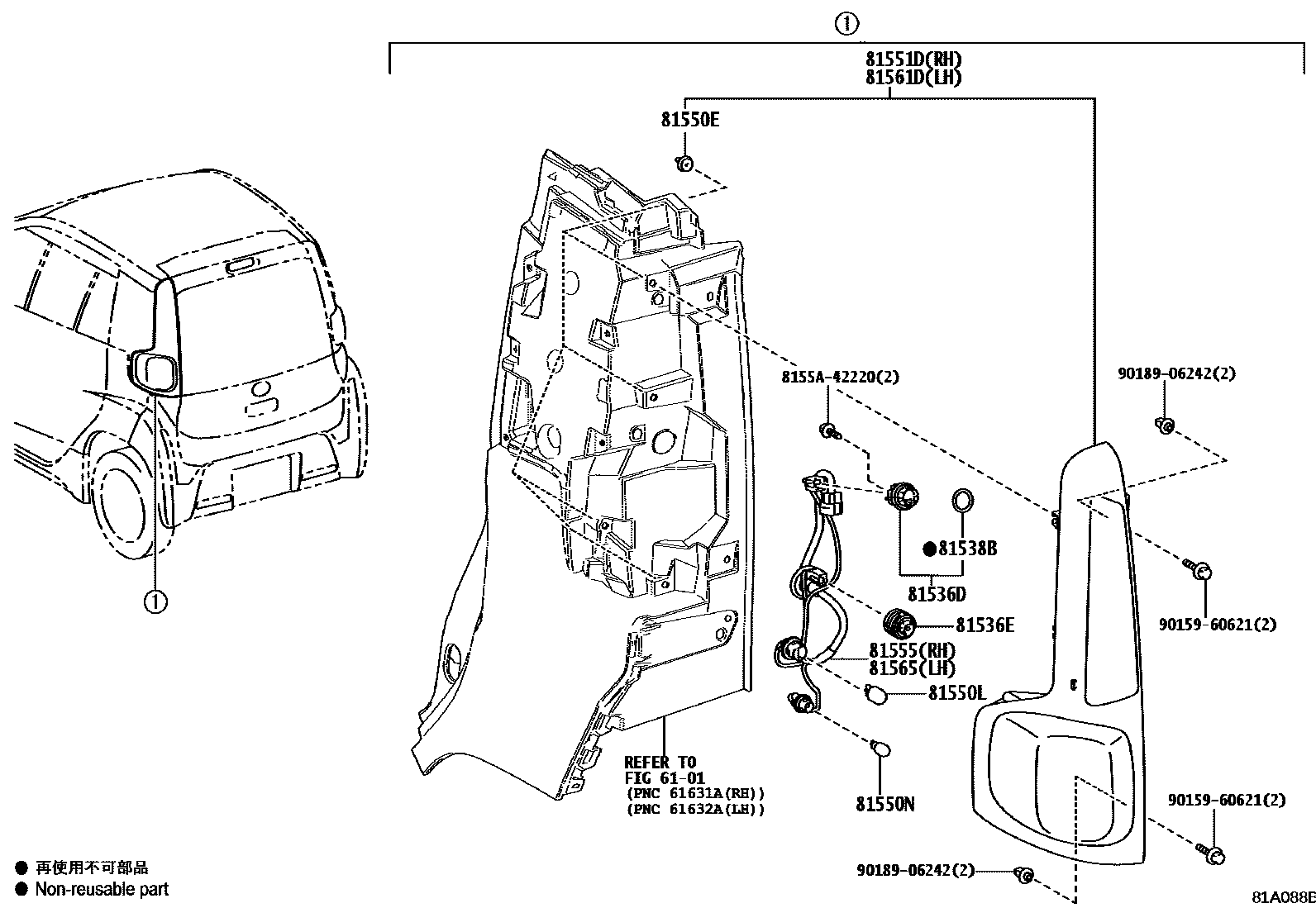

REAR COMBINATION LAMP

6101

81536DLED, TAILLAMP

main8158A-52410×2iRMV1#202012

81536ELED, STOP LAMP

main81536-52E60×2iRMV1#202012

81538BGASKET, REAR COMBINATION LAMP, NO.3 RH

main81538-42200×2iRMV1#202012

81550ECLIP(FOR REAR COMBINATION LAMP)

main90467-09233×8iRMV1#202012

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iRMV1#202012

81550NBULB, BACK UP LAMP

main90981-11059×2iRMV1#202012

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-55140iRMV1#202012

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-55140iRMV1#202012

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-55010iRMV1#202012

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-55140iRMV1#202012

8155A42220

main8155A-42220

9015960621

main90159-60621

9018906242

main90189-06242

14 parts on this diagram · 1 diagram in section
