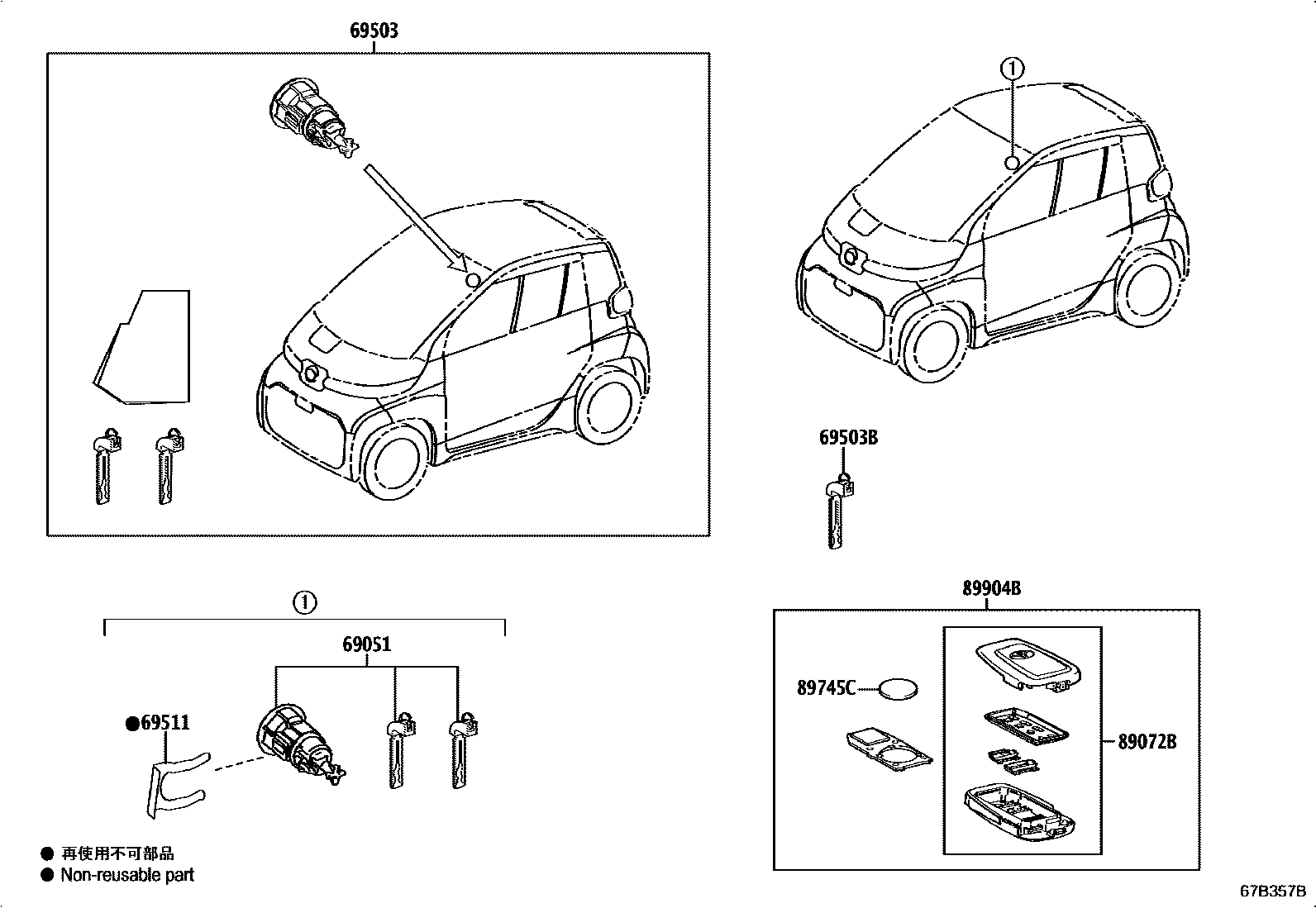

LOCK CYLINDER SET

0001 1��(��������) 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-55020supersedes 69051-55010iRMV1#202102

69503CYLINDER SET, LOCK

main69005-55010iRMV12..X202012

main69005-55020iRMV1#..G202012

main69005-55100iRMV1#202012

69503BKEY, CUT

main90999-00186×2iRMV1#..G; RMV12..X202012

main69515-16100×2iRMV1#202012

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-55010iRMV12202012-202101

main69511-55011iRMV1#202102

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-55010iRMV1#202012

89745CBATTERY, TRANSMITTER

main89745-50020iRMV1#202012

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-55010iRMV1#202012

7 parts on this diagram · 2 diagrams in section
