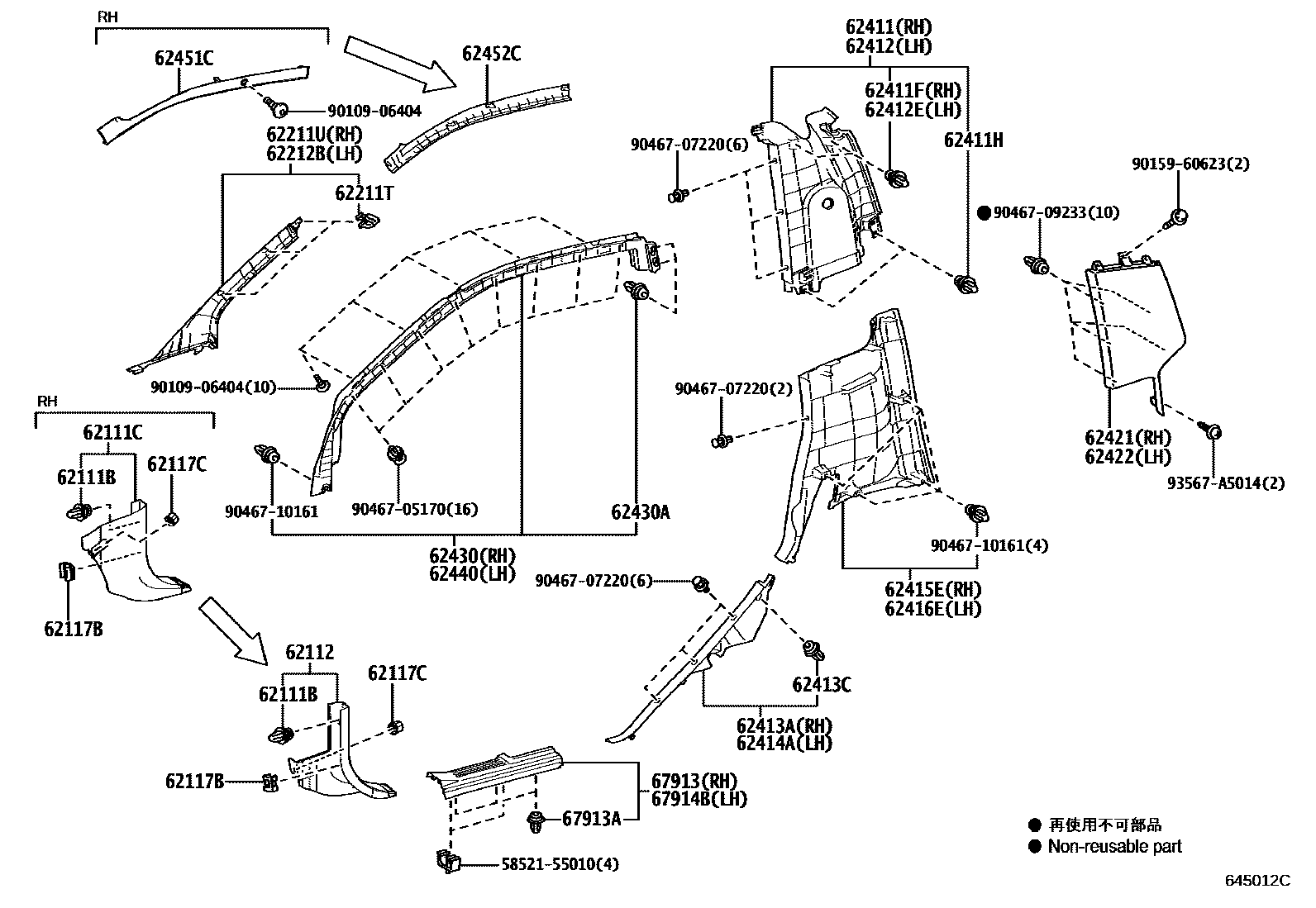

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM1#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM1#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62211TCLIP(FOR FRONT PILLAR GARNISH)
62211UGARNISH ASSY, FRONT PILLAR, RH
BLACK,TRIM1#
62212BGARNISH ASSY, FRONT PILLAR, LH
BLACK,TRIM1#
62411GARNISH, CENTER PILLAR, RH
BLACK,TRIM1#
62411FCLIP, CENTER PILLAR GARNISH, RH
62411HCLIP
62412GARNISH, CENTER PILLAR, LH
BLACK,TRIM1#
BLACK,TRIM1#
62412ECLIP, CENTER PILLAR GARNISH, LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#
BLACK,TRIM1#
62415EPANEL, CENTER PILLAR GARNISH, RH
BLACK,TRIM1#
62416EPANEL, CENTER PILLAR GARNISH, LH
BLACK,TRIM1#
62421COVER, CENTER PILLAR GARNISH, RH
62422COVER, CENTER PILLAR GARNISH, LH
62430GARNISH ASSY, ROOF SIDE RAIL, RH
BLACK,TRIM1#
62430ACLIP, ROOF SIDE RAIL GARNISH
62440GARNISH ASSY, ROOF SIDE RAIL, LH
BLACK,TRIM1#
62451CGARNISH, ROOF SIDE RAIL, REAR RH
BLACK,TRIM1#
62452CGARNISH, ROOF SIDE RAIL, REAR LH
BLACK,TRIM1#
BLACK,TRIM1#
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#
5852155010HOOK, MALE, NO.1
main58521-55010
9010906404
main90109-06404
9015960623
main90159-60623
9046705170
main90467-05170
9046707220
main90467-07220
9046709233
main90467-09233
9046710161
main90467-10161
93567A5014
main93567-A5014
36 parts on this diagram · 1 diagram in section
