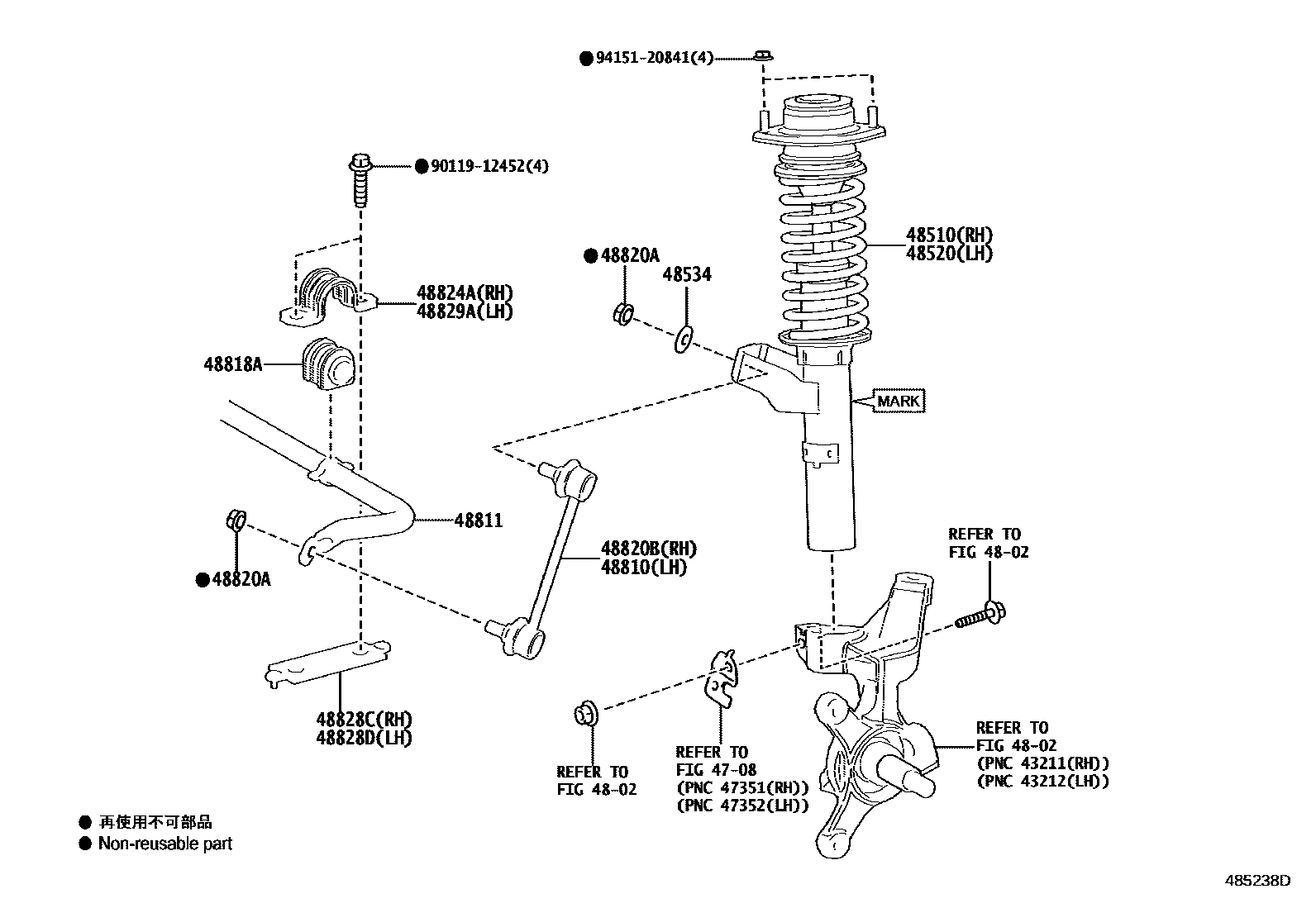

FRONT SPRING & SHOCK ABSORBER

4708

4802

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-55020iRMV1#202012

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-55020iRMV1#202012

48534PLATE, FRONT SHOCK ABSORBER UPPER BRACKET

main48534-55020×2iRMV1#202012

48810LINK ASSY, FRONT STABILIZER, LH

main48810-55010iRMV1#202012

48811BAR, STABILIZER, FRONT

main48811-55010iRMV1#202012

48818ABUSH, STABILIZER, FRONT

main48818-78040×2iRMV1#202012

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151×4iRMV1#202012

48820BLINK ASSY, FRONT STABILIZER, RH

main48810-55010iRMV1#202012

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48832-42010iRMV1#202012

48828CBRACKET, FRONT STABILIZER, LOWER RH

main48828-55010iRMV1#202012

48828DBRACKET, FRONT STABILIZER, LOWER LH

main48828-55010iRMV1#202012

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48832-42010iRMV1#202012

9011912452

main90119-12452

9415120841

main94151-20841

16 parts on this diagram · 1 diagram in section
