Toyota 100110 — PARKING BRAKE & CABLE
46210BPEDAL ASSY, PARKING BRAKE
46252PAD, PARKING PEDAL
46341EQUALIZER, PARKING BRAKE
46355SUPPORT, EQUALIZER
46410CABLE ASSY, PARKING BRAKE, NO.1
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46451BRACKET, CABLE SUPPORT
46452BBRACKET, CABLE SUPPORT, NO.2
46453ABRACKET, CABLE SUPPORT, NO.3
46454ABRACKET, CABLE SUPPORT, NO.4
46501CPLATE, PARKING BRAKE SUPPORT
5806CONSOLE BOX & BRACKET
8401SWITCH & RELAY & COMPUTER
9017706003
9017906274
9018906018
9046806017
9046808001
9155180814
91611G0612
9167380614
9354056016
9415180600
9415180800
9415181000

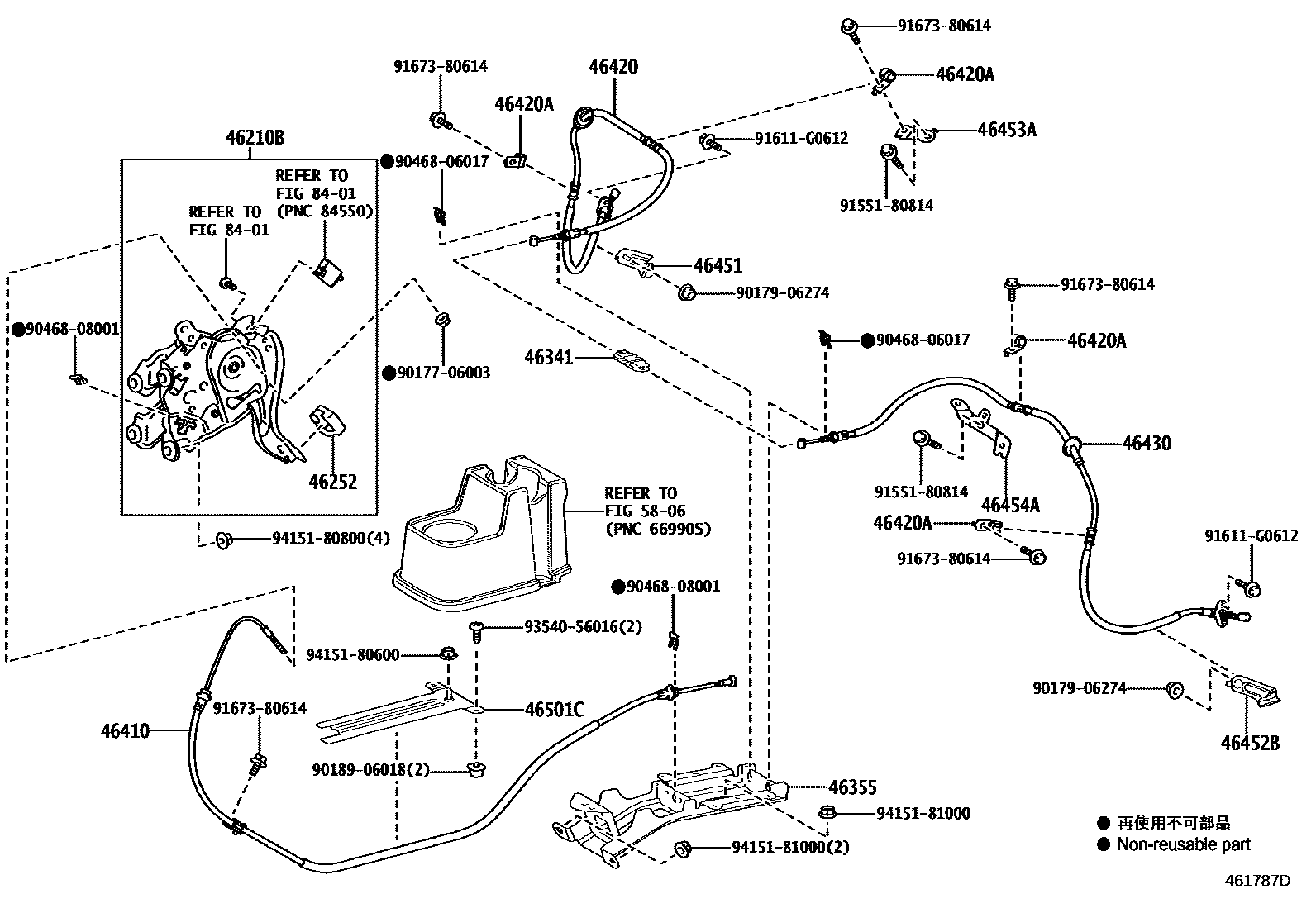

27 parts on this diagram · 1 diagram in section
PARKING BRAKE & CABLE for Toyota 100110
This section contains 27 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota 100110. Key components include: PEDAL ASSY, PARKING BRAKE, PAD, PARKING PEDAL, EQUALIZER, PARKING BRAKE, SUPPORT, EQUALIZER, CABLE ASSY, PARKING BRAKE, NO.1.
