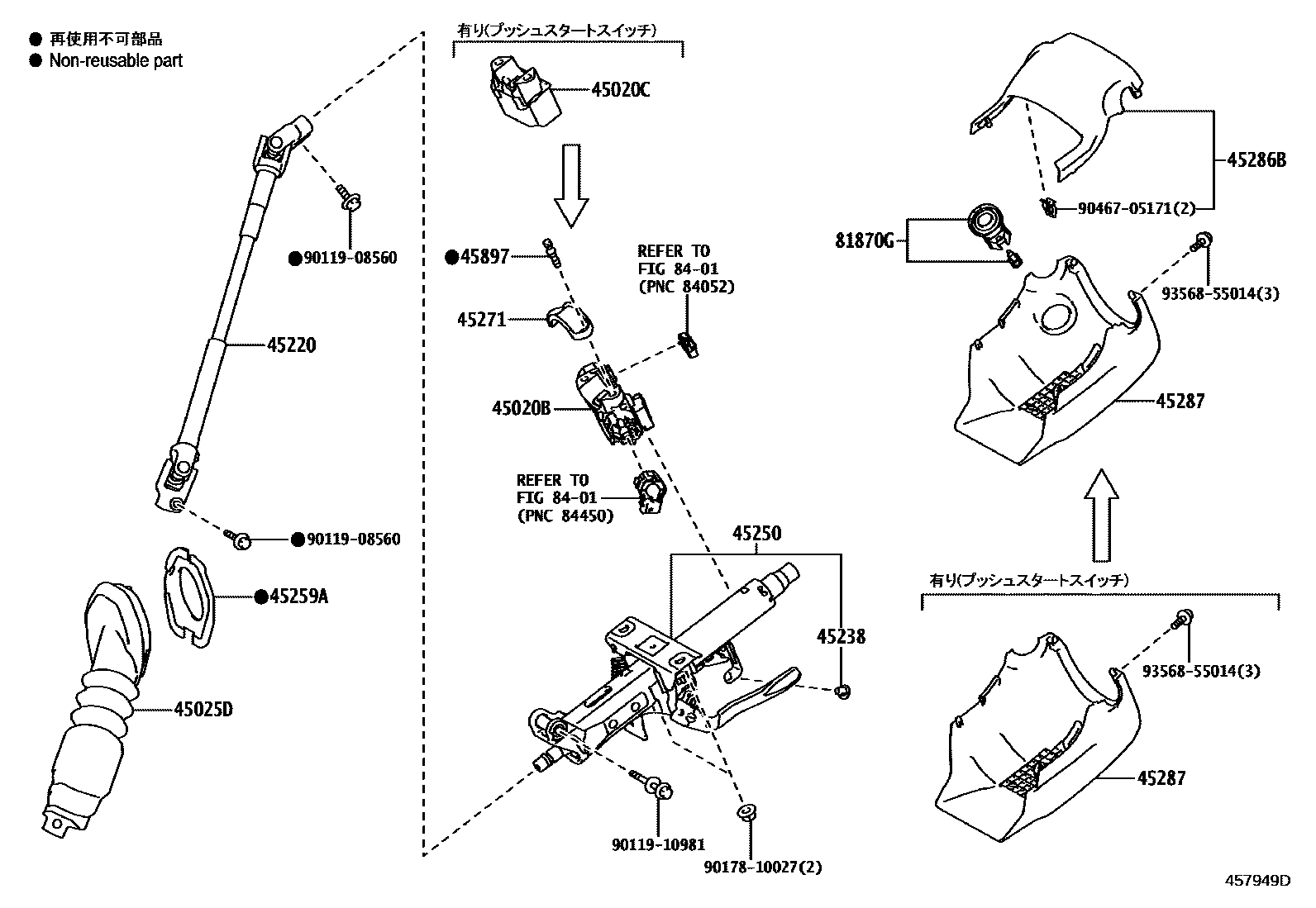

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45220SHAFT ASSY, STEERING INTERMEDIATE
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45250COLUMN ASSY, STEERING
45259ASHEET, COLUMN HOLE COVER SILENCER
45271CLAMP, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45897BOLT, STEERING LOCK SET
81870GCOVER, KEY CYLINDER
8401
9011908560
main90119-08560
9011910981
main90119-10981
9017810027
main90178-10027
9046705171
main90467-05171
9356855014
main93568-55014
18 parts on this diagram · 1 diagram in section
