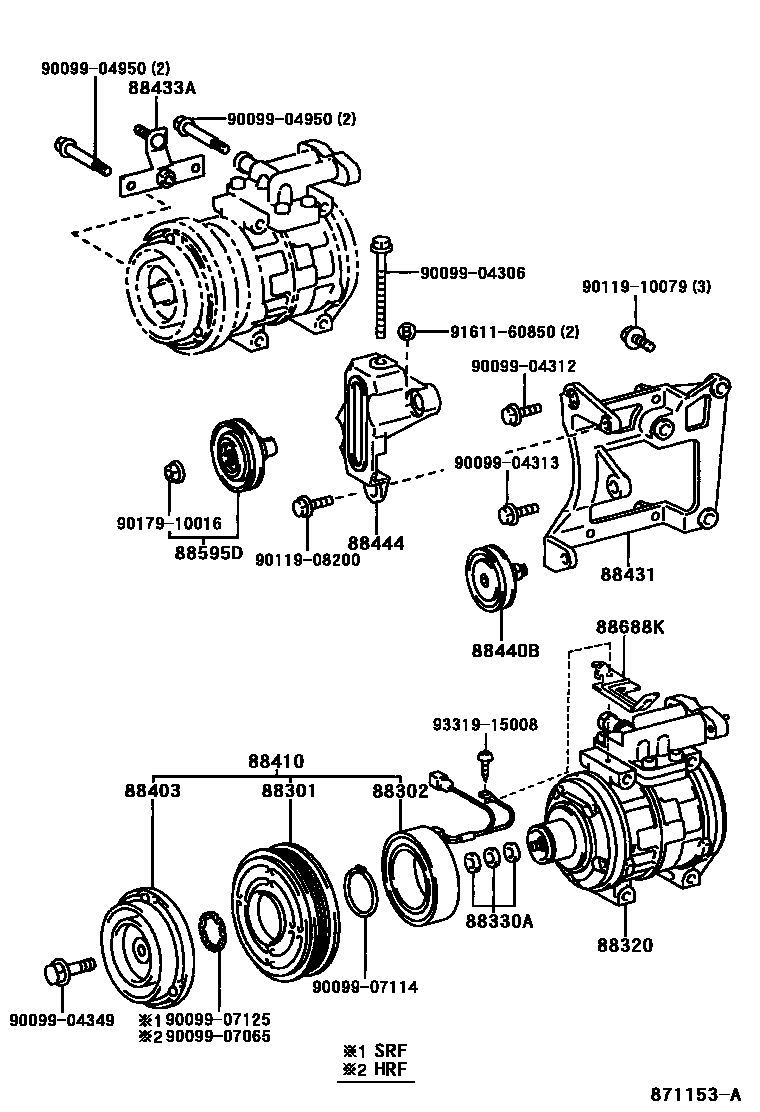

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-26030iBXD20199610

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-60090iBXD20199610

88320COMPRESSOR ASSY, COOLER

main88320-65020iBXD20199610

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iBXD20199610

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iBXD20199610

88410CLUTCH ASSY, MAGNET

main88410-37020iBXD20..SRF199610

main88410-65020iBXD20..HRF199612

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-37020iBXD20199610

88433ASTAY, COMPRESSOR

main88433-65020iBXD20199610

88440BPULLEY ASSY, IDLE

main44350-36040iBXD20199610

88444BRACKET, IDLE PULLEY

main88444-37020iBXD20199610

88595DPULLEY ASSY, IDLE

main88440-12160iBXD20199610

88688KBRACKET, COOLER COMPRESSOR

main88688-2D770iBXD20..HRF199612

main88688-37320iBXD20..SRF199612

9009904306

main90099-04306

9009904312

main90099-04312

9009904313

main90099-04313

9009904349

main90099-04349

9009904950

main90099-04950

9009907065

main90099-07065

9009907114

main90099-07114

9009907125

main90099-07125

9011908200

main90119-08200

9011910079

main90119-10079

9017910016

main90179-10016

9161160850

main91611-60850

9331915008

main93319-15008

25 parts on this diagram · 2 diagrams in section
