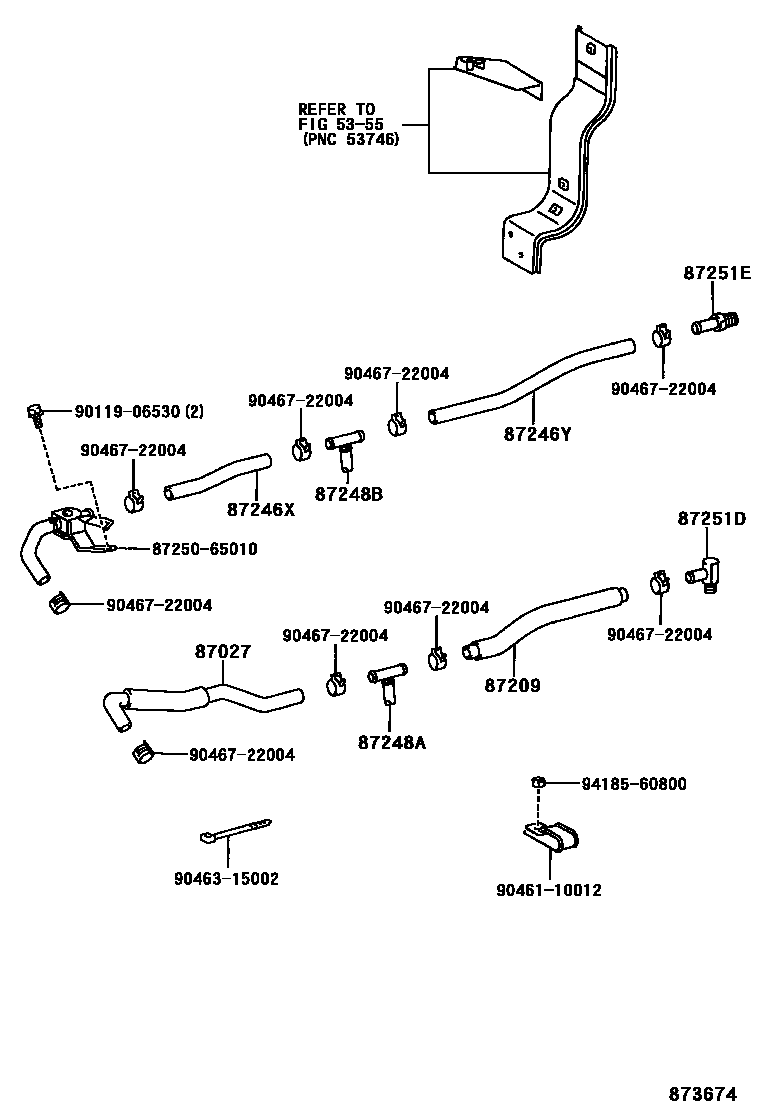

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1REAR

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

87027HOSE SUB-ASSY, WATER, NO.2

main87027-65010iBXD20199610

87209HOSE SUB-ASSY, WATER

main87209-65020iBXD20199610

L=360

87246XHOSE, HEATER WATER

main87242-65020iBXD20199610

87246YHOSE, HEATER WATER

main87243-65020iBXD20199610

L=500

87248APIPE, HEATER WATER INLET, A

main87248-95400iBXD20199610

87248BPIPE, HEATER WATER INLET, B

main87248-95400iBXD20199610

87251DJOINT, WATER, NO.1

main87251-30230iBXD20199610-199703

main87251-36020iBXD20199703

87251EJOINT, WATER, NO.2

main87251-30200iBXD20199610

8725065010HOSE AND VALVE ASSY

main87250-65010

9011906530

main90119-06530

9046110012

main90461-10012

9046315002

main90463-15002

9046722004

main90467-22004

9418560800

main94185-60800

15 parts on this diagram · 2 diagrams in section
