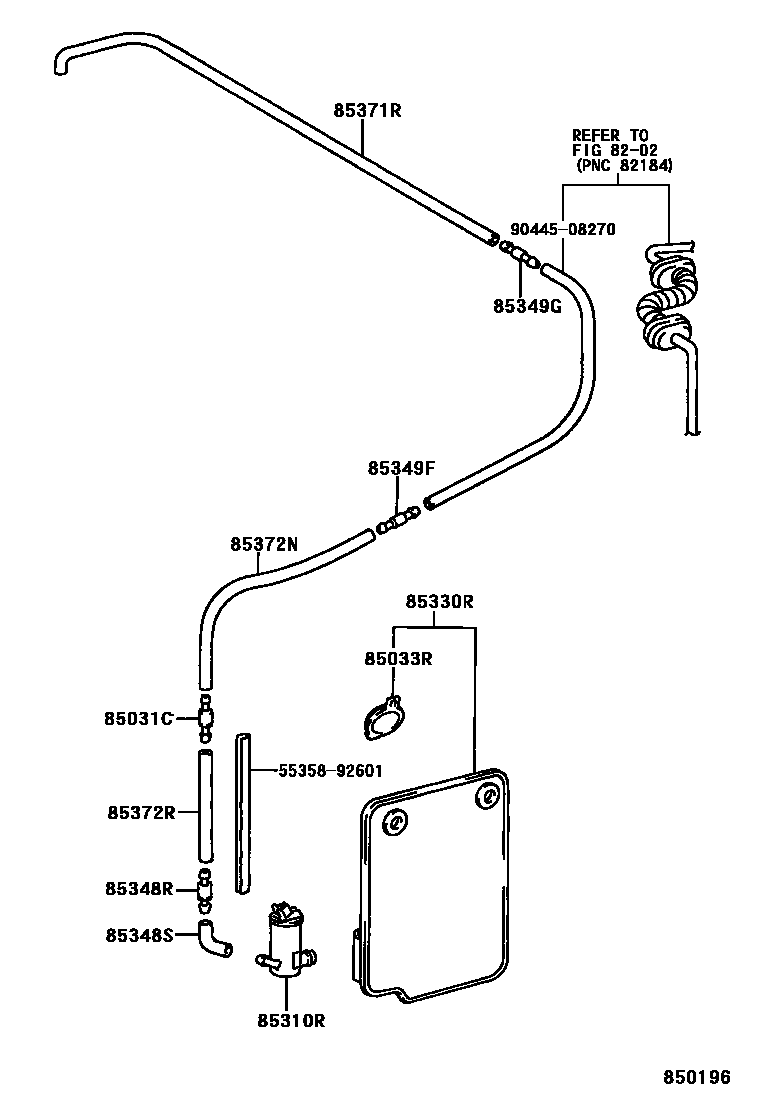

REAR WASHER

8202WIRING & CLAMP

85031CVALVE SUB-ASSY, WASHER

85033RCAP ASSY, REAR WASHER

85310RMOTOR ASSY, REAR WASHER

85330RJAR ASSY, REAR WASHER

85348RJOINT, REAR WASHER HOSE, NO.1

85348SJOINT, REAR WASHER ELBOW, NO.1

85349FJOINT, REAR WASHER HOSE, NO.1

85349GJOINT, REAR WASHER HOSE, NO.2

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

L=1800(*H,L=660)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

L=1800(*H,L=300)

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

L=1000(*H,L=100)

5535892601PLATE, WATER PROOF

9044508270

14 parts on this diagram · 1 diagram in section
