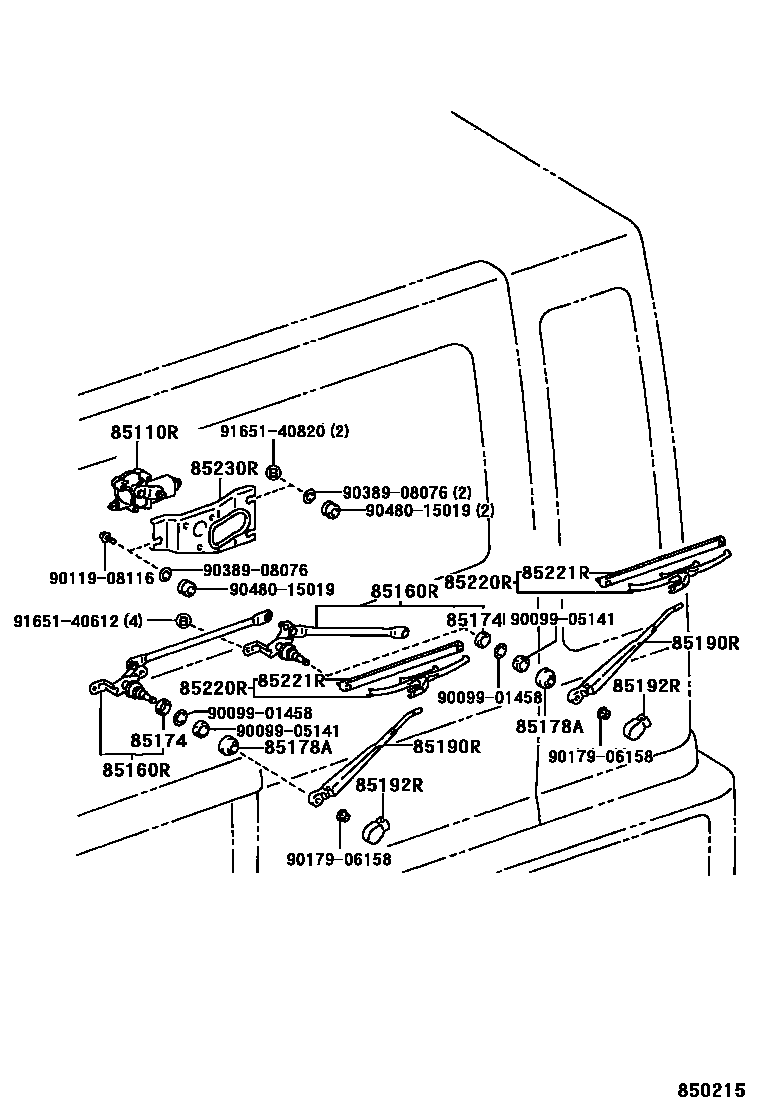

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-65040iBXD20..SRF199610

85160RLINK ASSY, REAR WIPER

main85170-65010iBXD20..SRF199610

RH

main85170-65020iBXD20..SRF199610

LH

85174PACKING, WIPER LINK

main85174-12320×4iBXD20..SRF199610

85178ACAP, WIPER LINK

main85178-12320×2iBXD20..SRF199610

85190RARM ASSY, REAR WIPER

main85190-91705×2iBXD20..SRF199610

85192RCOVER, REAR WIPER ARM

main85192-14020×2iBXD20..SRF199610

85220RBLADE ASSY, REAR WIPER

main85220-91704×2iBXD20..SRF199610

85221RBLADE, REAR WIPER

main85221-91702×2iBXD20..SRF199610

85230RBRACKET ASSY, REAR WIPER

main85230-65010iBXD20..SRF199610

9009901458

main90099-01458

9009905141

main90099-05141

9011908116

main90119-08116

9017906158

main90179-06158

9038908076

main90389-08076

9048015019

main90480-15019

9165140612

main91651-40612

9165140820

main91651-40820

17 parts on this diagram · 1 diagram in section
